BirdDog Mini HDMI to NDI Encoder/Decoder | BDMINIHDMI
- Description
- Specifications
-

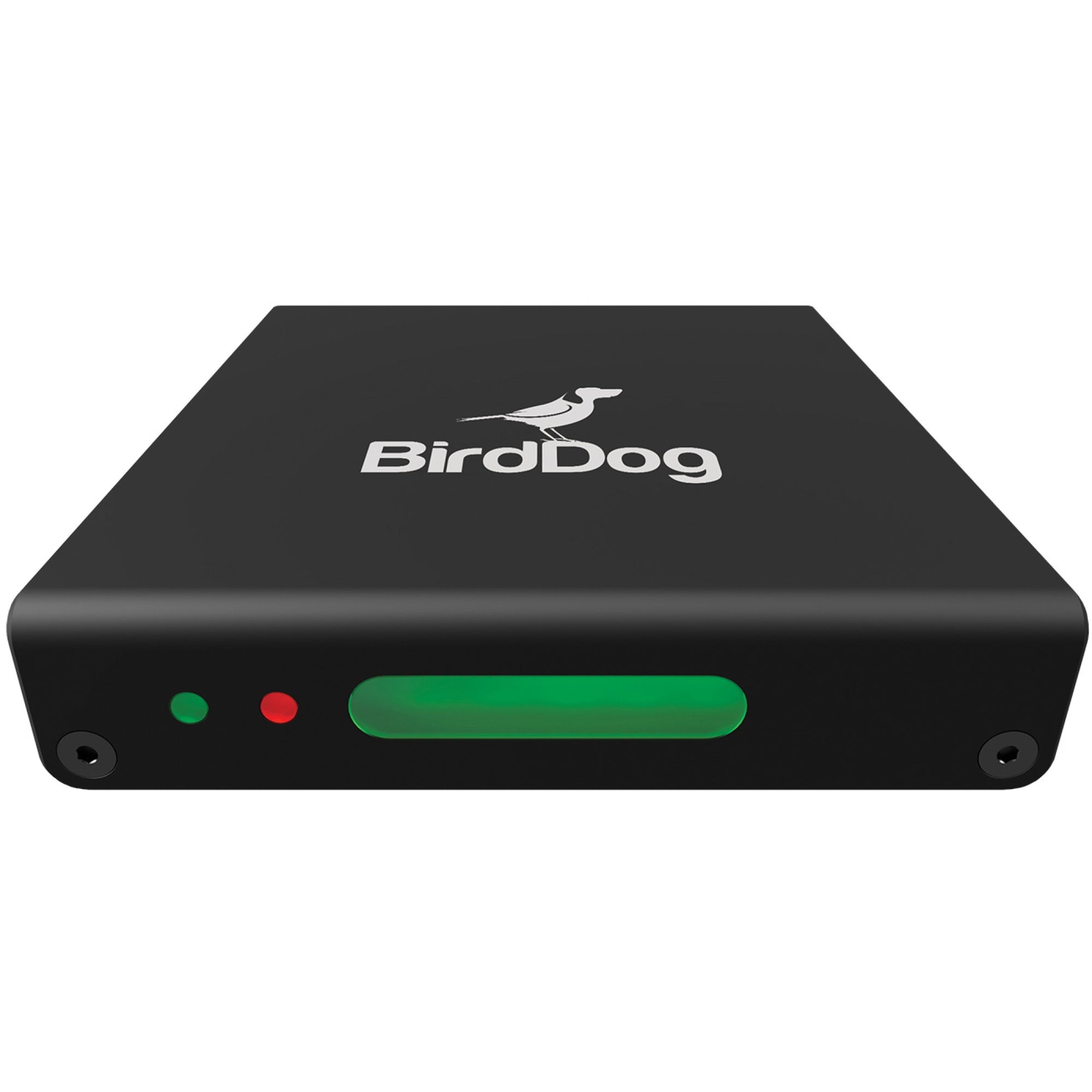

BirdDog Mini HDMI to NDI Encoder/Decoder
Audio Comms
By harnessing the true power of NDI BirdDog have made the world’s first Audio Intercom system with live video windows. Now you can see live the camera feeds and arrange all your Comms on a simple Windows 10 computer meaning you can even use a touchscreen enabled device for true interactivity.
BirdDog Central
BirdDog Central is the fastest and most convenient way to get content to TV’s and screens ever. Simply attach BirdDog Mini or Studio NDI to your screen, plug it into a PoE switch, HDMI into the screen and you can play content to that screen from any BirdDog encoder using BirdDog Link. You can also use the BirdDog media player to play out any video file on your computer. -
Specification Details Video Formats (HD) 1080p 23.98, 25, 29.97, 50, 59.94; 1080i 25, 29.97; 720p 50, 59.94; (SD) 525i, 625i Video Input 1 x HDMI Standard Type A connector, HDMI v1.4a, RGB or YCbCr Video Output 1 x HDMI Standard Type A connector, HDMI v1.4a, RGB or YCbCr Audio Digital 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous Audio Analog 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous Video Codec Support Realtime, ultra-low latency, full-bitrate NDI (i-frame) Display Bicolor Tally (Red/Green); Multicolour status information; Full status on HDMI output (Selectable) Network Interface 10/100/1000 Ethernet (RJ-45) with PoE; Embedded web configuration panel for control and firmware updates User Interface Controls Network, Video, Tally, Audio, and Comms settings Dimensions 98x110x22mm Weight 200g Power 100-240V, 50/60 Hz Universal Input; +5-18V DC 7W Max; Power over Ethernet (PoE) 802.3af/at
