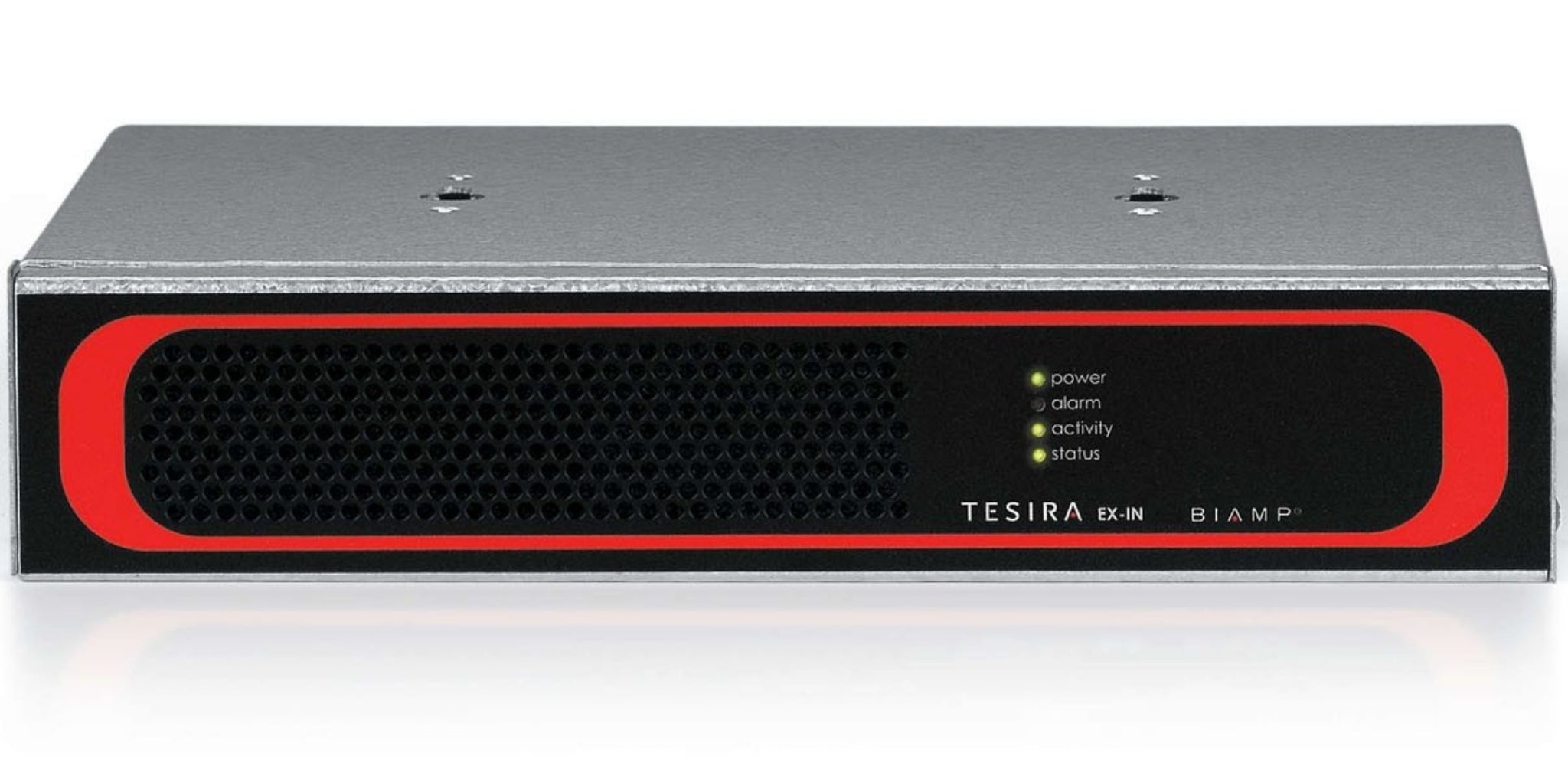

BIAMP Tesira EX-IN 4-Channel Mic/Line Input Expander | 911.0308.900

• Description
• Specifications

• BIAMP Tesira EX-IN 4-Channel Mic/Line Input Expander


  Key Features
  Four channels of balanced microphone or line level input
  0 – 66 dB gain, adjustable in 6 dB increments
  +48 volts Phantom Power
  -100 to +12 dB fader range for level
  Audio and control networking over AVB/TSN
  Powered by PoE+
  Plug-in barrier strip connectors
  Front panel LEDs for device status indications
  Half-rack chassis
  RoHS compliant and AES grounded
  5-year warranty
  Compliant with the US Trade Agreement Act (TAA)


  The Tesira EX-IN is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-IN is a 4-channel mic or line level audio input expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control, and is powered by PoE+.
  The Tesira EX-IN complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

• Attribute	Details
  Height	1.75 inches (44 mm)
  Width	8.5 inches (216 mm)
  Depth	7.75 inches (197 mm)
  Weight	3 lbs (1.4 kg)
  Operating Temp	32 – 104°F (0 – 40°C)
  Humidity	0-95% RH (non-condensing)
  Altitude	0-10,000 ft (0-3000m) MSL
  Power	PoE+ (IEEE 802.3at Class 4, 30W)
  Phantom Power	+48 VDC (7mA/input)
  Audio	4-channel analog audio input expander
  Impedance	8kΩ (balanced)
  Input Gain Range	0 – 66dB (6dB steps)
  Max Input	+24dBu
  Output Impedance	200Ω (balanced)
  Max Output	+24dBu
  THD+N	< 0.006% @ 0dB Gain, +4dBu In
  Frequency Response	20Hz – 20kHz @ +4dBu, +0/-0.25dB
  Dynamic Range	> 108dB (20Hz~20kHz)
  Crosstalk	< -85dB @ 0dB Gain, +4dBu In
  Sampling Rate	48kHz
  A/D Converters	24-bit
  Certifications	FCC, CE, UL, RCM, EAC, RoHS, TAA Compliant
