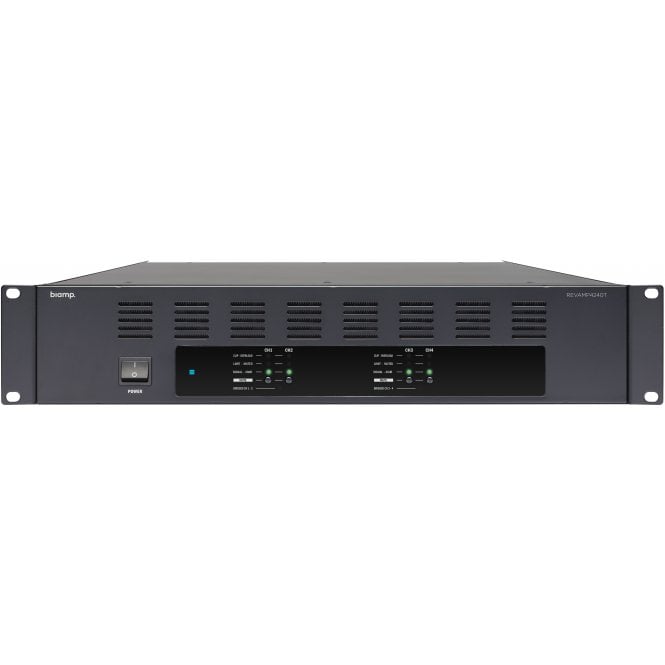

• BIAMP REVAMP4240T 4-Channel 100V Bridgeable Digital Power Amplifier – 4 x 240W

  REVAMP4240T is a professional 4-channel digital power amplifier with 4 x 240 watt output power @ 100 volt, but the unit is also bridgeable to 2 x 480 watts @ 100 volt. The unit incorporates a high efficient SMPS power supply and outputs with efficient Class D output topology.

  REVAMP4240T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.

  In order to match each input to its respective source the input sensitivity can be adapted to your needs.

  The input stage also features a build-in 250 Hz HP-filter to optimise the system for use on horn speakers whenever you would need this. Each pair of outputs can be bridged to give you 2 x 480 watts of output power!

  The very intuitive front display shows what is going on with one blink of an eye. The output power is constantly under control thanks to our own made limiter that prevents annoying pumping limiter sound but yet keeps the system fully under control and you still have that dynamic sound.

  Ease of use, high-tech, reliability and a wide versatility has never been as cleverly combined as in this REVAMP4240T amplifier.

• Specification	Details
  Dynamic Output Power (4 ohms)	4 x 240 watts
  Dynamic Output Power (8 ohms)	4 x 120 watts
  Dynamic Output Power Bridged (8 ohms)	2 x 480 watts
  Output Power RMS (100 volts)	4 x 240 watts
  Minimum Impedance Load per Channel	4 ohms
  Power Consumption (max)	1050 watts
  Height – Rack Units	2 U (1U = 44 mm)
  Depth (incl front)	338 mm
  Power Supply Technology	2 x Switching Mode Power Supply
  Output Channels	4
  Line Input Unbalanced	4
  Power Amp Topology	Class-D
  Cooling System	Fan
  Applicable Low Impedance	Yes
  RMS Output Power (4 ohms)	4 x 240 watts
  RMS Output Power (8 ohms)	4 x 120 watts
  Output Power RMS Bridged (8 ohms)	2 x 480 watts
  Output Power RMS Bridged (100 volts)	2 x 480 watts
  Minimum Impedance Load Bridged per Channel	8 ohms
  19″ (483 mm wide) Rack Mounting	Yes
  Depth (build in)	330 mm
  Power Supply	115 – 230 VAC
  Output Voltage Tappings	100 – 70 – 50 – 35 volts – 4 ohms
  Line Input Balanced	4
  Channel Separation	> 68 dB @ 1 kHz
  Frequency Response	50 – 20 k Hz
  Applicable in 100V	Yes
  Net Weight	16.70 kg
