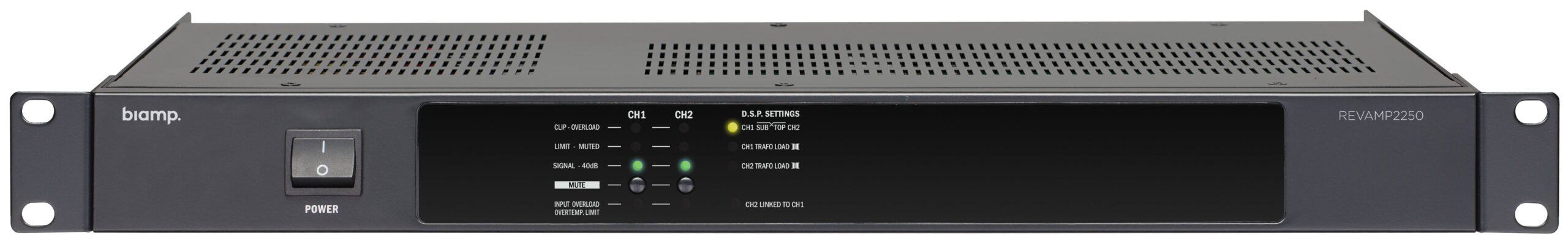

• BIAMP REVAMP2250 2-Channel Bridgeable Digital Power Amplifier, 2 x 250W, 4ohm

  REVAMP2250 is a professional 2-channel digital power amplifier with 2 x 350 watts output power @ 4 ohms, but is also bridgeable (1 x 700 watts @ 8 ohms). The unit incorporates a high efficient SMPS power supply and outputs with efficient Class D output topology.

  The digital signal processor inside operates with one simple push button at the back of the unit to select an operating mode (6 presets). An example of a preset is the combination CH1 subwoofer and CH2 trafo load.  In this example you have a low-pass filter for increased stability when using 100 volt transformers on the output, allowing you to use 100 volt speakers as top speakers combined with a standard low impedance subwoofer.

  With the other presets channels can be bridged, high pass filters can be applied to a channel…

  The very intuitive front display shows what is going on with one blink of an eye. Thanks to our own designed automatic protection system (patent pending) with smart use of a compressor/limiter topology we bring our switched mode power supply to an unexpected high level! This manifests itself in a great dynamic power with an unseen musicality and exceptional dynamic sound.

  Ease of use, high-tech, reliability and big output power has never been as cleverly combined as in this REVAMP2250 amplifier.

• Specification	Value
  Dynamic Output Power (4 ohms) in Watts	2 x 350
  Dynamic Output Power (8 ohms) in Watts	2 x 175
  Dynamic Output Power Bridged (8 ohms) in Watts	700
  Minimum Impedance Load per Channel (ohms)	4
  Power Consumption (Max) in Watts	600
  Height – Rack Units (1U=44 mm)	1 U
  Depth (incl. Front) in mm	239
  Power Supply Technology	Switching Mode Power Supply
  Line Input Balanced	2
  Channel Separation	> 74 dB @ 1 kHz
  Frequency Response (Hz)	10 – 24 k
  Applicable Low Impedance	Yes
  RMS Output Power (4 ohms) in Watts	2 x 250
  RMS Output Power (8 ohms) in Watts	2 x 125
  Output Power RMS Bridged (8 ohms) in Watts	500
  Minimum Impedance Load Bridged per Channel (ohms)	8
  19″ (483 mm Wide) Rack Mounting	Yes
  Depth (Build-in) in mm	230
  Power Supply	115 – 230 VAC
  Output Channels	2
  Line Input Unbalanced	2
  Power Amp Topology	Class-D
  Cooling System	Convection
  Net Weight Product (kg)	3.10
