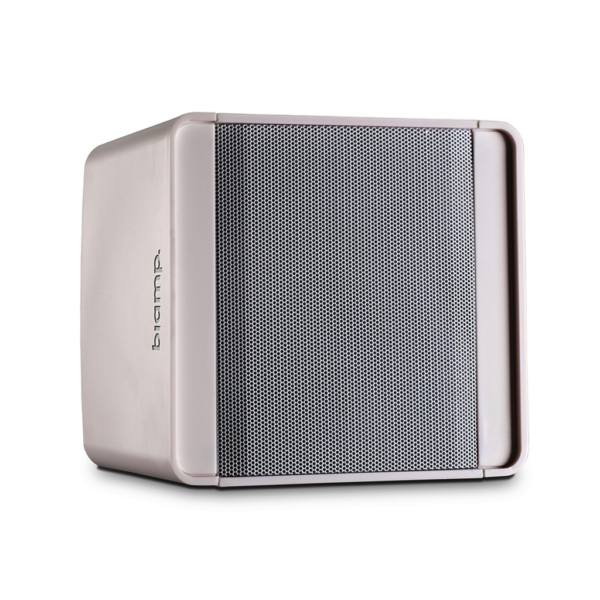

Biamp Desono KUBO5-W Compact Design Two-way Loudspeaker | 8ohms / 80watts
KUBO5 is a 5.25” two-way loudspeaker with integrated bass reflex port providing a dynamic and fast bass response. The unseen original and timeless KUBO cabinet produces 80 watts dynamic power at 8 ohms. Multiple KUBO loudspeakers can easily be daisy chained via the in & link connection with euroblock connectors. The K-Mount bracket & fixing K-bolts offer a safe and comfortable loudspeaker hook-up. The easy cable management and 140° vertical or horizontal mounting possibility allows you to install the KUBO5 everywhere on any type of wall or ceiling. The intuitive endcaps are very installer-friendly and are kept in place by 14 integrated strong neodymium magnets, hiding all connections and bracket hardware on both sides.
Available in black or white.
-
Feature Specification Height 155 mm (6.1″) Width 164 mm (6.4″) Depth 136 mm (5.3″) Weight 1.7 kg (3.7 lbs) Mounting Mounting Provisions: U-bracket Accessories Included: U-bracket, safety cable. Optional: LRABAS(-BL/-W) (Basic light rail adaptor, black or white), LRAPRE(-BL/-W) (Premium light rail adaptor, black or white) Recommended Amplifiers 50W – 100W @ 8Ω (20V – 28V) Operating Environment Indoor Power Continuous Power Handling @ Nominal Impedance: 20V 50W @ 8Ω (200W peak) Loudspeaker System Protection 3-step self-resetting protection Operating Mode Passive Operating Range (-10dB) 115 Hz to 20 kHz Beamwidth Nominal Beamwidth (H x V): 70° x 70° Transducers LF: 1 x 5.25″ (133 mm) coated paper cone, HF: 1 x 1″ (25 mm) soft dome Sensitivity Nominal Sensitivity @ 1m: @ 1W, 84 dB @ 2.83V, 84 dB Input Type Input Connection: (2x) 2-way Euroblock connectors for daisy-chaining; connectors accept up to 12 AWG (2.5 mm²) conductors Zoom Zoom Certified Certifications . Environmental Ratings IP40 per IEC 60529 -
