BIAMP Impera Tango Controller | 910.1880.900

  • Description
  • Specifications
  • Downloads

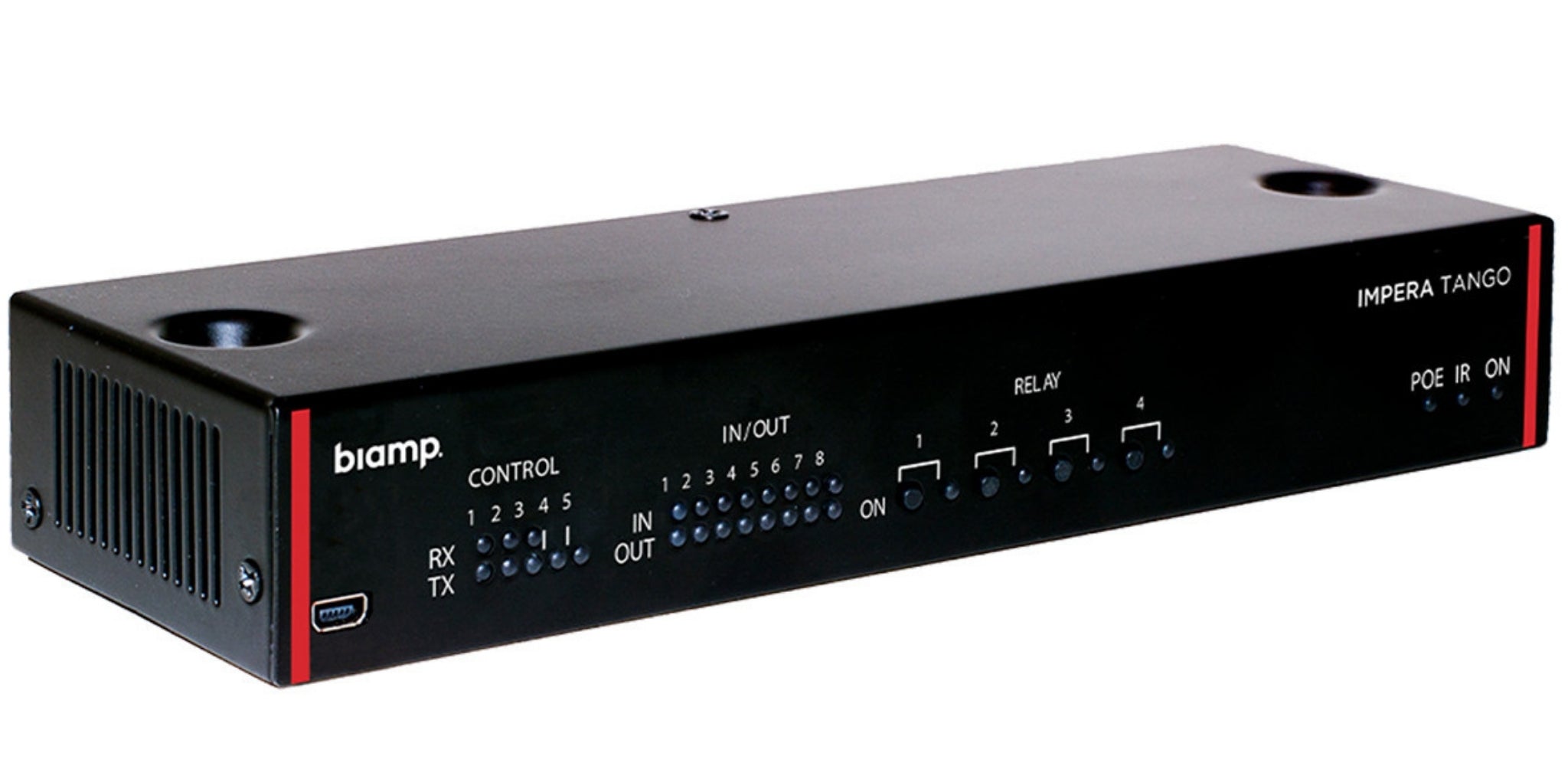

  • BIAMP Impera Tango Controller

    Touch panel controller with 3 bidirectional RS-232 ports, 2 unidirectional RS-232 ports, 4 built-in assignable relays, 8 GPIO; PoE powered (IEEE 802.3at Class 3, 15W).

    Key Features
    Programmed via Project Designer software
    Three bidirectional RS-232 ports or six IR ports
    Two unidirectional RS-232 ports or four IR ports
    Four built-in assignable relays
    Eight GPIO for control of relays, switches, and sensors
    PoE powered (IEEE 802.3at Class 3, 15 watts)
    5-year warranty

    The Impera Tango is a controller for Biamp Apprimo touch panels. Able to host up to five touch panels, the Tango offers a more sophisticated level of control than the control pad category. Connected touch panels can work synchronously or independently, offering a diverse range of control options based on placement in the room or based on who has access to the touch panel. Configured together in Project Designer, the Tango enables each Apprimo touch panel to have multiple pages of control functionality.
    Impera touch panel controllers are configured via our Project Designer software.

  • Attribute Details
    GENERAL
    Height 1.4 inches (35 mm)
    Width 8.7 inches (220 mm)
    Depth 2.8 inches (70 mm)
    Weight 1.1 lbs (0.5 kg)
    ENVIRONMENTAL
    Operating Temperature Range 32 – 86° F (0 – 30° C)
    Humidity 10-90% relative humidity (non-condensing)
    Altitude 0-6,600 ft (0-2000m) MSL
    POWER
    PoE Input Compliance: IEEE 802.3af, Class 3, 15 W
    PoE Output Max power output: 12 W
    NETWORK
    Network Connection(s) RJ-45 with Ethernet (CAT5e or better)
    COMPLIANCE
    Certifications FCC Part 15B (USA), UL listed, CE Marked
    NOTES

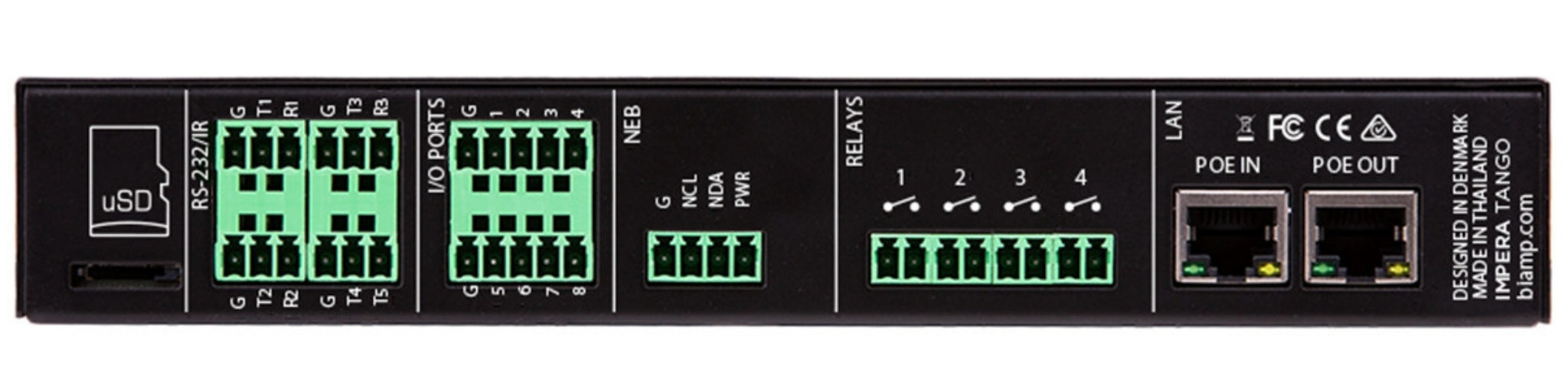

    RS-232 / IR Ports 3 (bidirectional), 3-pin Euroblock
    GPIO Ports 8, 5-pin Euroblock, Open drain
    Relays 4, 2-pin Euroblock, 30VDC / 0.5A
    Ethernet Port Speed 10/100 Mbps, Autosense
  • Description Downloads
    BIAMP Impera Tango Controller | 910.1880.900 DataSheet Downloads
    BIAMP Impera Tango Controller | 910.1880.900 Installation and Setup Guide Downloads
    BIAMP Impera Tango Controller | 910.1880.900 Drawing Downloads
