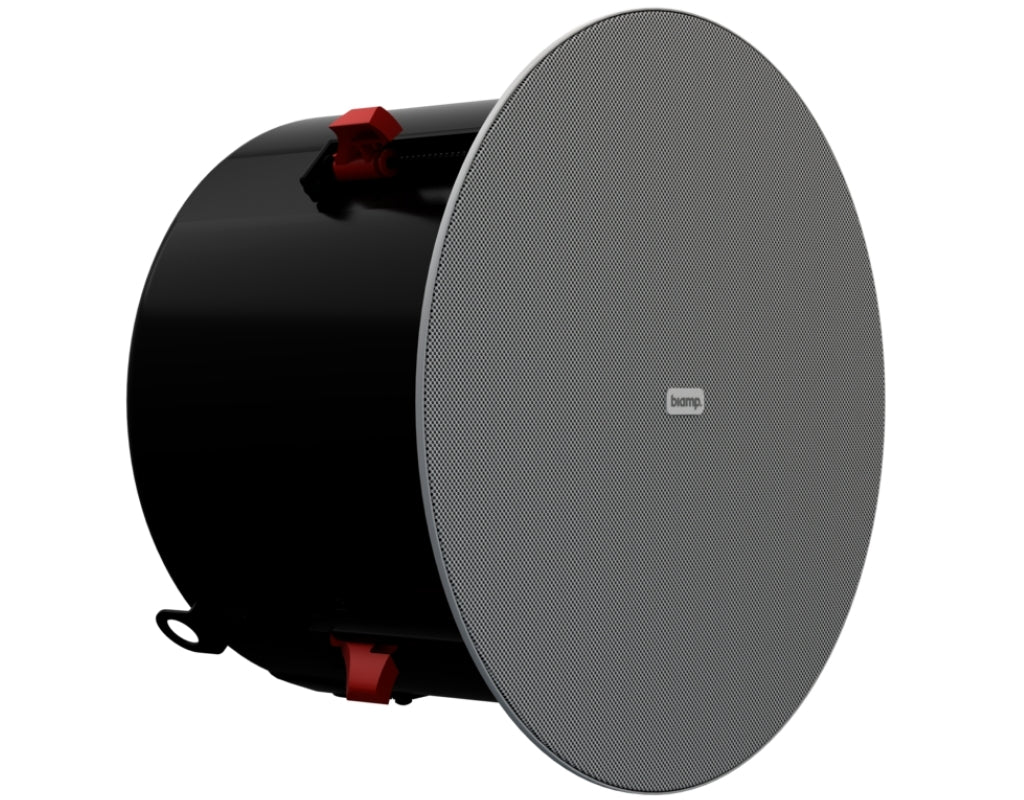

Biamp DX-IC8-W Wired 175 W 2-Way Loudspeaker White
Key Features
Zoom Rooms Certified
High intelligibility with exceptional uniform coverage
Fast installation with SpringLock mounting clamps
Higher output than typical ‘high-ceiling’ 8-inch ceiling speakers
Attractive edgeless magnetic grille design
Conduit knockouts on the input cover meet Chicago plenum air space requirements
5-year warranty
The Desono DX-IC8 rewrites the cost-to-performance equation for high-end ceiling loudspeakers. Able to fulfill a wide variety of needs, the DX-IC8 exceeds the performance of competing high-ceiling models. Foreground music, high-level paging, and augmentation of large music systems as a delay or fill speaker in ancillary zones are all within the capability of this versatile performer. It is ideal for high ceiling applications.
Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC8 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC8 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products. -
Category Specification Description GENERAL Depth 8.51 inches (216 mm) Diameter 13.43 inches (341 mm) Cutout Diameter 12.20 inches (310 mm) Weight 15.6 lbs (7.08 kg) Finish RAL Color: White RAL 9016 ENVIRONMENTAL Operating Environment Indoor POWER Power 175W Continuous, 700W Peak LOUDSPEAKER Loudspeaker Type Two-way 8-inch ceiling loudspeaker Operating Range 75 Hz – 20 kHz Transformer 70V: 120W, 60W, 30W, 15W; 100V: 120W, 60W, 30W Sensitivity (1W/1m) 93 dB Dispersion 115° conical Drivers LF 1 x 8″, HF 1 x 1.25″ AUDIO Impedance 7Ω Maximum Output Max Output @1m: 116 dB, 126 dB Peak CERTIFIED SOLUTIONS Zoom Zoom Certified COMPLIANCE Certifications UL1480, UL2043, CSA62368-1, NFPA70, NFPA90 -
