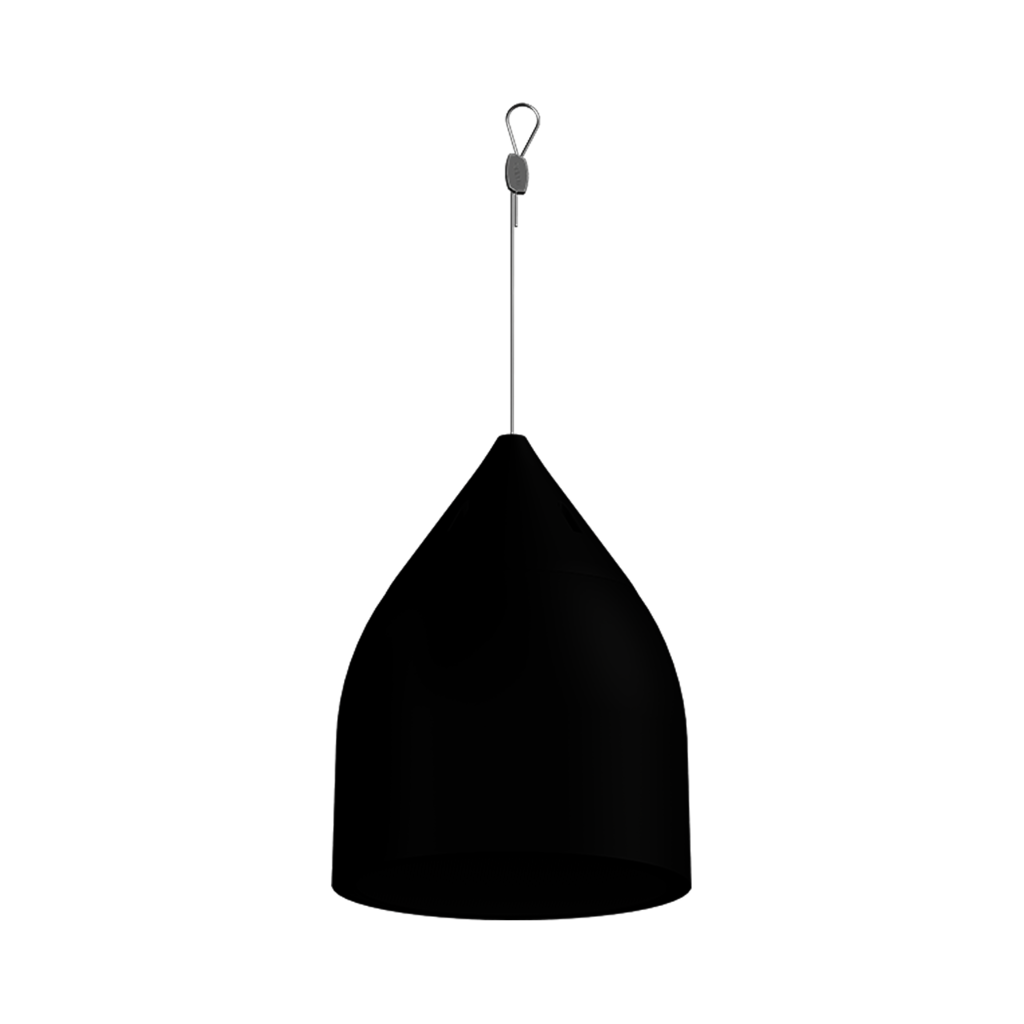

• Biamp DP6-B 6.5″ Pendant Loudspeaker | 911.0550.900

  The DP6 is a high performance 6.5-inch pendant loudspeaker designed for open architecture spaces or any location where a stylish pendant form factor is desired. Featuring high power handling, high sensitivity and realistic sound reproduction, D SERIES pendant loudspeakers can be used in a wide variety of speech and music applications. They are equipped with a built-in autoformer, supporting low impedance or 70V/100V operation. Uniform voicing means that the DP6 can be combined with other ceiling and surface mount models in the C or D SERIES family without compromising consistency from zone to zone. The genuine coaxial design uses separate magnets for the LF and HF drivers for reduced distortion and industry-leading sensitivity, thereby permitting 3 dB to 6 dB greater output level while requiring half the amplification power of competing products. An easy-access selector switch is conveniently located on the face of the loudspeaker for selectable 8 ohm or 70V/100V operation, while an integrated rear cover hides all wiring and hanging hardware for an aesthetically pleasing installation.





• Category	Feature	Specification
  GENERAL	Height	14.73 inches (374.2 mm) high enclosure
  	Width	11.22 inches (285 mm) face diameter
  	Weight	11.8 lbs (5.4 kg)
  	Finish	Black
  	Material	Grille: Powder coated steel, black or white, paintable
  	Mounting	Two PHK-15 pendant hang kits, 15ft (4.5m) cables, Gripple™ fasteners
  	Accessories	Two PHK-15 pendant hang kits
  	Enclosure	ABS plastic rear cover
  	Rear cover ingress weather plug	Required Accessories: Electronic high pass filter
  CONTROLS & INDICATORS	Control	Front-face wattage / low impedance selector switch
  AMPLIFIER	Distortion	500 Hz: 1.74% 2nd Harmonic, 1.19% 3rd Harmonic
  		2 kHz: 1.18% 2nd Harmonic, 0.35% 3rd Harmonic
  		8 kHz: 0.77% 2nd Harmonic, 0.04% 3rd Harmonic
  LOUDSPEAKER	Loudspeaker Type	Two-way, full-range, coaxial pendant mount loudspeaker
  	Operating Range	65 Hz – 22 kHz
  	Crossover	Crossover Frequency: 1.2 kHz
  	Transformer	70V: 60W, 30W, 15W, 7.5W and low impedance; 100V: 60W, 30W, 15W
  	Sensitivity	94 dB SPL (125 Hz to 12.5 kHz), 92 dB SPL (250 Hz to 4 kHz)
  	Coverage	115º conical (1 kHz to 6 kHz), 125º conical (500 Hz to 6 kHz)
  	Signal Processing	65 Hz high pass filter
  	Drivers	LF: 1 x 6.5-inch, HF: 1 x 1-inch exit compression driver
  	Driver Protection	Self-resetting solid state circuit breaker
  AUDIO	Audio Input Connection	Two 2-position Euroblock connectors
  	Impedance	Nominal: 8 ohms; Minimum: 6.9 ohms @ 210 Hz
  	Maximum Input	100W continuous, 250W program, 28 volts RMS, 63 volts momentary peak
  	Maximum Output	114 dB SPL / 120 dB SPL (peak 8 ohm)
  	Frequency Response	80 Hz – 20 kHz (±5 dB)
  CERTIFIED SOLUTIONS	Zoom	Zoom Certified
  COMPLIANCE	Safety Features	Safety cable with SWL of 99 lbs (45 kg)
  	Safety Agency Ratings	EETL listed to comply with UL1480 and CSA60065
  		Suspension system listed per UL1598, UL2239, TUV, CSA
  NOTES	Specification Notes	Baffle: Reflex loaded UL 94V-0 rated ABS
  		Axial Q / DI: 4.7 / 6.7, 500 Hz to 6 kHz
