• Biamp Desono ENT-FR Wired 600 W  3-way Loudspeaker Black

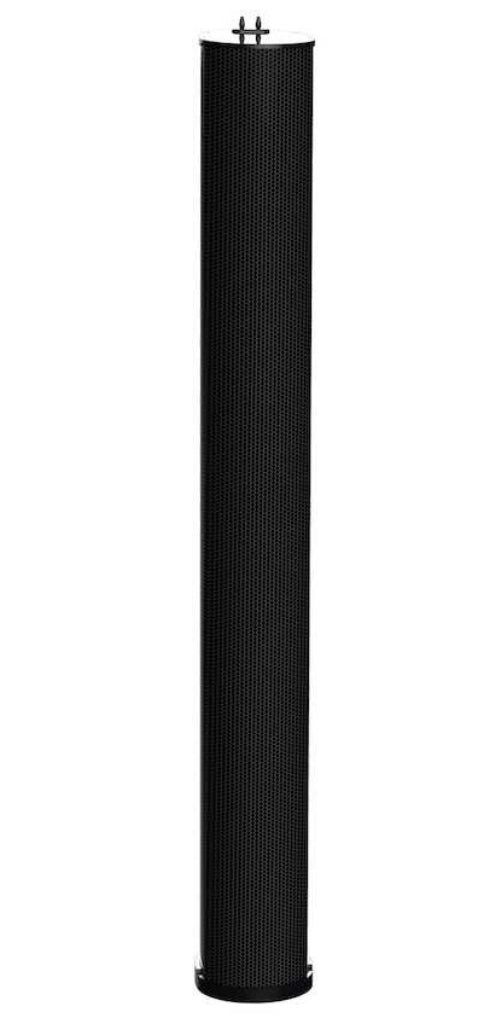

  ENTASYS Full-Range 3-Way Column Loudspeaker, Black
  Desono ENT-FR offers superior performance, high output and high power handling capability in architecturally appealing enclosures. The scalable design supports configurations of loudspeakers from singles to floor-to-ceiling arrays of any length, meeting the acoustical design needs of nearly any application. The ENT-FR high-performance three-way column line source loudspeaker system is designed for permanent installation in applications such as auditoria, airports, train stations, conference centers, houses of worship, stadium concourses and museums.

  ENT-FR is most beneficial in medium to large highly reverberant spaces. As a modular true line source, an array of nearly any length can be assembled. Longer arrays minimize sound reflections, reducing reverberation and increasing speech intelligibility. The ENT-FR and ENT-LF are equally suited for indoor and outdoor direct exposure applications.

  The system is designed to be modular, allowing the installer to place the center of the vertical system lobe symmetrically or asymmetrically about the vertical axis of the column array. Multiple ENT-FR columns may be used to create single lobe, focused coverage. Or, by implementing tall arrays using both FR and LF columns, multiple vertical lobes can be created at independent points on the column – something previously only possible using powered, steered arrays. A wide range of mounting brackets is available to fit nearly every installation.

  AMPLIFIED LOUDSPEAKER CONTROLLERS
  Community ALC1604D is recommended for this product. Higher power ALC models may be used safely as well

• Category	Specification	Description
  GENERAL	Height	44.5 inches (1129 mm)
  	Width	5.5 inches (140 mm)
  	Depth	7.4 inches (187 mm)
  	Weight	40 lbs (18.1 kg) [ENT-FR], 25 lbs (11.3 kg) [ENT-LF]
  	Finish	RAL Color: Black RAL 9005
  ENVIRONMENTAL	Operating Environment	IP54 per IEC 60529, Designed to MIL-STD810G
  POWER	Power	600W Continuous, 2400W Peak
  LOUDSPEAKER	Loudspeaker Type	Three-way 6 x 3.5-inch column line source loudspeaker
  	Operating Range	200 Hz – 20 kHz
  	Sensitivity	(1W/1m) Curved (12°V): 93 dB, Straight (6°V): 95 dB
  	Dispersion	Horizontal: 120°, Vertical: 12° or 6° (user configurable)
  	Drivers	LF 6 x 3.5″, MF 18 x 2.35″, HF 6 x 7″ CRE
  AUDIO	Impedance	12Ω
  	Maximum Output	Curved (12°V): 120 dB, Straight (6°V): 122 dB
  CERTIFIED SOLUTIONS	Zoom	Zoom Certified
