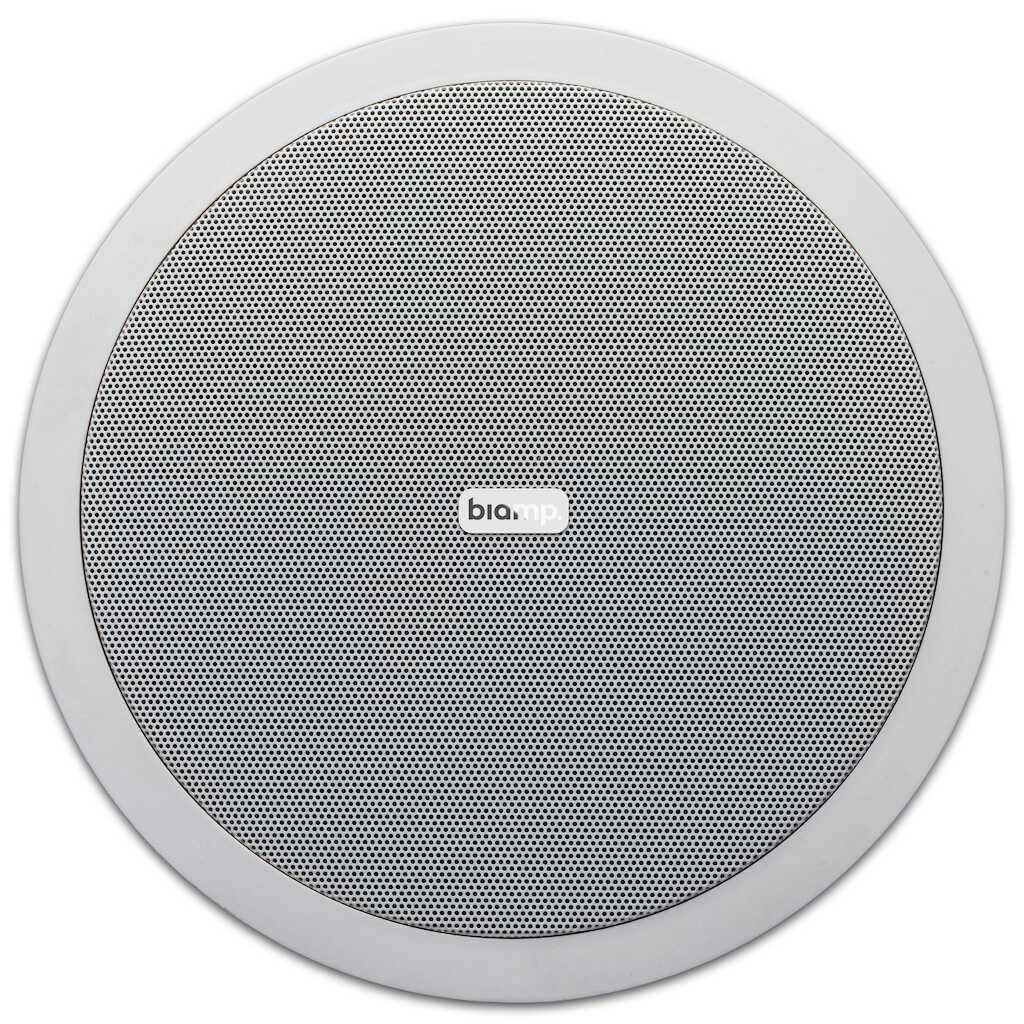

• Biamp CMX20T 2-Way 8″ Ceiling Loudspeaker | 911.1585.900

  CMX20T two-way built-in loudspeaker produces a warm and deep sound ideal for speech and music. The CMX20T loudspeaker has an 8” enforced polypropylene woofer and 1” tweeter. Due to this enforced woofer, the loudspeaker has a very low distortion! It makes the CMX20T very suitable for the distribution of microphone calls and background music at a higher volume level.

  The housing is made of high quality ABS. The woofer is made out of enforced polypropylene with a rubber edge, what makes it moisture-proof. The aluminium grille makes CMX20T humidity proof and suitable for use in bathrooms and kitchens.

  In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CMX20T is equipped with a highquality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts).

  This loudspeaker is easy to install, due to its simple, quick mounting system with only 3 screws. These screws are hidden behind the loudspeaker grill, what gives the loudspeaker a modern and striking design.

  Versatile for almost every market around the globe due to the addition of the 70 / 100 volt connection, the CM series is bound to stay the standard installer’s choice in the fixed install market.

  The CMX20T loudspeakers can be painted in any colour.

• Feature	Specification
  Outside Diameter (mm)	244
  Cutout (mm)	223
  Loudspeaker System	2-way
  Woofer Cone Material	Polypropylene
  Mounting System	3 screws
  100V Transformer Power Taps (watts)	20 – 10 – 5
  Impedance (ohms)	16
  Low Impedance RMS Power (watts)	50
  Max SPL 1m (dB)	108
  Main Construction Material	ABS plastic
  IP Rating	54
  Applicable in 100V	Yes
  Closest RAL Colour	RAL9010 (W) / RAL9011 (BL)
  Depth (mm)	87
  Installation Grip Range (mm)	4 – 25
  Woofer Size (inch)	8
  Tweeter Size (inch)	1
  Colour	White / Black
  70V Transformer Power Taps (watts)	20 – 10 – 5 – 2.5
  Low Impedance Dynamic Power (watts)	100
  SPL 1W/1m (dB)	88
  Frequency Response (Hz)	50 – 20K
  Grille Main Material	Aluminium
  Applicable Low Impedance	Yes
  Vertical Dispersion Angle 1000 Hz	180°
  Net Weight (kg)	1.40
