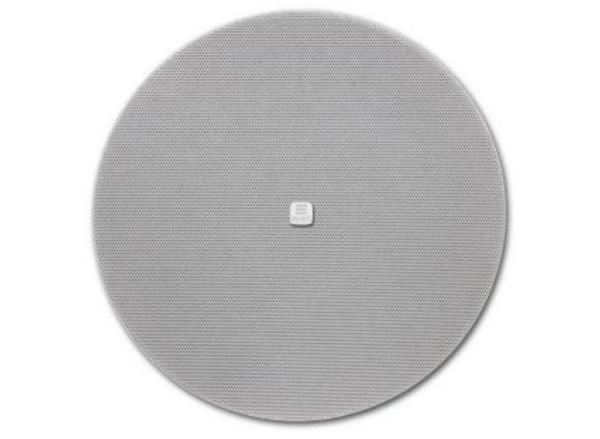

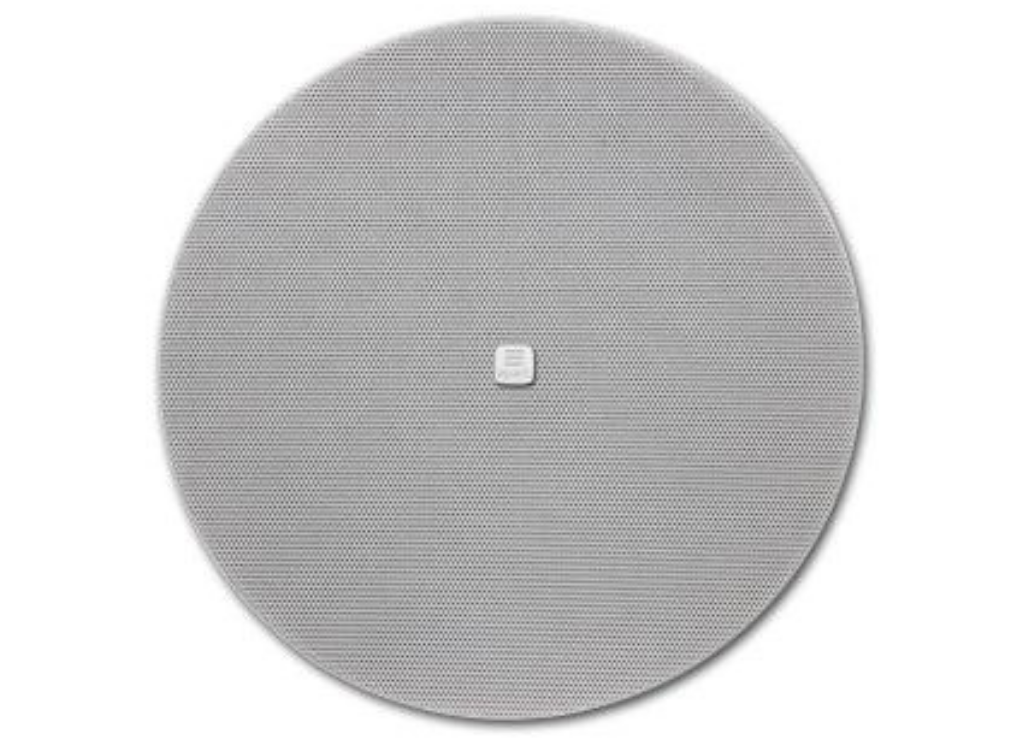

Biamp CMX20DT 8″ 2-Way Ceiling Thin Edge Loudspeaker | 913.1584.900

• Description
• Specifications
• Downloads

• Biamp CMX20DT 8″ 2-Way Ceiling Thin Edge Loudspeaker | 913.1584.900

  The versatile CMX20DT 8” two-way built-in loudspeaker produces a deep and warm sound ideal for speech and music. When using the loudspeaker at 16 ohms, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier.

  For 70 or 100 volt use, the CMX20DT is equipped with the Quick Fit connector, a handy in and out connector via push terminal for loudspeaker wire connection up to 2.5 mm. The thin edge grille with neodymium magnets makes the CMX20DT the ideal solution for an easy, discreet, décorfriendly installation. This loudspeaker can be painted in any available RAL colour.

• Feature	Specification
  Outside Diameter	250 mm
  Cutout Diameter	223 mm
  Loudspeaker System	2-way
  Woofer Cone Material	Polypropylene
  Mounting System	3 screws
  100V Transformer Power Taps	20W, 10W, 5W
  Impedance	16 Ω
  Low Impedance RMS Power	50W
  Max SPL 1m	108 dB
  Main Construction Material	ABS plastic
  IP Rating	50
  Applicable in 100V	Yes
  Closest RAL Colour	RAL9010 (White)
  Depth	87 mm
  Installation Grip Range	6 – 29 mm
  Woofer Size	8 inch
  Tweeter Size	1 inch
  Colour	White
  70V Transformer Power Taps	20W, 10W, 5W, 2.5W
  Low Impedance Dynamic Power	100W
  SPL 1W/1m	88 dB
  Frequency Response	50 Hz – 20 kHz
  Grille Main Material	Steel
  Applicable Low Impedance	Yes
  Vertical Dispersion Angle	180° at 1000 Hz
  Net Weight	1.45 kg
