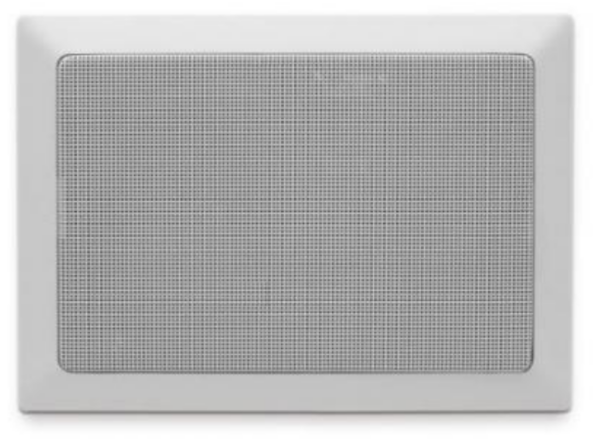

Biamp CMR20T 5.25″ Two-Way Loudspeaker

• Description
• Specifications
• Downloads

• Biamp CMR20T 5.25″ Two-Way Loudspeaker

  CMR20T is a very compact and performant two-way rectangular 100 volt built-in speaker, provided with a 5.25” polypropylene woofer and 1” tweeter. The two-way aspect makes the loudspeaker very suitable for the reproduction of both background music and microphone calls.

  Its 20 watts 100 volt transformer (with several power tappings) makes the CMR20T the ideal solution for rooms with high ceilings and/or rooms which need a higher power level.

  The different power tappings can be selected by the switch that is hidden behind the loudspeaker grille.

  The loudspeaker is easy to install, due to its simple, quick mounting system (4 screws which are hidden behind the loudspeaker grille), which gives the loudspeaker a modern and striking design.

  The CMR20T loudspeakers can be painted in any colour.

• Feature	Specification
  Height (mm)	170
  Depth (mm)	73
  Installation Grip Range (mm)	3 – 17
  Woofer Size (inch)	5.25
  Tweeter Size (inch)	1
  Colour	White
  Impedance (ohms)	16
  Low Impedance RMS Power (watts)	40
  Max SPL 1m (dB)	100
  Main Construction Material	ABS plastic
  IP Rating	54
  Applicable in 100V	Yes
  Vertical Dispersion Angle 1000 Hz	180°
  Net Weight (kg)	1.30
  Width (mm)	237
  Cutout (mm)	146 x 213
  Loudspeaker System	2-way
  Woofer Cone Material	Polypropylene
  Mounting System	4 screws
  100V Transformer Power Taps (watts)	20 – 10 – 5 – 2.5
  Low Impedance Dynamic Power (watts)	60
  SPL 1W/1m (dB)	85
  Frequency Response (Hz)	60 – 20K
  Grille Main Material	Aluminium
  Applicable Low Impedance	Yes
  Horizontal Dispersion Angle 1000 Hz	180°
  Closest RAL Colour	RAL9010 (subject to deviations)
