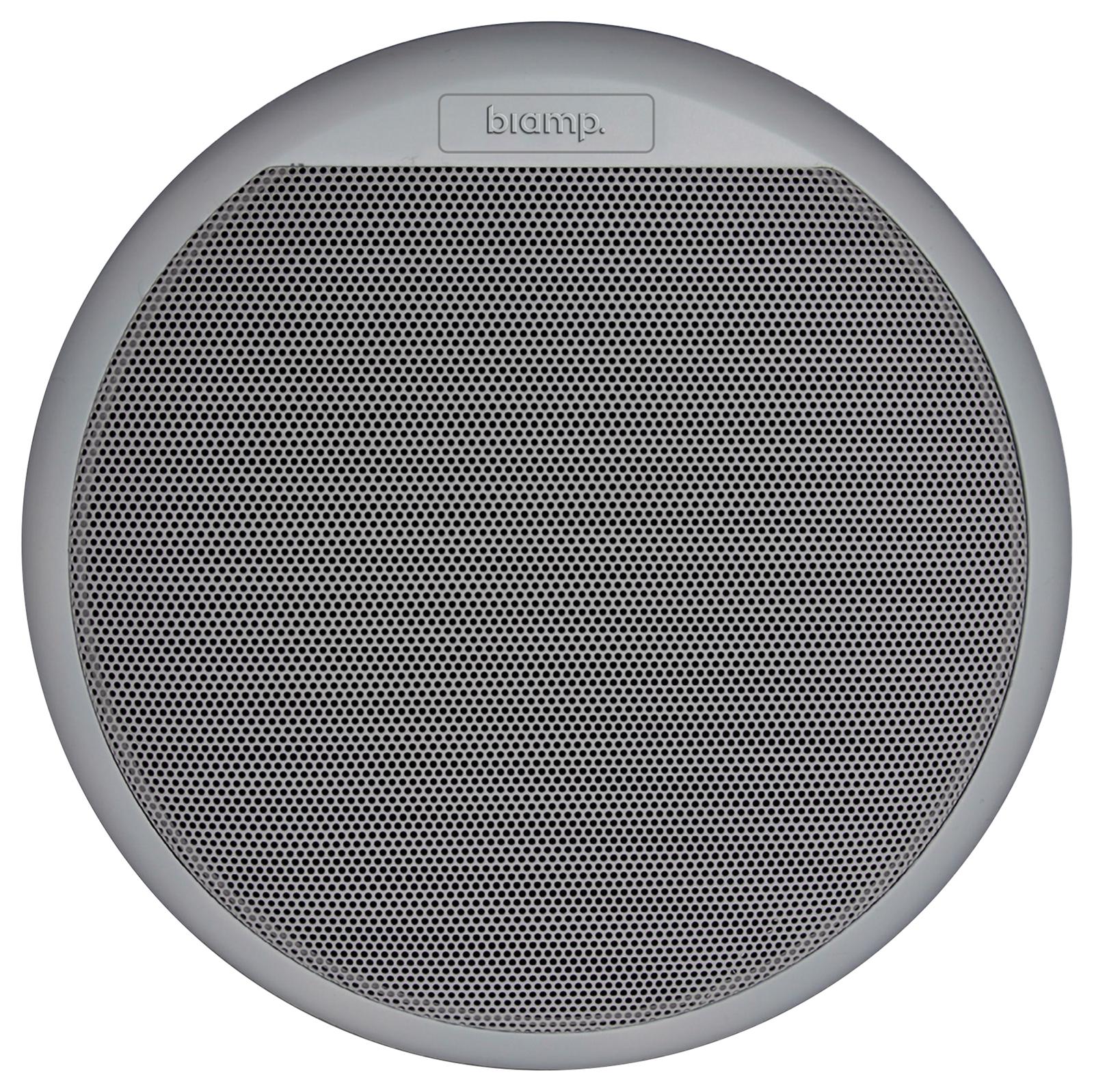

• Biamp CMAR8T-W 2-Way Marine Speaker | 911.1564.900

  The CMAR8T marine speaker brings high-quality sound, even in the most difficult humid places.

  The CMART Marine Series has 3 different models in 5-inch (CMAR5T-W), 6-inch (CMAR6T-W) and 8-inch (CMAR8T-W). These loudspeakers are especially developed to be installed in humid or hot (up to 95° C) environments like swimming pools, yachts, bathrooms, and saunas.

  This waterproof marine loudspeaker is already equipped with a 20-watt transformer (T20iP) which makes this waterproof speaker suited for low impedance as well as 100 volt systems.

• Category	Feature	Specification
  GENERAL	Depth	3 inches (76 mm)
  	Diameter	Bezel Diameter: 8.7 inches (220 mm)
  	Cutout Diameter	7.2 inches (184 mm)
  	Weight	4.48 lbs (2.03 kg)
  ENVIRONMENTAL	Operating Environment	IP65
  POWER	Power	50W Cont., 200W Peak
  LOUDSPEAKER	Loudspeaker Type	Two-way 8-inch 70V/100V marine ceiling loudspeaker
  	Operating Range	55 Hz – 20 kHz
  	Transformer	100V: 20W, 10W, 5W, 2.5W
  	Sensitivity	(1W/1m) 88 dB
  	Dispersion	180° conical
  	Drivers	LF: 1 x 8″, HF: 1 x 1″
  AUDIO	Impedance	8Ω
  	Maximum Output	107 dB, 113 dB Peak
