• Biamp CM608 6.5″ 2-Way Ceiling Loudspeaker | 911.1551.900

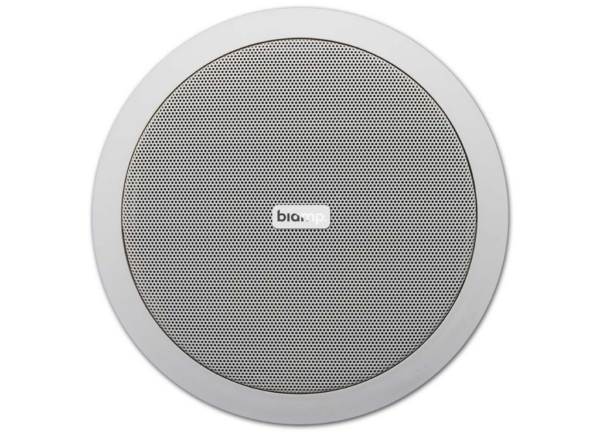

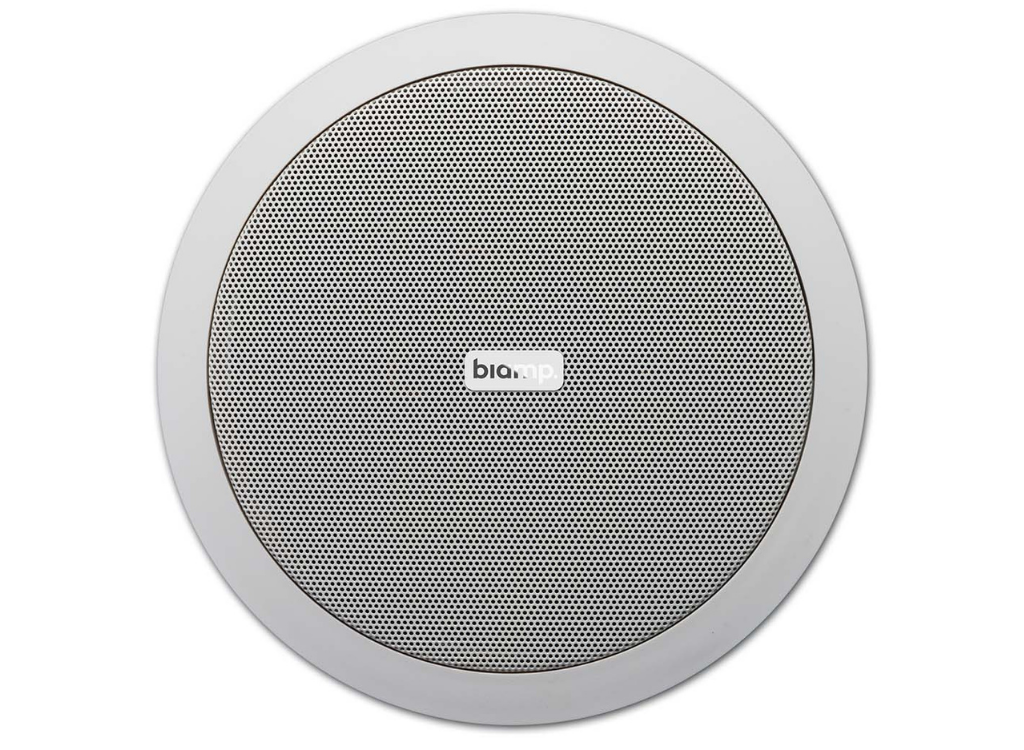

  The CM608 two-way built-in low impedance loudspeaker is “the reference loudspeaker”. It can be used with a standard hi-fi amplifier and provides you with a Pro HiFi sound.

  The loudspeaker has an enforced 6 ½” woofer and 1” tweeter. It makes the CM608 very suitable for the distribution of background music. The housing is made of high quality ABS and the woofer is made out of polypropylen, what makes it moisture-proof.

  This loudspeaker is easy to install, due to its simple, quick mounting system (3 screws which are hidden behind the loudspeakergrill, which gives the loudspeaker a modern and striking design).

  This loudspeaker is now updated with a new Quick Fix connector for an even faster and easier installation. (not for CM608-SLV)

  The complete redesign of the CM Series is done according to the corporate Apart identity. Apart blue speaker clamps and product sticker, an Apart marked transformer and loudspeaker basket. (not for CM608-SLV)

  The CM608 loudspeakers can be painted in any colour.

• Feature	Specification
  Outside Diameter	205 mm
  Cutout Diameter	186 mm
  Loudspeaker System	2-way
  Woofer Cone Material	Polypropylene
  Mounting System	3 screws
  Impedance	8 Ω
  Low Impedance RMS Power	40 W
  Max SPL 1m	104 dB
  Main Construction Material	ABS plastic
  IP Rating	54
  Applicable in 100V	No
  Closest RAL Colour	RAL9010 (W) / RAL9011 (BL)
  Depth	75 mm
  Installation Grip Range	2 – 25 mm
  Woofer Size	6.5 inch
  Tweeter Size	1 inch
  Colour	White / Black / Silver
  Low Impedance Dynamic Power	60 W
  SPL 1W/1m	92 dB
  Frequency Response	60 Hz – 20 kHz
  Grille Main Material	Aluminium
  Applicable Low Impedance	Yes
  Vertical Dispersion Angle	180° at 1000 Hz
  Net Weight	1.15 kg
