• Biamp CM20T-BL Two-Way Built-In Loudspeaker | 16 Ohms or 100-Volt Operation.

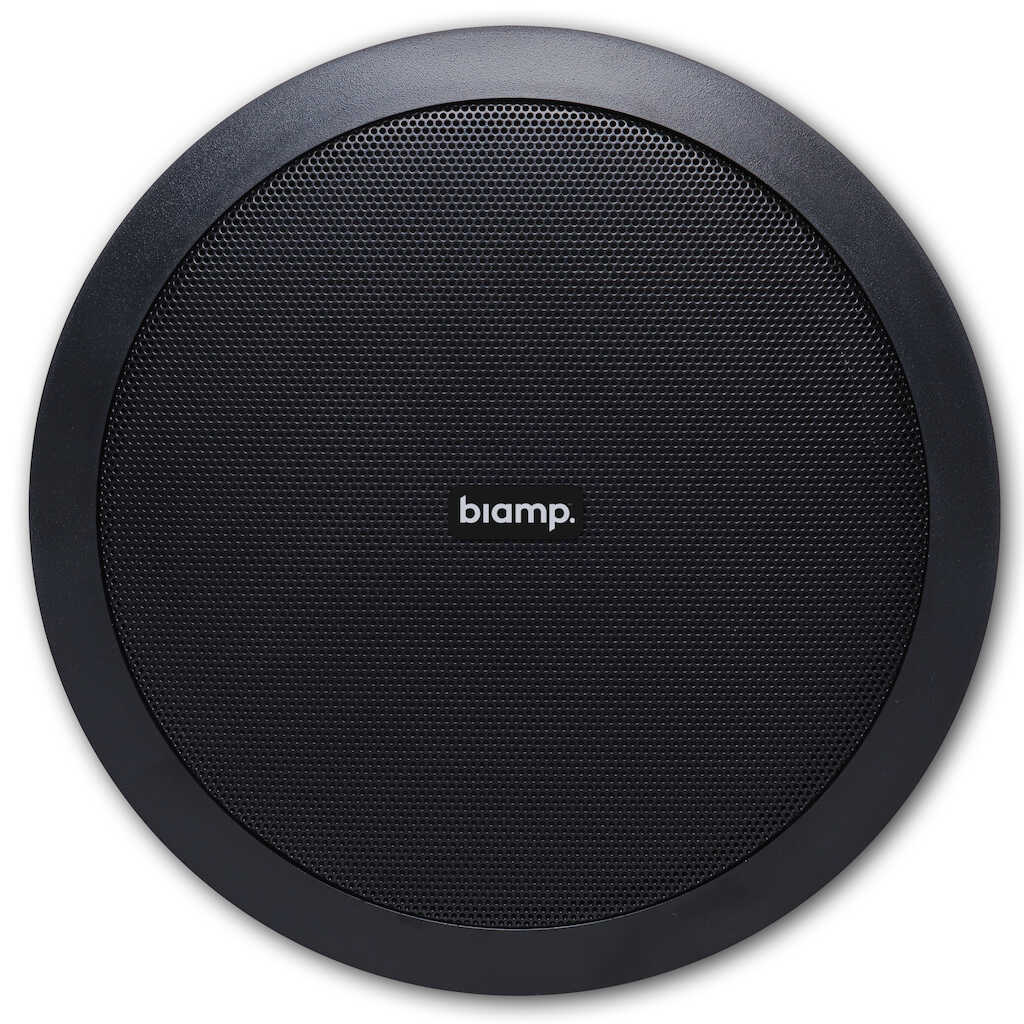

  The Commercial CM20T loudspeaker is a two-way built-in, ceiling mount that can be used as a 16 ohms or 100 volt loudspeaker. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CM20T is equipped with a high-quality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts). Therefore it can be used in projects with high ceilings or places with background noise where a little more power is needed.

  The loudspeaker has a 6.5-inch enforced polypropylene woofer that results in very low distortion. To complete the sound, a 1-inch tweeter has been integrated. It makes the CM20T very suitable for the distribution of microphone calls and background music.

  The housing is made of high-quality ABS. The woofer is made from enforced polypropylene, what makes it moisture-proof. The aluminum grill makes CM20T humidity proof and ideal to be used in bathrooms, kitchens, etc. The loudspeaker is easy to install due to its simple, quick-mounting system with only 3 screws. These screws are hidden behind the loudspeaker grill.

  This loudspeaker is now updated with a new Quick Fix connector and transformer tapping sticker for an even faster and easier installation.

  Versatile for almost every market around the globe due to the addition of the 70/100V connection, the CM series is bound to stay the standard installer’s choice in the fixed install market.

  The CM20T loudspeakers can be painted in any color.

• Feature	Specification
  Outside Diameter (mm)	205
  Cutout (mm)	186
  Loudspeaker System	2-way
  Woofer Cone Material	Polypropylene
  Mounting System	3 screws
  100V Transformer Power Taps (watts)	20 – 10 – 5
  Impedance (ohms)	16
  Low Impedance RMS Power (watts)	30
  Max SPL 1m (dB)	104
  Main Construction Material	ABS plastic
  IP Rating	54
  Applicable in 100V	Yes
  Closest RAL Colour	RAL9010 (W) / RAL9011 (BL)
  Depth (mm)	80
  Installation Grip Range (mm)	2 – 25
  Woofer Size (inch)	6.5
  Tweeter Size (inch)	1
  Colour	White / Black
  70V Transformer Power Taps (watts)	20 – 10 – 5 – 2.5
  Low Impedance Dynamic Power (watts)	60
  SPL 1W/1m (dB)	86
  Frequency Response (Hz)	60 – 20K
  Grille Main Material	Aluminium
  Applicable Low Impedance	Yes
  Vertical Dispersion Angle 1000 Hz	180°
  Net Weight (kg)	1.40
