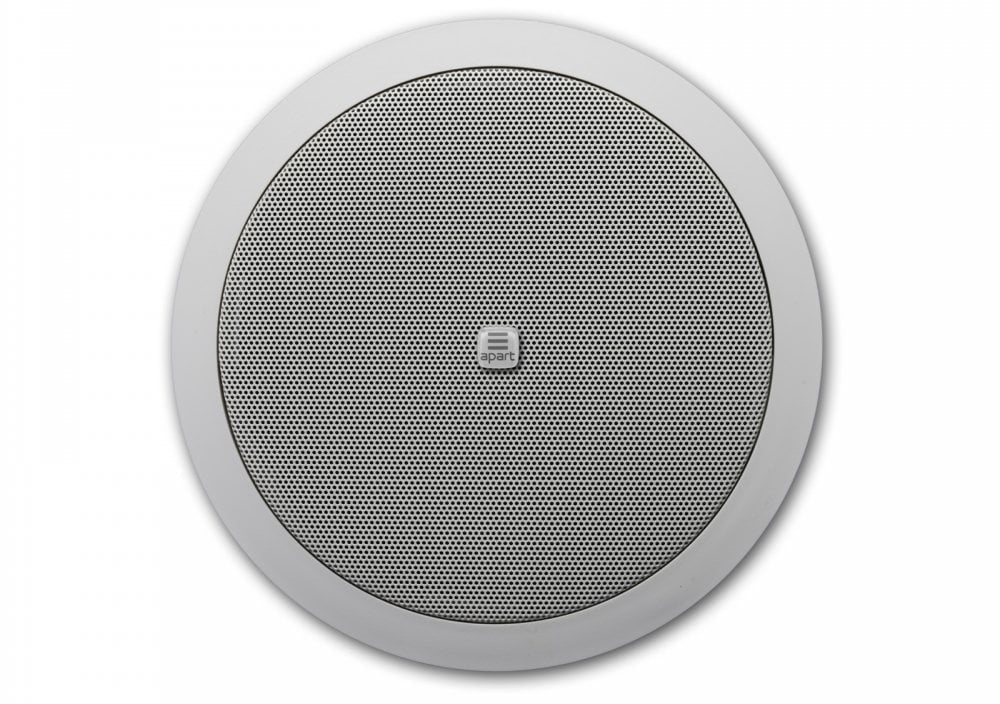

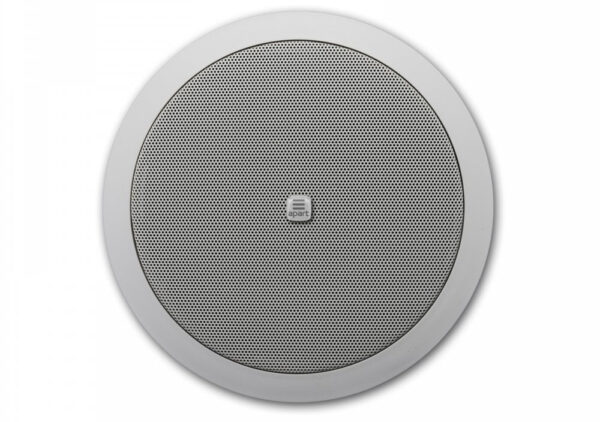

• BIAMP CM20T 6.5″ Two-Way Loudspeaker – White

  The CM20T two-way built-in loudspeaker can be used as a 16 ohms or 100 volt loudspeaker. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CM20T is equipped with a high-quality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts). Therefore it can be used in projects with high ceilings or places with background noise where a little more power is needed.

  The loudspeaker has a 6.5” enforced polypropylene woofer what results in a very low distortion. To complete the sound, a 1” tweeter has been integrated. It makes the CM20T very suitable for the distribution of microphone calls and background music.

  The housing is made of high quality ABS. The woofer is made out of enforced polypropylene, what makes it moisture-proof. The aluminium grille makes CM20T humidity proof and ideal to be used in bathrooms, kitchens.

  .. The loudspeaker is easy to install, due to its simple, quick mounting system with only 3 screws. These screws are hidden behind the loudspeaker grill, what gives the loudspeaker a modern and striking design.

  This loudspeaker is now updated with a new Quick Fix connector and transformer tapping sticker for an even faster and easier installation.

  Versatile for almost every market around the globe due to the addition of the 70 / 100 volt connection, the CM series is bound to stay the standard installer’s choice in the fixed install market.

  The complete redesign of the CM Series is done according to the corporate Apart identity. Apart blue speaker clamps and product sticker, an Apart marked transformer and loudspeaker basket.

  The CM20T loudspeakers can be painted in any colour.

• Feature	Specification
  Outside Diameter in mm	205
  Cutout in mm	186
  Loudspeaker System	2-way
  Woofer Cone Material	Polypropylene
  Mounting System	3 screws
  100V Transformer Power Taps in Watts	20 – 10 – 5
  Impedance in Ohms	16
  Low Impedance RMS Power in Watts	30
  Max SPL 1m in dB	104
  Main Construction Material	ABS Plastic
  IP Rating	54
  Applicable in 100V	Yes
  Closest RAL Colour (Subject to Deviations)	RAL9010 (W) / RAL9011 (BL)
  Depth in mm	80
  Installation Grip Range in mm	2 – 25
  Woofer Size in Inch	6.5
  Tweeter Size in Inch	1
  Colour	White / Black
  70V Transformer Power Taps in Watts	20 – 10 – 5 – 2.5
  Low Impedance Dynamic Power in Watts	60
  SPL 1W/1m in dB	86
  Frequency Response in Hz	60 – 20K
  Grille Main Material	Aluminium
  Applicable Low Impedance	Yes
  Vertical Dispersion Angle 1000 Hz	180°
  Net Weight Product in kg	1.40
