Biamp Apprimo Touch 7 7″ Touch Enabled Control Panel Black

• Description
• Specifications
• Downloads

• Biamp Apprimo Touch 7 7″ Touch Enabled Control Panel Black


  Key Features
  7-inch capacitive touch LCD interface
  Scratch-resistant glass
  Several UI design templates and themes available in Project Designer software
  Customizable user interface to fit customers’ control requirements and corporate identity
  Fits standard single gang US, EU, and DK back boxes
  Screen turns on automatically as someone approaches
  Display brightness can adjust automatically to the ambient light level

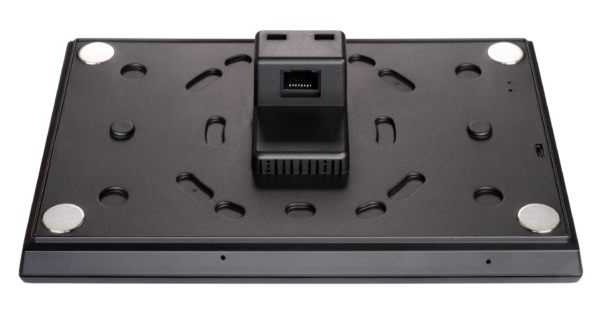

  Magnetic wall plate for easy installation
  PoE powered (IEEE 802.3at Class 3, 15 watts) for simple, single CAT5e/CAT6 cable installation
  Firmware can be updated via mini USB port
  5-year warranty


  The Apprimo Touch 7 is a 7-inch, landscape-oriented wall-mounted or tabletop (with optional table stand accessory) touch panel. It uses scratch resistant glass for its capacitive touch LCD interface. Available in both black and white, the Touch 7 is intuitive to use. It includes PIR sensors that adjust the screen brightness based on a room’s ambient light level. The user interface is fully configurable with Project Designer software. The Touch 7 is operated by an Impera touch panel controller, allowing you to customize a solution to match customer requirements.

• Category	Details
  Height	4.7 inches (120 mm)
  Width	7.0 inches (180 mm)
  Depth	1.6 inches (41 mm)
  Weight	0.73 lbs (330 g)
  Display	High-Contrast Capacitive Touch LCD
  Display Size	7″ (178 mm) diagonal
  Resolution	1024×595
  Brightness	350 nits
  Accessories	Mounting bracket, screws, Ejector Pin, USB-OTG adapter, Polishing cloth
  Operating Temp	32 – 104° F (0 – 40° C)
  Humidity	10-90% RH (non-condensing)
  Altitude	0-6,600 ft (0-2000m) MSL
  USB	Mini USB port: USB 2.0
  Network Connection	RJ-45 with Ethernet (Cat 5e+)
  Sensors	Proximity, Ambient Light
  Certifications	CE marked, RoHS (Europe)
  Controller Compatibility	Impera Alfa II, Lima, Tango, Sierra II
