• Biamp Apprimo Touch 4 for Small Conference & Meeting Rooms


  Key Features
  4-inch capacitive touch LCD interface
  Scratch-resistant glass
  Several UI design templates and themes available in Project Designer software
  Customizable user interface to fit customers’ control requirements and corporate identity
  Fits standard single gang US, EU, and DK back boxes
  Screen turns on automatically as someone approaches
  Display brightness can adjust automatically to the ambient light level

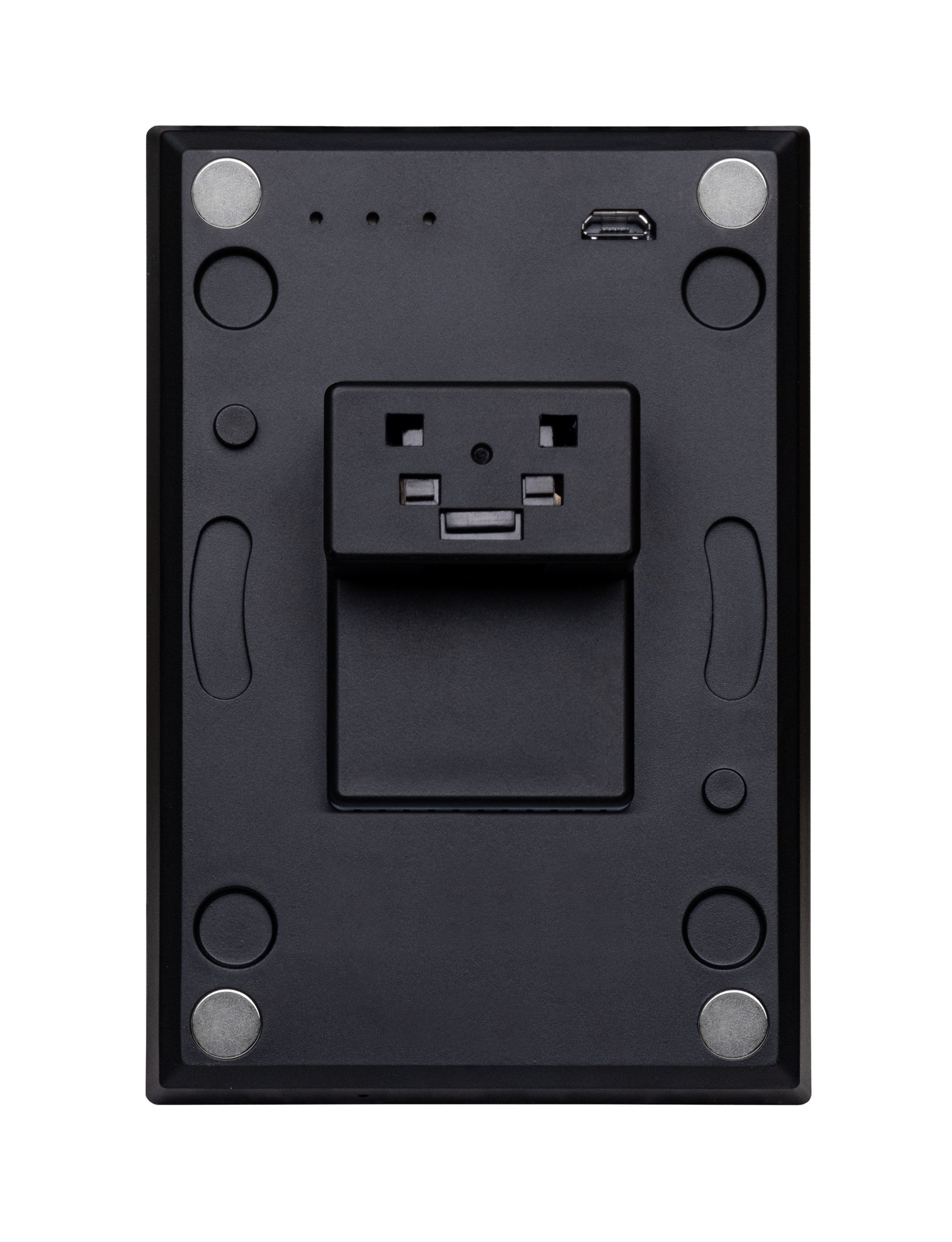

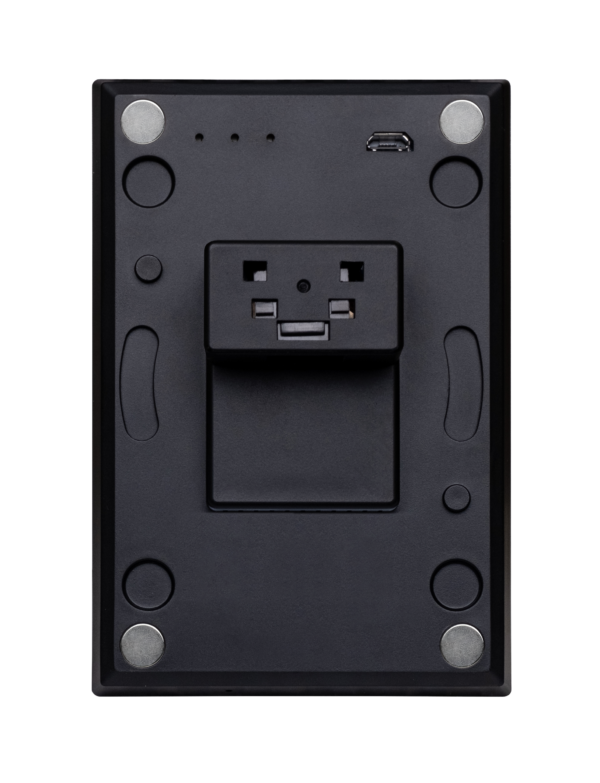

  Magnetic wall plate for easy installation
  PoE powered (IEEE 802.3at Class 2, 7 watts) for simple, single CAT5e/CAT6 cable installation
  Firmware can be updated via mini USB port
  5-year warranty

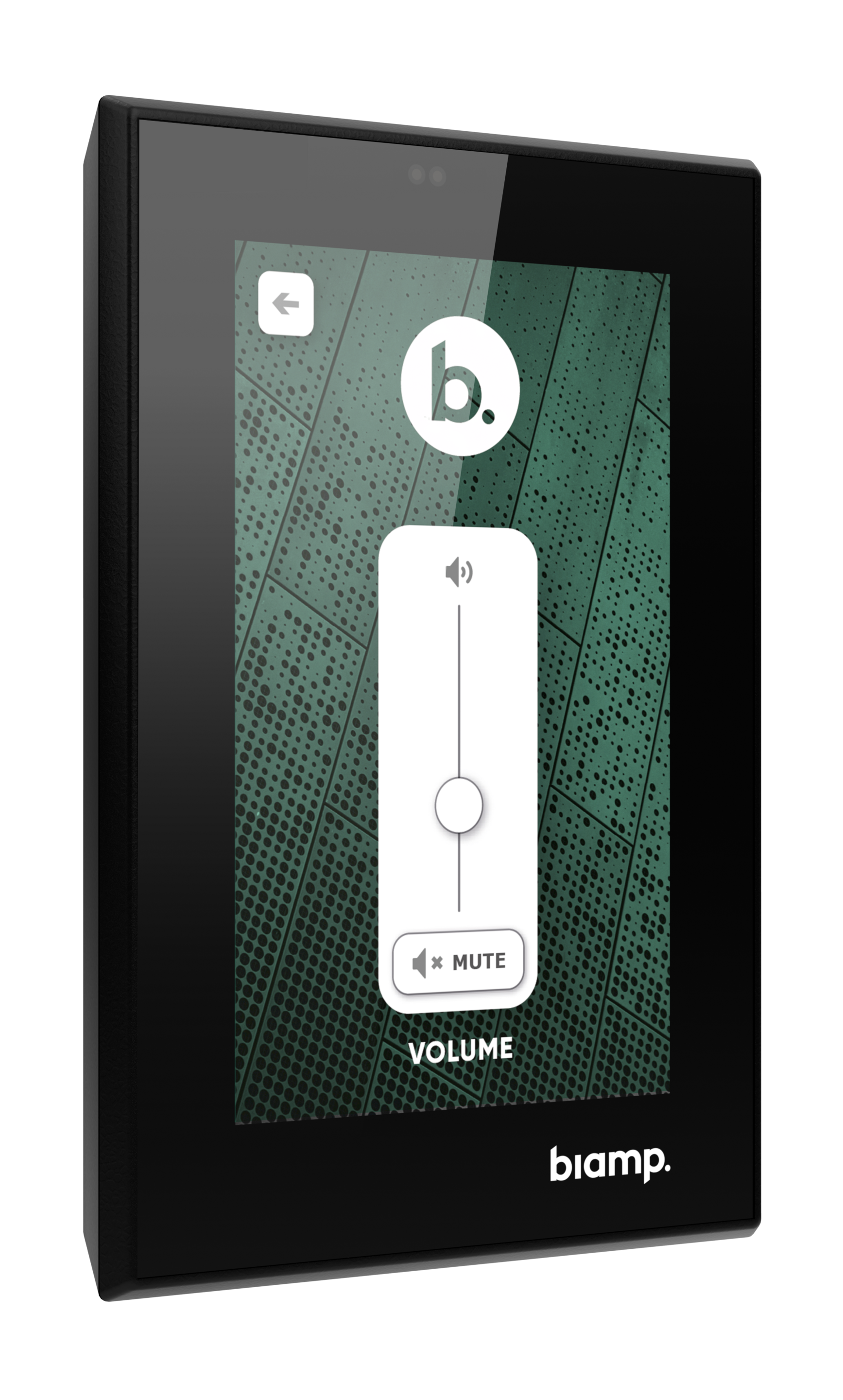

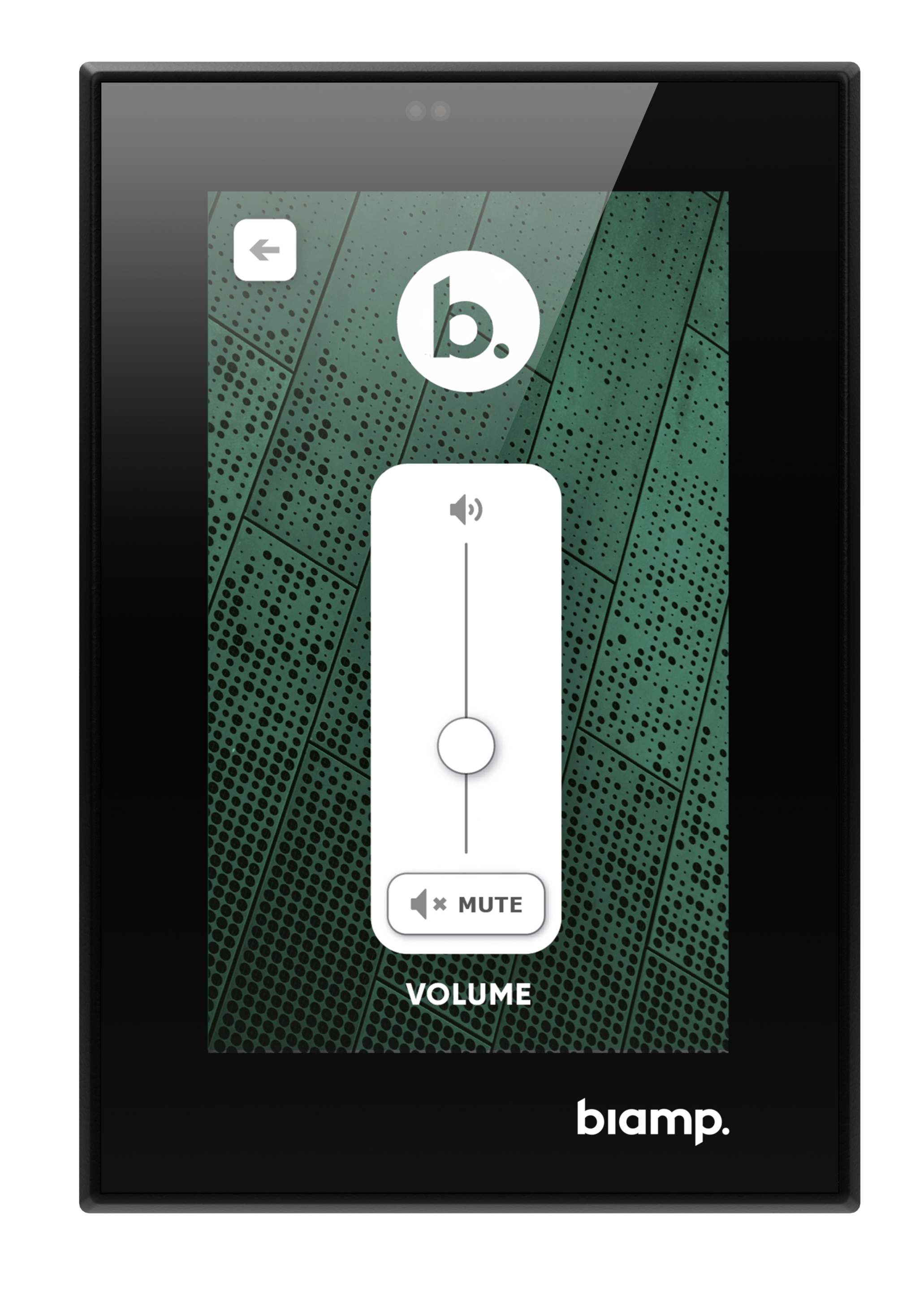

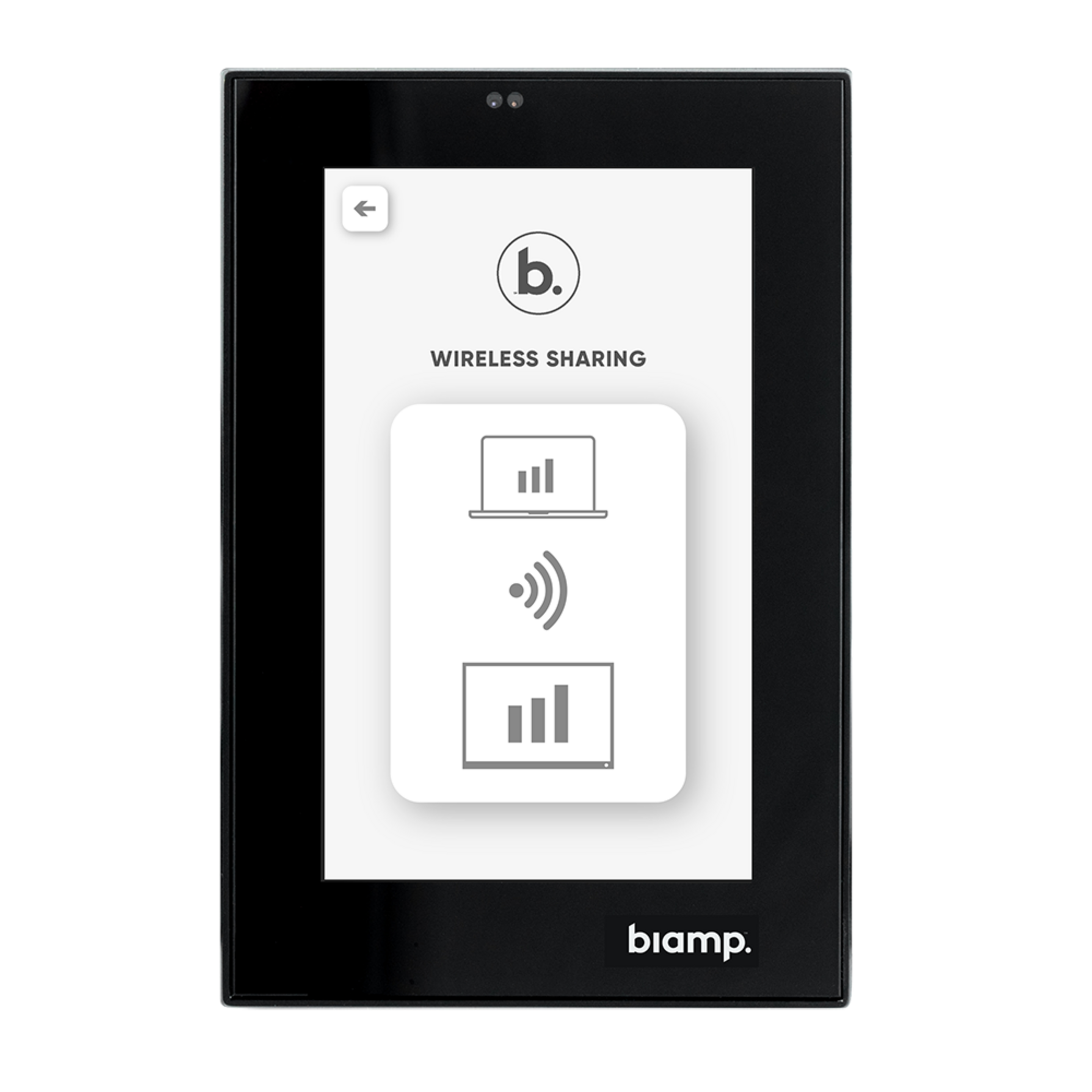

  The Apprimo Touch 4 is a 4-inch touch panel intended for smaller rooms. Similar in size to a smartphone, the Apprimo Touch 4 feels familiar and intuitive to use. It is PoE powered and includes PIR sensors that turn the screen on automatically and adjusts the screen brightness based on the ambient light level of the room.
  The user interface is fully configurable with Project Designer software, which includes several themes and customizable templates to choose from. The Apprimo Touch 4 is operated by a separate Impera controller, allowing you to customize a solution that perfectly matches the customer requirements.
  Available in black.

• Feature	Details
  Display Type	High-Contrast Capacitive Touch LCD
  Display Size	4″ (102 mm) diagonal
  Display Resolution	800×480
  Brightness	400 nits
  Network Connection	RJ-45 with Ethernet (Cat 5e+)
  Mini USB Port	USB 2.0
  Sensors	Proximity, Ambient Light
  Controller Compatibility	Impera Alfa II, Lima, Tango, Sierra II
  Power	PoE (IEEE 802.3at Class 2, 7W)
  Dimensions (H x W x D)	4.5″ x 3.0″ x 1.6″ (115 x 77 x 41 mm)
  Weight	0.35 lbs (160 g)
  Included Accessories	Mounting bracket, screws, Ejector Pin, USB-OTG adapter, Polishing cloth
  Operating Temperature	32 – 104° F (0 – 40° C)
  Humidity	10-90% RH (non-condensing)
  Altitude	0-6,600 ft (0-2000m) MSL
