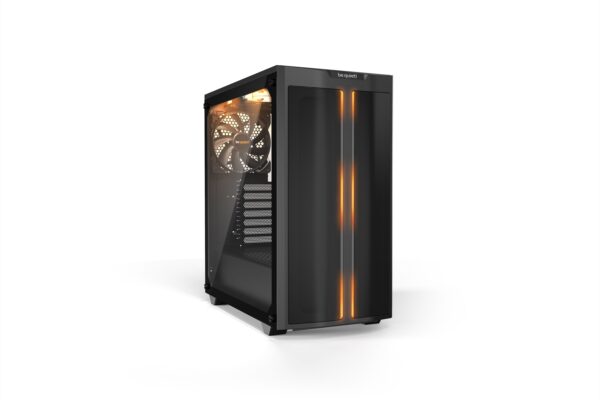

Be Quiet! Pure Base 500DX Black PC Case
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performance
For all who strive for maximum performance and especially with water-cooled systems, the Pure Base 500DX Black with its extremely air-permeable front and top cover is the right choice. The dust filters on the front and bottom are easy to remove for cleaning.3 PREINSTALLED PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the fans at the front, top and rear are 140mm models, resulting in very quiet operation. Up to two 140mm fans can be installed in addition.IMPRESSIVE ILLUMINATION
ARGB light at the front and inside the case
ARGB LEDs offer multiple colors and modes to individualize the look of the case from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.SMART I/O PORT
State-of-the-art technology for your system

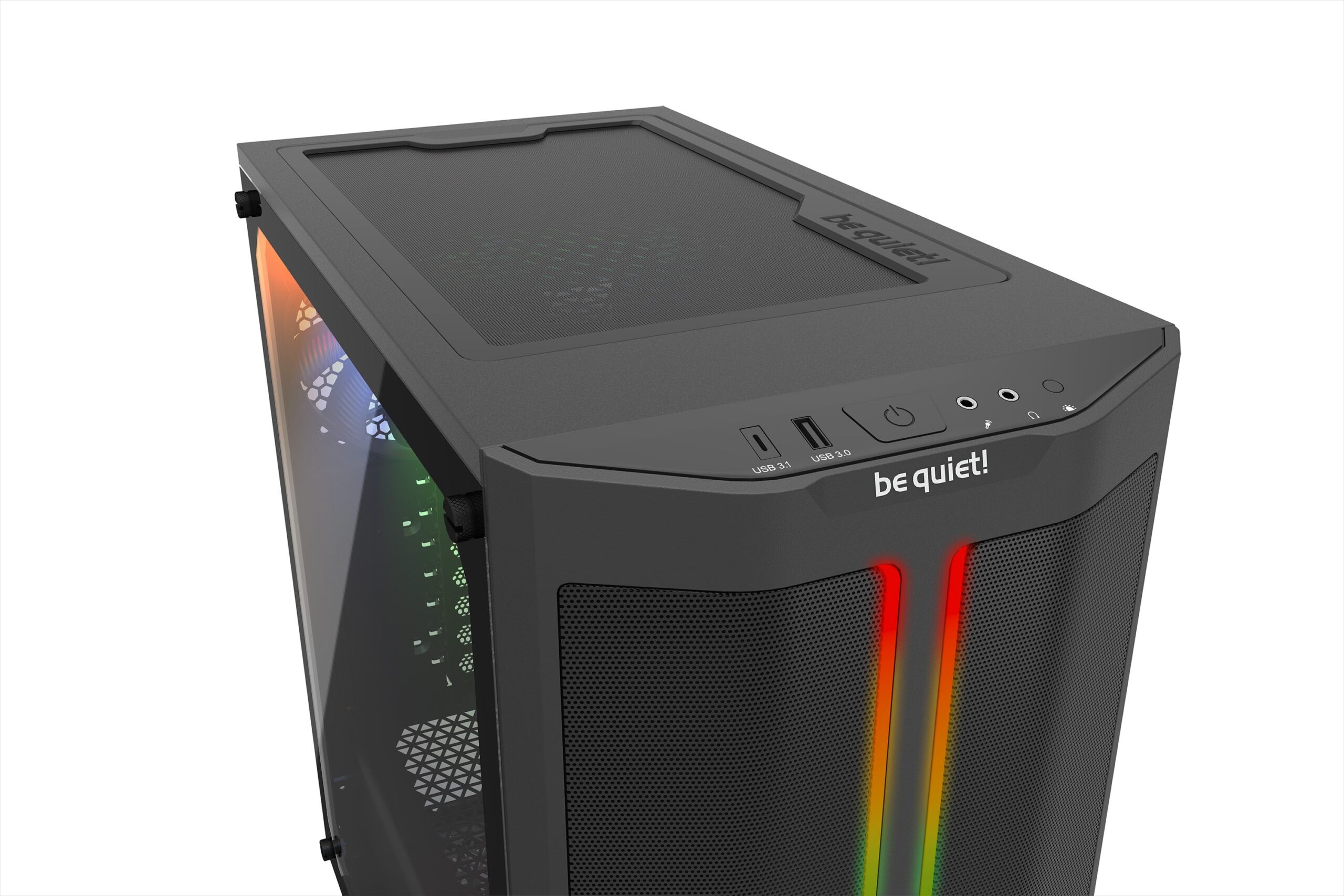

A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500DX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.EYE-CATCHING FEATURES
And great cable routing possibilities
Pure Base 500DX Black offers various options for installing up to 5 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.FUNCTIONAL PSU SHROUD
Offering a neat interior

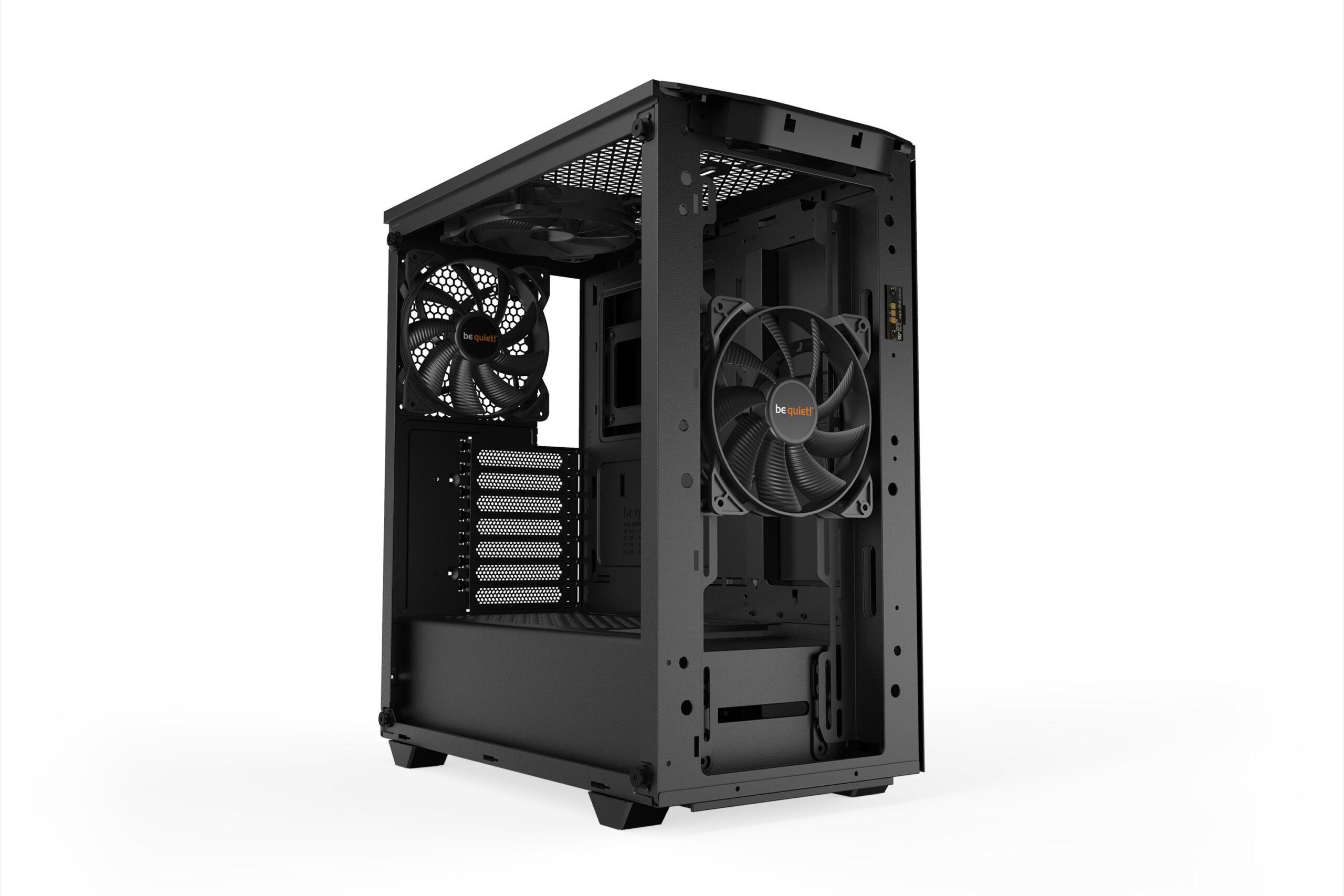

The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.TEMPERED GLASS WINDOW

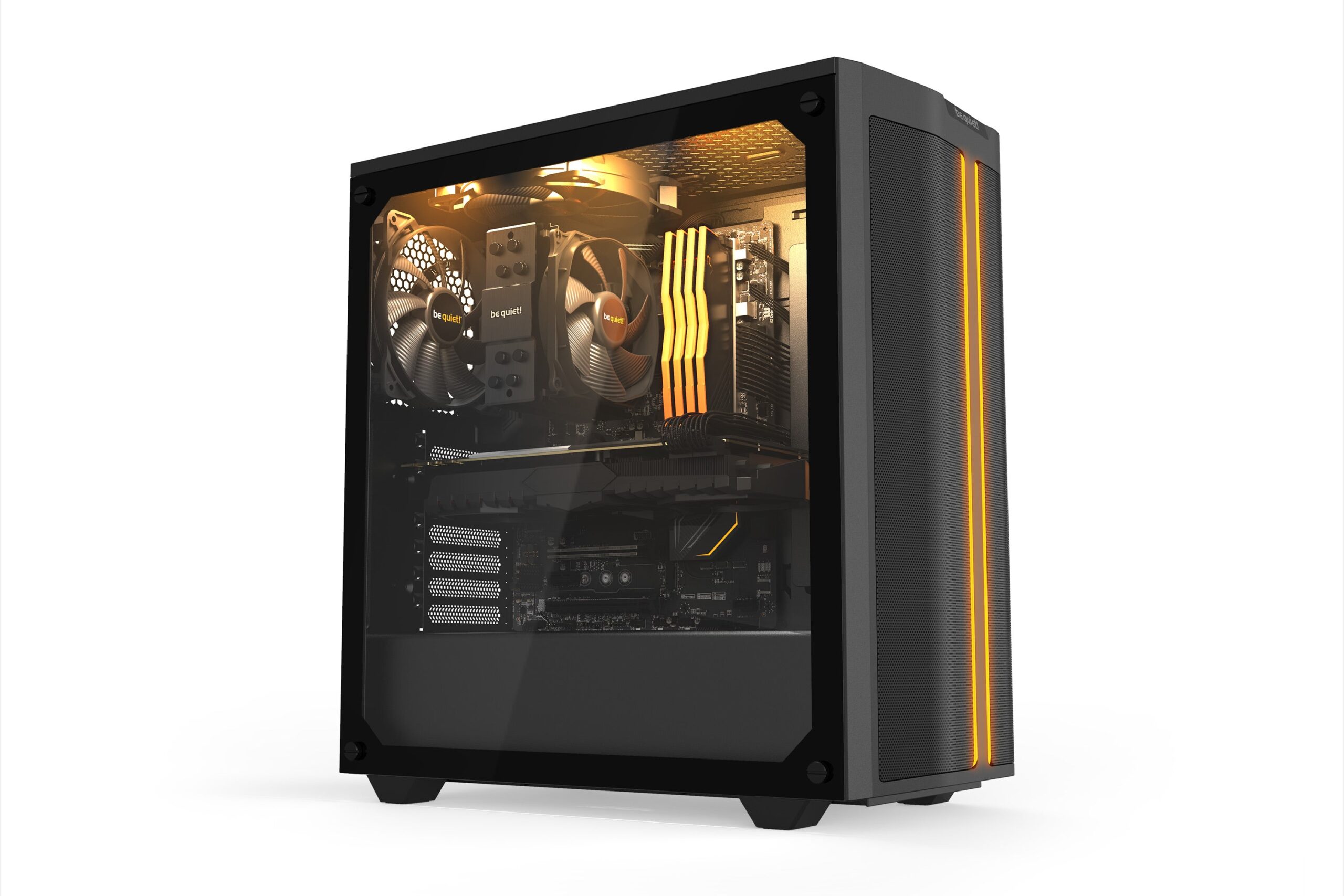

A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.Awards
Functionality cookies are not set.
You cannot proceed without functionality cookies. -
Feature Details Model Pure Base 500DX Black Color option Black Motherboard compatibility ATX / M-ATX / Mini-ITX Case size excl. stands (L x W x H), (mm) 450 x 232 x 443 Case size incl. stands (L x W x H), (mm) 450 x 232 x 463 Volume (l) 45.25 PSU form factor ATX PS/2 Net weight (kg) 7.8 Expansion slots 7 Pre-installed fans – Fan at top: 1x Pure Wings 2 140mm – Fan at front: 1x Pure Wings 2 140mm – Fan at rear: 1x Pure Wings 2 140mm Dimensions (L x W x H) of Fans (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25 Fan speed at 100% PWM / 12V (rpm) 900 Airflow at 100% PWM / 12V (CFM / m3/h) 55.8 / 94.8 Air Pressure at 100% PWM / 12V (mm H2O) 0.6 Noise level at 100% PWM / 12V (dB(A)) 17.1 Voltage range (V DC) 12 Input power (W) 1.1 Input current (A) 0.09 Connector 3-pin Lifespan (h / 25°C) 80,000 Fan controller – Maximum fan installation – Top (mm): 2x 120 / 2x 140 – Front (mm): 3x 120 / 2x 140 – Rear (mm): 1x 140 PSU shroud – Optional radiator installation – Top (mm): 120 / 240 – Front (mm): 120 / 140 / 240 / 280 / 360 – Rear (mm): 120 / 140 PSU compatibility – Maximum dimensions excl. bottom fan (mm): 258 – Maximum dimensions incl. bottom fan (mm): 225 Graphics card – HDD cage (in height of graphics card) installed (mm): 369 – HDD cage (in height of graphics card) removed (mm): 369 – Maximum PCIe slots with vertical graphics card (pcs.): – Drive bay capacity – 5.25 bays (pcs.): – – 3.5 slots (scope of delivery): 2 – 3.5 slots (max.): 2 – 2.5 slots (scope of delivery): 5 – 2.5 slots (max.): 5 Cooling – Max. construction height of CPU cooler unit (mm): 190 – Airflow channel: Front / Top / Rear Lighting – LED illumination: Front LED ARGB / Internal ARGB – LEDs (pcs.): 24 – LED type: ARGB – 5V – LEDs synchronizable with controller/motherboard: ✓ I/O Panel – USB 3.2 Gen. 2 Type C: 1 – USB 3.2 Type A: 1 – USB 2.0: – – HD Audio I/O: Mic + Audio Insulation and damping – Top panel insulation mats: – – Front panel insulation mats: – – Side panel insulation mats: ✓ – Anti-vibration decoupled HDD: ✓ – Anti-vibration decoupled fan: – – Anti-vibration decoupled PSU: ✓ – Anti-vibration decoupled motherboard-tray: – Scope of delivery – Screw set (Drives/Motherboard): ✓ – Additional standoffs (pcs.): – – SSD bracket for PSU shroud: – – LED strips (pcs.): – – Cable ties (pcs.): 6 / 4 (Velcro) – Screw box: – – VGA holder: – – VGA holder for inverted layout: – – Mesh Front Panel: – – ODD Bracket: – – Fan / Radiator bracket for multi mounting panel: – Removeable dust filters – Top: – – Front: 1 – Side: – – Bottom: 1 Material – Top cover: ABS – Front panel: ABS – Side panel: Steel – Side panel window: Tempered glass – Stands: ABS Safety certification – Approvals: CE, UKCA – Environmental directives: – – RoHS: ✓ – Reach: ✓ – WEEE: – – Triman: ✓ Service – Warranty (Years): 3 – International hotline / free of charge: ✓ / DE, FR, US Logistics data and RRP – Article number: BGW37 – EAN code: 4260052187937 – Dimensions, package (L x W x H), (mm): 510 x 285 x 494 – Gross weight, package (kg): 8.49 – Pieces per packaging unit: 1 -
Description Downloads BGW37DataSheet.pdf Download BGW37UserManual.pdf Download
