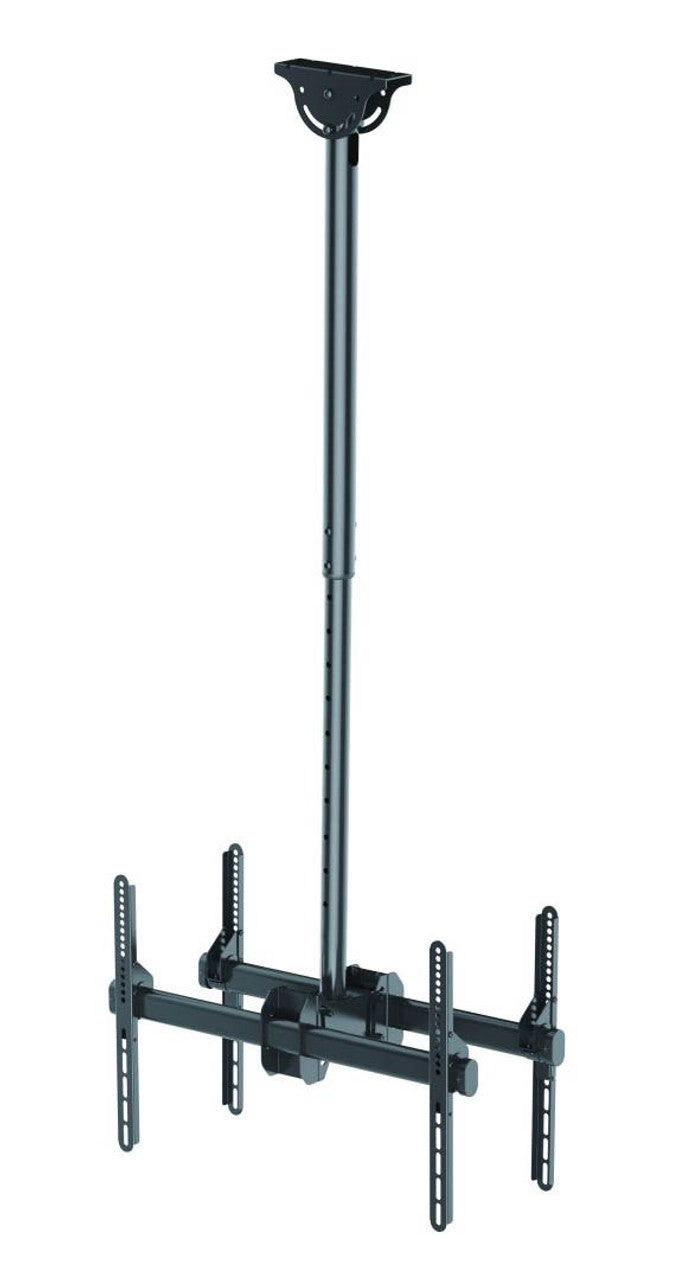

Back-to-Back Telescopic Ceiling Mount up to 32″-55″ Screen
- Description
- Specifications
- Warranty
-
Tilting range of -20° to +5°
Full swivel range of 360°
Level adjustment of -3° to +3°
Suitable for most 32″-55” screens
Maximum VESA pattern: 600x400mm
Maximum weight capacity: 45kg/99lbs (each screen)
Total height range: 1278-1778mm
Distance between two mounts (at 0°):240mm -
Mount Type Back-to-Back Tilting Telescopic Ceiling Mount Mounting Pattern Universal Material Steel Material Finish Powder Coated Recommended Screen Size 32″-55″ Weight Capacity 45kg/99lbs (each screen) Load Tested 3 times weight capacity approved Maximum Hole Pattern 605x405mm Maximum VESA Pattern 600×400 Compatible VESA Patterns 200×200, 400×200, 300×300, 400×400, 600×400 Tilt -20° to +5° Swivel 360° Level Adjustment -3° to +3° Rotation 0° Profile 1060-1560mm Column Rotation -90°, -60° to +60°. +90° -
Warranty
3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.
Covers hardware failure but excludes accidental damage or user error.
All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
Free lifetime telephone and email technical support.
