B-Tech SYSTEM X VESA 800 Flat Screen Interface Arms for BT8390 (Pair)

• Description
• Specifications
• Downloads

• B-Tech SYSTEM X VESA 800 Flat Screen Interface Arms for BT8390 (Pair)

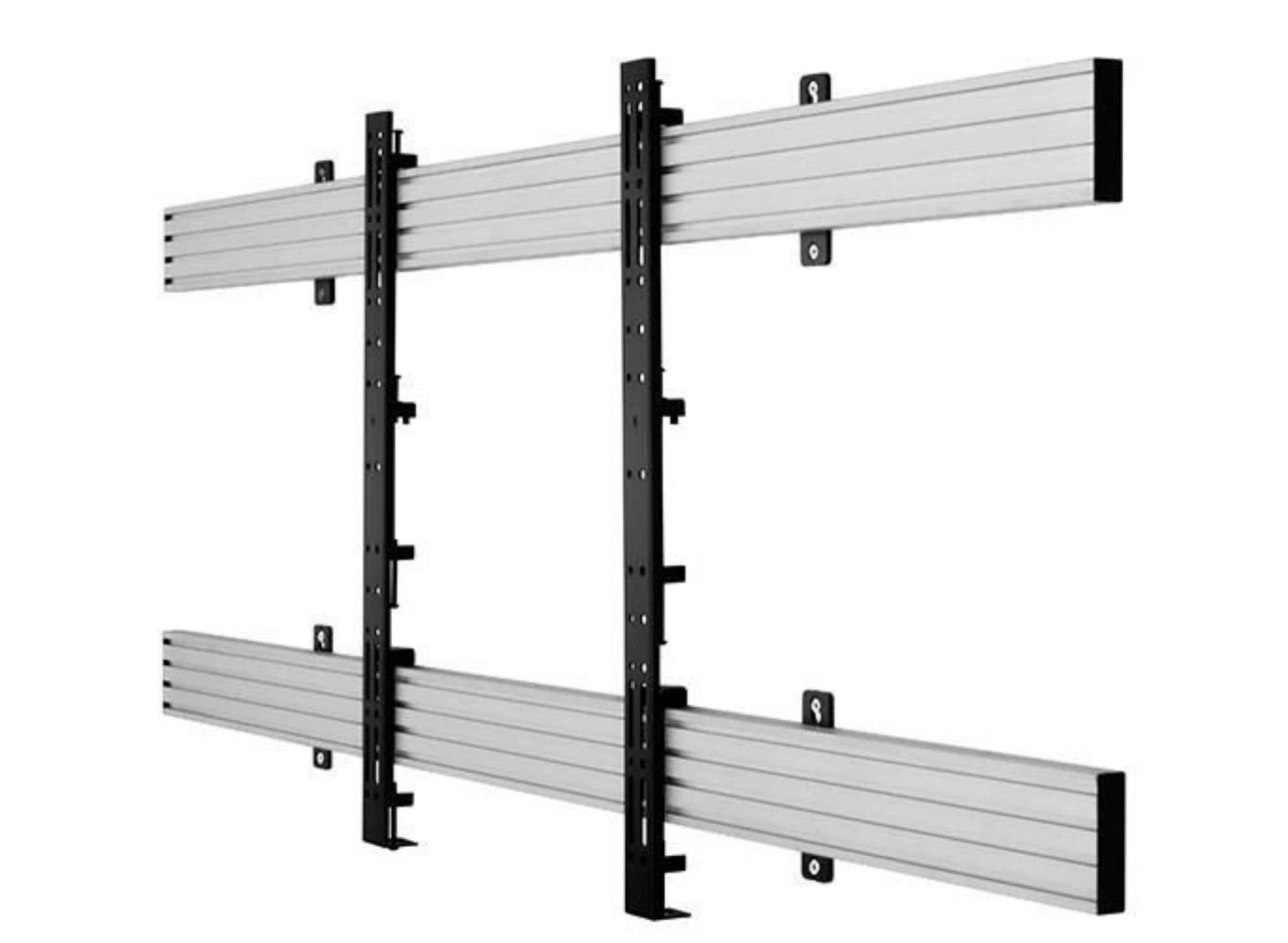

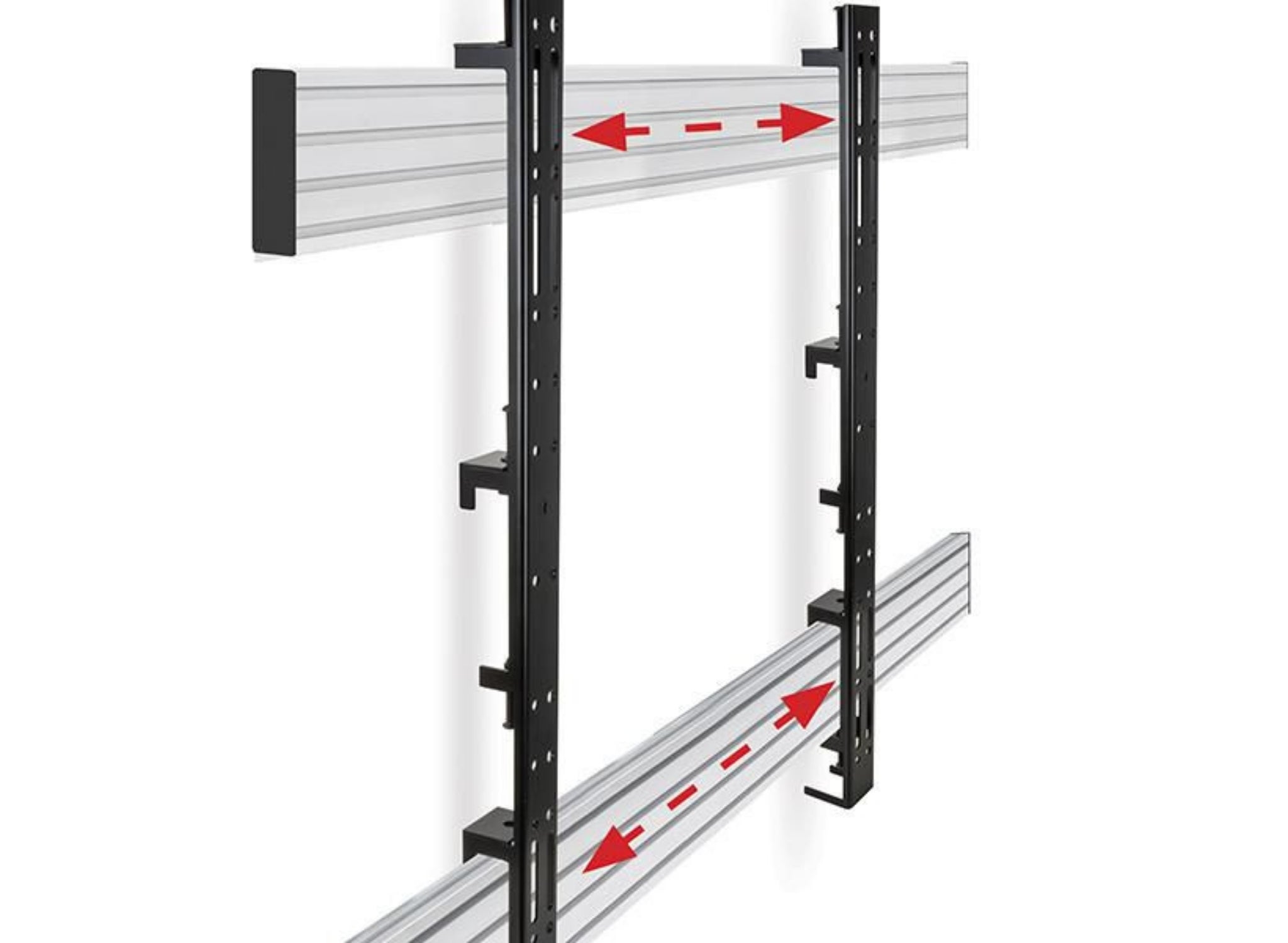

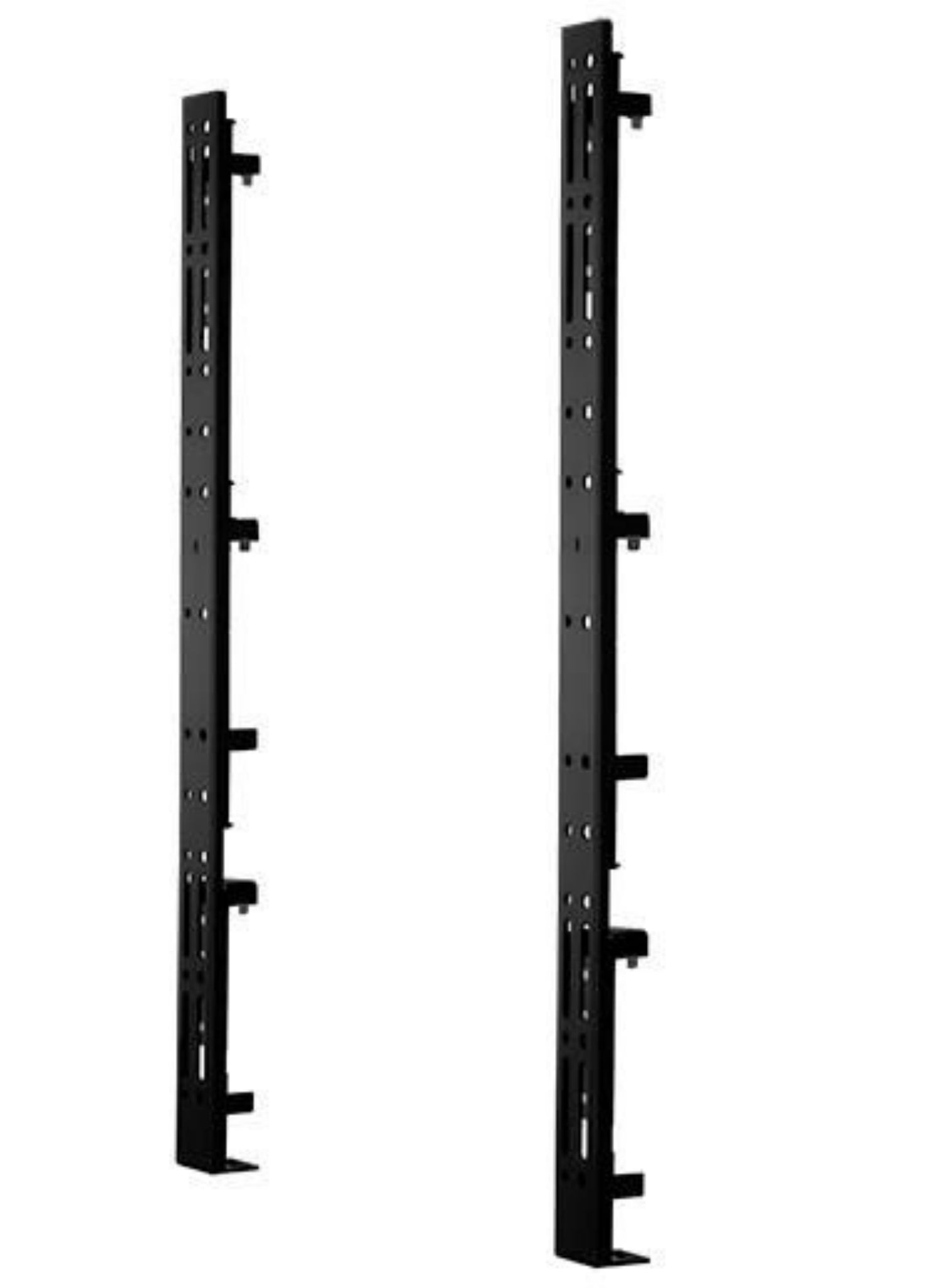

  These interface arms are designed to mount XL screens in a fixed position across one or two System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide post installation height adjustment and a mounted depth of 51.5mm from the wall allows easy access for cables and connectors.

• Feature	Details
  Certification	TUV
  Max Screen Size	72″
  Max Weight Capacity	200 kg
  Min Screen Size	42″
  Mounting Type	Wall
  Number of Displays	1
  Product Colour	Black
  Product Type	Flat Panel Mount Arm
  UNSPSC Code	45111809
  Logistics Data
  – HS Code	83024200
  Package Dimensions
  – Depth	93 cm
  – Gross Weight	4.56 kg
  – Height	6.5 cm
  – Width	9 cm
  Product Dimensions
  – Net Weight	4 kg
  – Depth	6.4 cm
  – Height	88.6 cm
  – Width	5.8 cm
  Technical Details
  – Sustainability Certificates	TUV
  Vendor Information
  – Brand Name	B-Tech
  – Homepage	B-Tech
