B-Tech SYSTEM X VESA 200 Flat Screen Interface Arms with Tilt for BT8390 (Pair)

• Description
• Specifications
• Downloads

• B-Tech SYSTEM X VESA 200 Flat Screen Interface Arms with Tilt for BT8390 (Pair)


  System X Universal Interface Arms with Tilt – VESA 200, up to 47″, 70kg max, Tilt +20°, Black

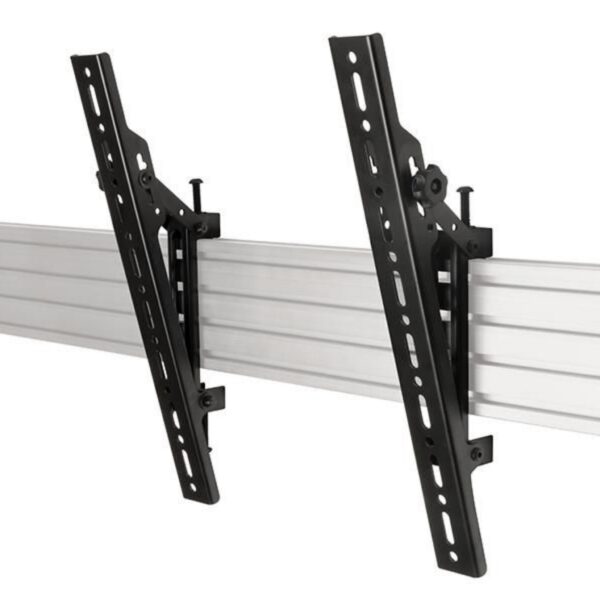

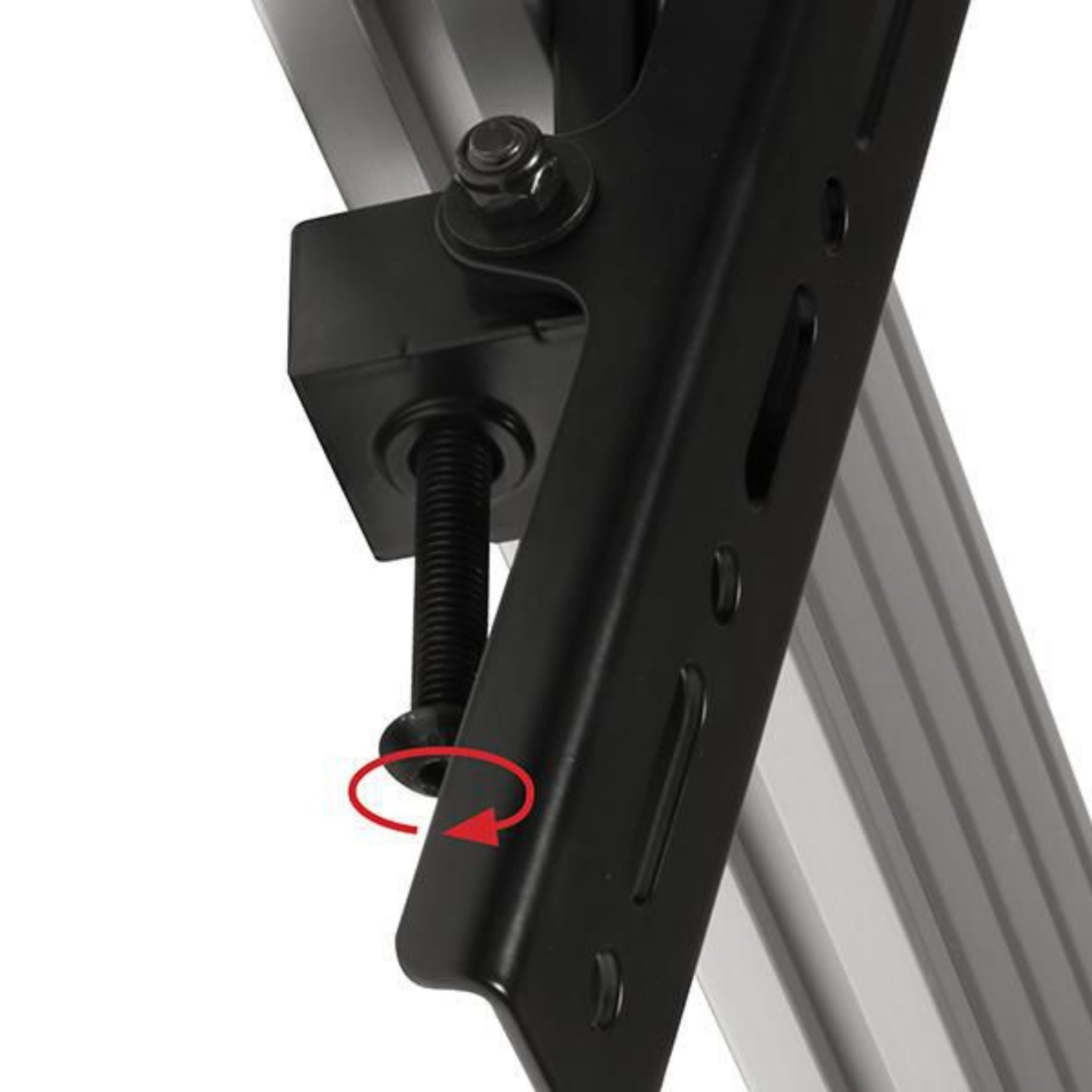

  Ideal for single row, multi-screen installations, these interface arms are designed to mount small to medium sized screens in a tilted position along System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide post installation height adjustment and thumbwheels allow easy tool-less adjustment of the tilt angle up to 20°.

• Feature	Details
  Max Screen Size	47″
  Max Weight Capacity	70 kg
  Min Screen Size	32″
  Mounting Type	Rail
  Number of Displays	1
  Panel Mounting Interface	200 x 200 / 600 x 200 mm
  Product Colour	Black
  Product Type	Flat Panel Mount Arm
  Tilt Angle Range	0 – 20°
  UNSPSC Code	45111809
  Logistics Data
  – HS Code	83024200
  Package Dimensions
  – Depth	46.2 cm
  – Gross Weight	3 kg
  – Height	7.7 cm
  – Width	12.4 cm
  Packaging Content
  – Quantity per Pack	2 pcs
  – Screws Included	Yes
  Product Dimensions
  – Net Weight	2.9 kg
  Vendor Information
  – Brand Name	B-Tech
  – Homepage	B-Tech
  Warranty	5 Years
  Categories	ProAV Solutions, Mounts & Furniture, Accessories, Monitor Mount Accessories

• Description	Downloads
  B-Tech SYSTEM X VESA 200 Flat Screen Interface Arms with Tilt for BT8390 (Pair) DataSheet	Downloads
  B-Tech SYSTEM X VESA 200 Flat Screen Interface Arms with Tilt for BT8390 (Pair) User Manual	Downloads
  B-Tech SYSTEM X VESA 200 Flat Screen Interface Arms with Tilt for BT8390 (Pair) Drawing	Downloads
