B-Tech System X Horizontal Mounting Rail 1.5 m Black | BT8390-150/B

• Description
• Specifications
• Downloads

• B-Tech System X Horizontal Mounting Rail 1.5 m Black | BT8390-150/B

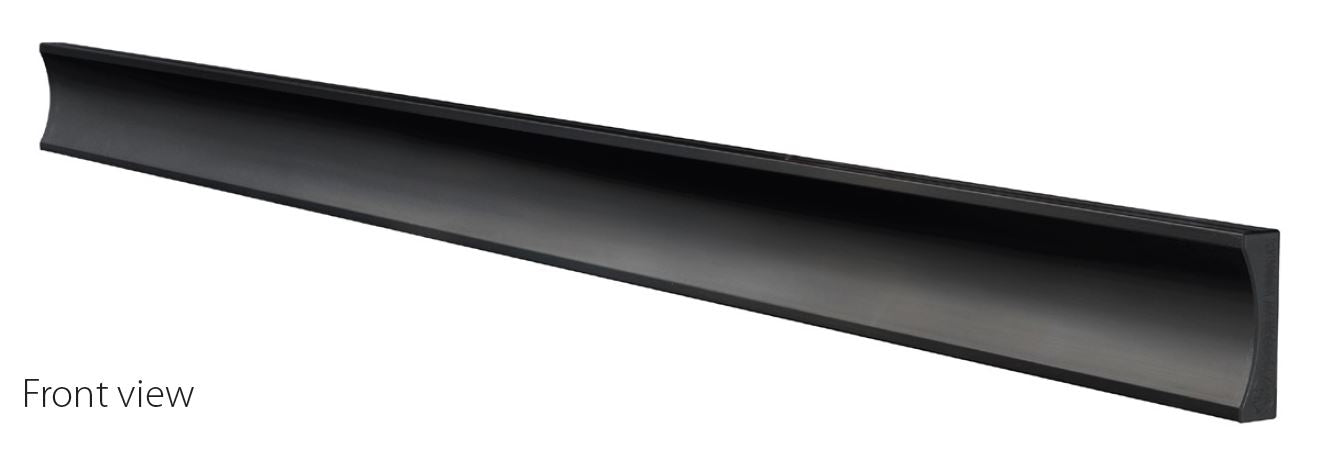

  System X Horizontal Mounting Rail, 1.5 m, Black
  BT8390 horizontal mounting rails are the central component of any System X installation, whether it be for a complex multi-screen install or a single screen application. Made from aluminium, the rail itself is sturdy yet lightweight and is designed to support a variety of interface arms and mounts, allowing screens and other AV equipment to be fitted to the rail. Available in a range of lengths, the BT8390 can be mounted onto walls, poles or System X support columns using a range of different fixing kits (available separately). Rails can be cut to shorter lengths as required or joined together using extension kits (also available separately) for much longer installs.

• Feature	Details
  Housing Material	Aluminium
  Product Colour	Black
  Product Type	Rail
  UNSPSC Code	45111809
  Package Dimensions
  – Gross Weight	6 kg
  Packaging Content
  – Quantity per Pack	1 pc
  Product Dimensions
  – Net Weight	5.5 kg
  – Depth	3 cm
  – Height	12 cm
  – Width	150 cm
  Vendor Information
  – Brand Name	B-Tech
  – Homepage	B-Tech
  Warranty	5 Years
  Categories	ProAV Solutions, Mounts & Furniture, Accessories, Monitor Mount Accessories

• Description	Downloads
  B-Tech System X Horizontal Mounting Rail 1.5 m Black | BT8390-150/B DataSheet	Downloads
  B-Tech System X Horizontal Mounting Rail 1.5 m Black | BT8390-150/B Installation Guide	Downloads
  B-Tech System X Horizontal Mounting Rail 1.5 m Black | BT8390-150/B Drawing	Downloads
