B-Tech SYSTEM X Adjustable Height and Depth Rail Mounting Bracket | BT8390-WFK6/B

• Description
• Specifications
• Downloads

• B-Tech SYSTEM X Adjustable Height and Depth Rail Mounting Bracket


  Ideal for uneven walls

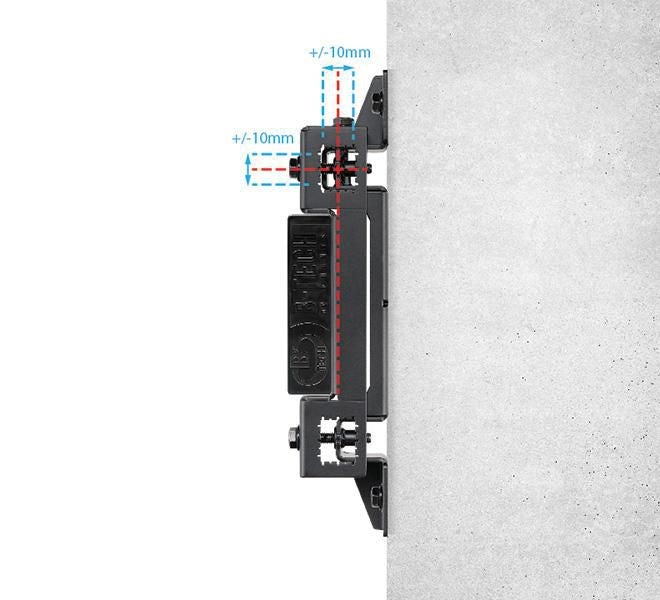

  The BT8390-WFK6 is an adjustable wall bracket designed for the installation of dvLED video walls. As part of the System X Range, it is compatible with B-Tech’s range of horizontal mounting rails and features both height and depth adjustment to give full, precise control over the install across every axis, no matter how uneven the wall surface is. Keyhole fixing points make installation quick and easy and the bracket is also compatible for mounting onto vertical columns and poles, meaning it can be used in floor stand applications as well as for wall mounted installations.

• Feature	Details
  Certification	TUV
  Compatibility	BT8390, BT8393
  Housing Material	Metal
  Max Weight Capacity	50 kg
  Product Colour	Black
  Product Type	Rail Module
  UNSPSC Code	45111809
  Logistics Data
  – HS Code	83024200
  Packaging Content
  – Manual	Yes
  – Quantity per Pack	1 pc
  – Screws Included	Yes
  Product Dimensions
  – Net Weight	1.32 kg
  – Depth	5.9 cm
  – Height	31 cm
  – Width	5.6 cm
  Sustainability Certificates	TUV
  Vendor Information
  – Brand Name	B-Tech
  – Homepage	B-Tech
  Categories	ProAV Solutions, Mounts & Furniture, Accessories, Monitor Mount Accessories

• Description	Downloads
  B-Tech SYSTEM X Adjustable Height and Depth Rail Mounting Bracket | BT8390-WFK6/B DataSheet	Downloads
