B-Tech Extra-Large Universal Flat Screen Ceiling Mount (VESA 1100 x 700) – 1m | BT8448-100/BB

• Description
• Specifications
• Downloads

• B-Tech Extra-Large Universal Flat Screen Ceiling Mount (VESA 1100 x 700) – 1m

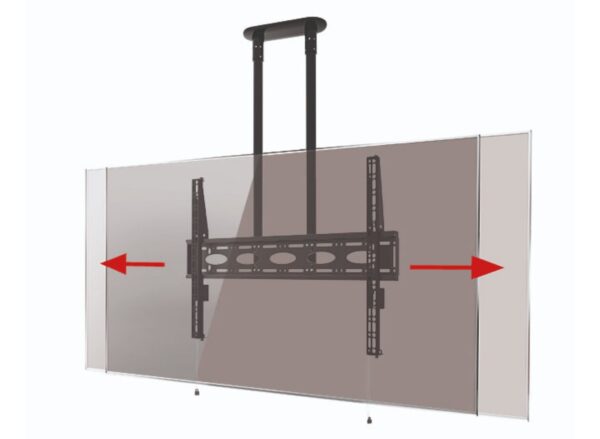

  Extra-Large Flat Screen Ceiling Mount, 1 m, 65″ – 120″, max 130 kg, Black



  Designed to ceiling mount screens over 65″, the BT8448 is an extra-large ceiling mount which is available with a choice of three different drop lengths; 1m, 1.5m, 2m and 3m. The twin pole design and heavy duty steel provides strength and rigidity, allowing for a maximum load of up to 130kg. Other great features include post installation screen alignment and height adjustment screws to help level the screen once mounted. Available with a choice of Black or Chrome poles.

• Specification	Details
  Cord Management	Yes
  Housing Material	Steel
  Product Color	Black
  Max Screen Size	65″ – 120″
  Max VESA Mount	1100 x 730 mm
  Max Weight Capacity	130 kg
  Mounting Type	Ceiling
  Number of Displays	1
  Suitable For	Public display
  Package Weight	2.5 kg
  Product Dimensions	115 x 15 x 98 cm
  Net Weight	2 kg
  Brand	B-Tech
  Warranty	10 years

• Description	Downloads
  B-Tech Extra-Large Universal Flat Screen Ceiling Mount (VESA 1100 x 700) – 1m | BT8448-100/BB DataSheet	Downloads
  B-Tech Extra-Large Universal Flat Screen Ceiling Mount (VESA 1100 x 700) – 1m | BT8448-100/BB Installation Guide	Downloads
  B-Tech Extra-Large Universal Flat Screen Ceiling Mount (VESA 1100 x 700) – 1m | BT8448-100/BB Technical Drawing	Downloads
