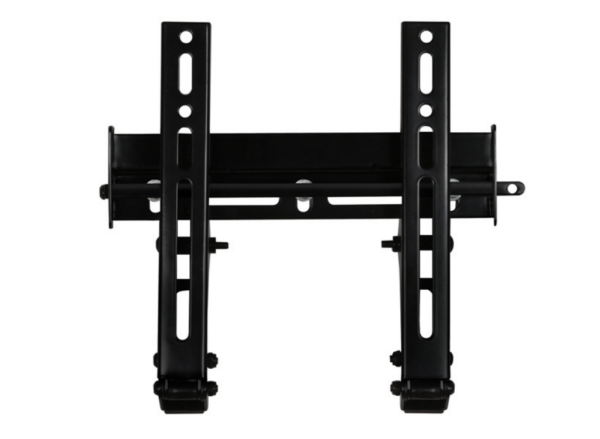

• B-Tech BTV501-B Universal Flat Screen Wall Mount With Tilt

  Designed to mount medium sized screens the BTV501 is ideal for home installations. With 5 fixed tilt poistions up to +15° available, this mount features a simple ‘hook-on’ installation and post installation screen alignment making screen mounting as quick and simple as possible. The BTV501 also features a security locking bar to help prevent un-authorised removal of the screen. All fixings and mounting hardware included.


  Features

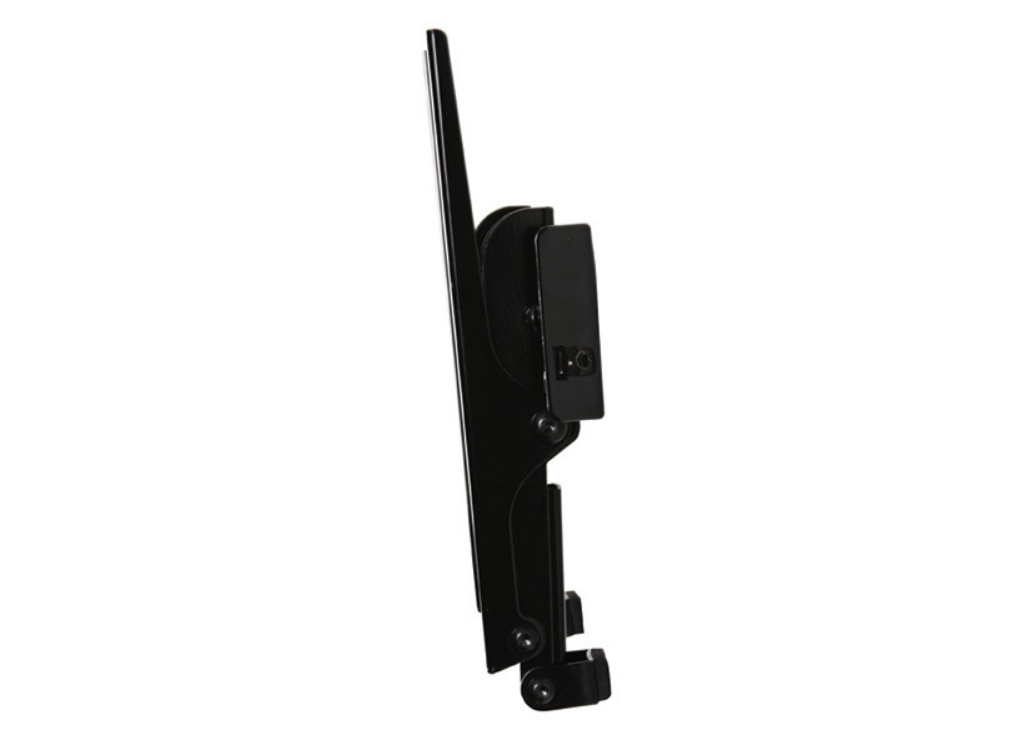

  5 fixed tilt positions up to +15°
  Lateral adjustment of screen once mounted
  Security locking bar to prevent unauthorised screen removal
  Suitable for concrete, brick or stud walls up to 10”
  Simple ‘hook-on’ installation
  All mounting hardware included
  Available in Black

• Feature	Specification
  Recommended Screen Size	Up to 47” (110cm)
  Max Load	40kg (88lbs)
  VESA® & Non-VESA Fixings	Up to 225 x 200
  Tilt	+15°
  Distance from Wall	Flat: 44mm (1.7”) / Full tilt: 101mm (4”)

• Description	Downloads
  Specification Sheets	Downloads
  Installation Guide	Downloads
  Technical Drawing	Downloads
