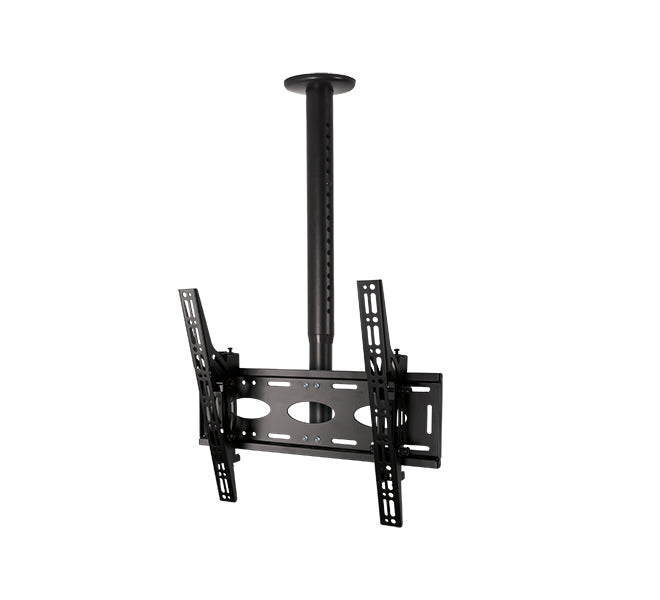

B-Tech BT8426 Adjustable Drop Universal Flat Screen Ceiling Mount With Tilt
- Description
- Specifications
- Downloads
- Warranty
-
- Designed to ceiling mount screens up to 50kg, the BT8426 features an adjustable drop of 625mm – 950mm in increments of 25mm.The mount uses B-Tech’s unique ‘Torsion-Tilt’ mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
- Unique ‘Torsion-tilt’ mechanism for tool-less tilt adjustment
- Tool-less adjustable ceiling drop in increments of 25mm (1″)

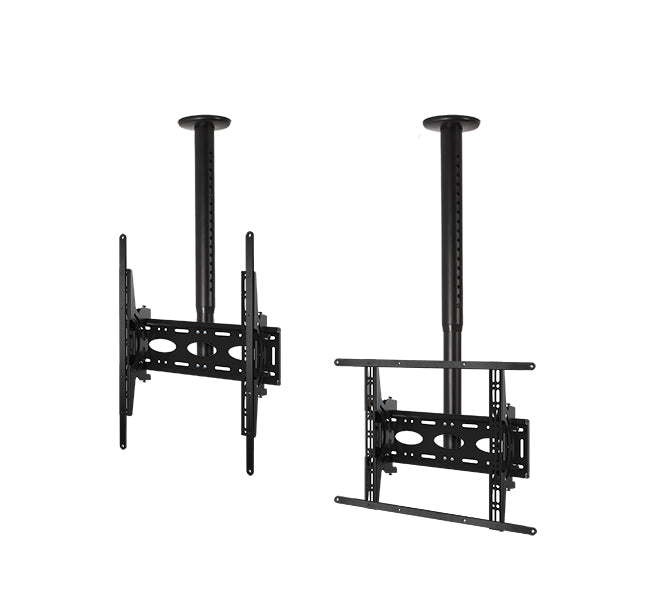

- Suitable for landscape or portrait mounting

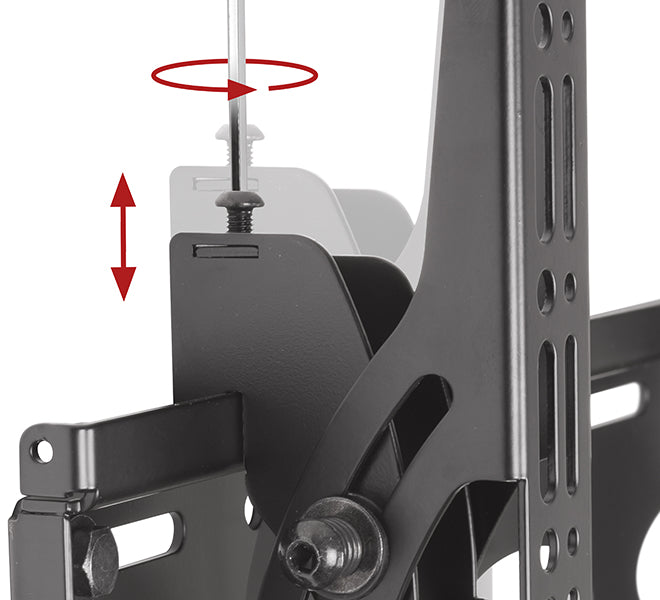

- Arms feature levelling screws to adjust the screen height
- Lateral adjustment of screen once mounted

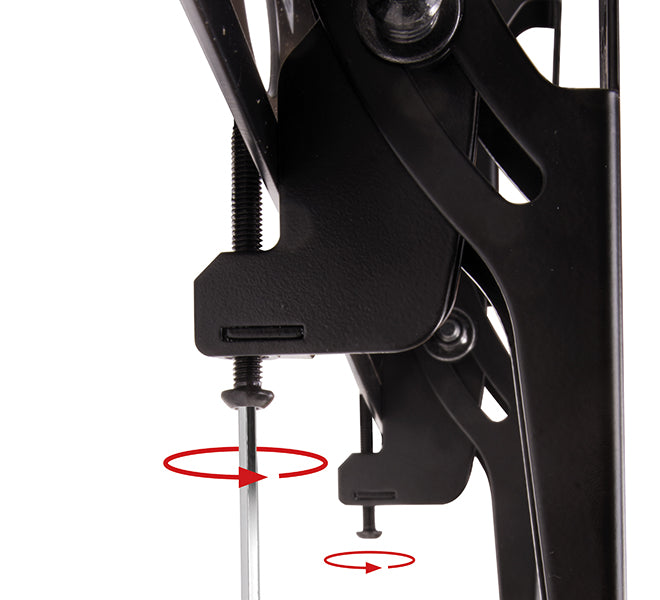

- Security screws help prevent unauthorised removal of screens
- Integrated cable management
- Cover plate included for a smart installation
- Simple ‘hook-on’ installation with all mounting hardware included
-
- Recommended screen size: up to 65″ (165cm)
- Max load: 50kg (110lbs)
- VESA® compatibility (as standard): up to 468mm x 400mm
- VESA® compatibility (with included adaptors): up to 600mm x 400mm
- Tilt adjustment: +/-15°
- Ceiling drop: Min. 625mm (24.6″) – Max. 950mm (37.4″)*
- Colour: Black
*From the ceiling to the centre of the mount
-
Specification Sheet
Specification Sheet – English (PDF)
Fiche de Spécifications – Français (PDF)
Installation Guide
Installation Guide (PDF)
Technical Drawing
Technical Drawing (PDF)
Technical Drawing (DXF)
-
BTECH AV MOUNTS
5 Years Manufacturer Warranty
