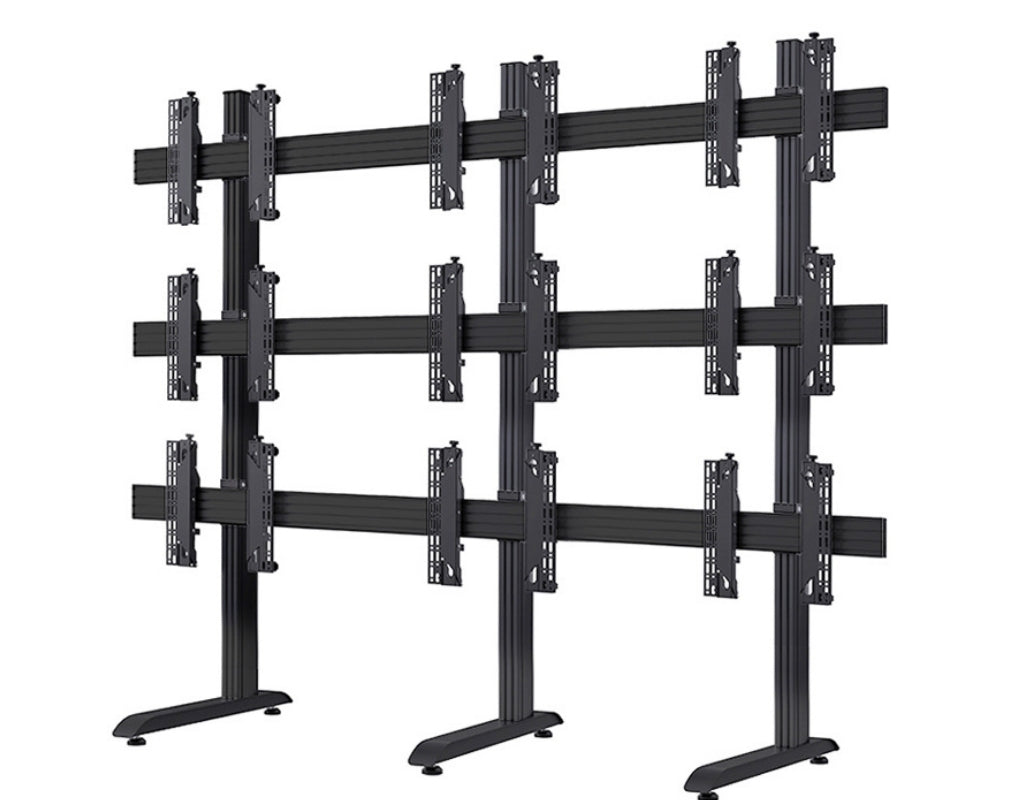

B-Tech BT8370-3X3/BB Universal Video Wall Stand For 3×3 Video Walls
- Description
- Specifications
- Warranty
-
The BT8370-2×2 and -3×3 are pre-packaged kits designed for the most common video wall setups. There are actually over 2000 different configurations of BT8370 available! Visit our online configuration tool to specify setups of up to 6×4 with different options such as screen size, orientation and leg height or ask for more details.
Features Bracket Type Video Wall Minimum VESA Compatibility 200 x 200 mm Maximum VESA Compatibility 600 x 400 mm Max Weight 50 KG Colour Black Screen Size 46 – 55 Inch -
System X Configurator
• Universal design for all video wall screens from 46” up to 55” / 50kg (per screen)
• Fits screens with VESA and non VESA fixings
• from 200 x 200mm up to 600 x 400mm
• Dimensions: W: 3005mm D: 950mm H: 2498mm up to 2699mm
• Tool-less micro-adjustments at 8 points for seamless display alignment
• Integrated cable management
• Adjustable levelling feet
• Collar compatible accessories such as shelves can
• be fitted directly to the extrusion
• Includes re-usable screen position spacer to aid installation
• Safety screws to help prevent unauthorised removal of the screen
• Vertical columns available in Black or Silver
• Horizontal rails available in Silver
• Base and interface arms available in Black -
BTECH AV MOUNTS
5 Years Manufacturer Warranty
