B-Tech BT7831/B Wall Mounting Bracket For Ø50mm Poles

• Description
• Specifications
• Downloads

• B-Tech BT7831/B Wall Mounting Bracket For Ø50mm Poles

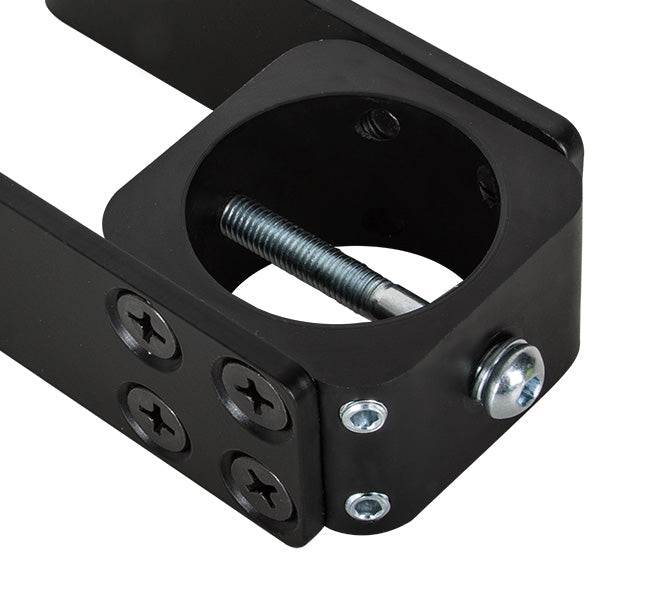

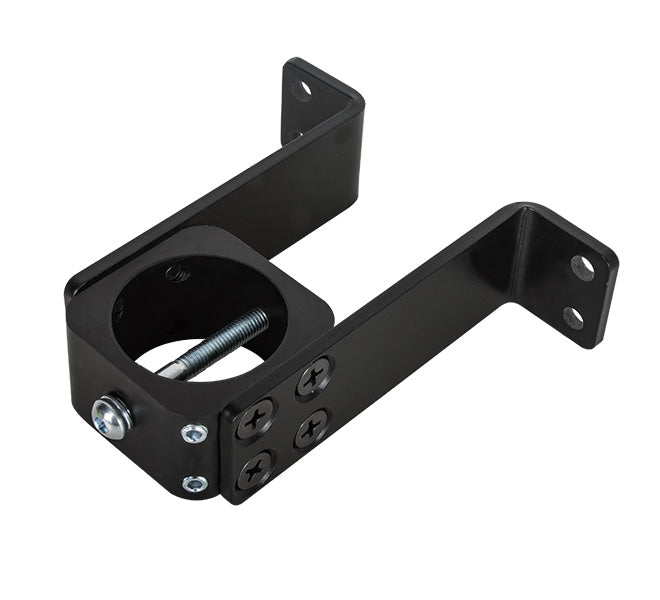

  Designed to mount Ø50mm poles onto walls, the BT7831 is ideal for installing flat screens and other AV equipment at locations where it is not possible to fix to the floor or ceiling (or both) or when there is a large section of wall behind the installation which is not strong enough to fix to.

  Allows Ø50mm poles to be mounted vertically on to walls

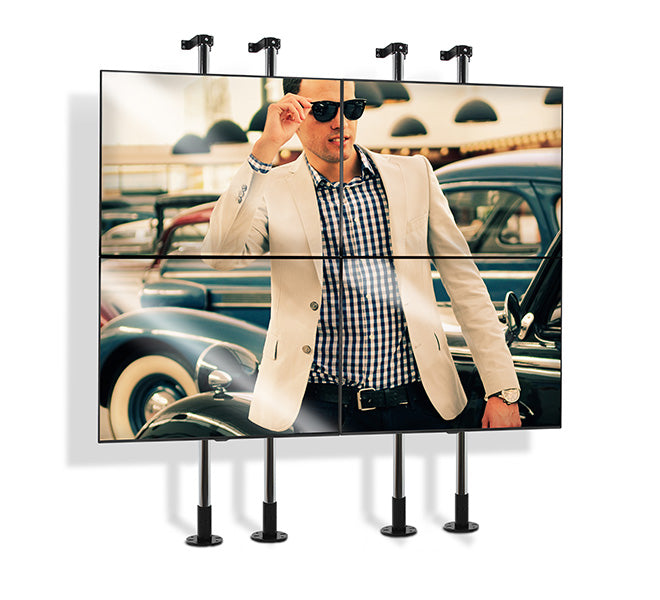

  Ideal for use with B-Tech ceiling / floor mounts to create ceiling-to-wall or floor-to-wall installations
  Heavy duty steel capable of supporting substantial loads
  Supplied with safety bolt for secure installation
  All mounting hardware included

• Attribute	Specification
  Max Load	150kg (330.7lbs)*
  Configuration	Use 2x BT7831 for a wall-mounted pole installation
  	Use 1x BT7831 with a B-Tech ceiling/floor mount
  	for a ceiling-to-wall or floor-to-wall installation
  Distance from Wall	145mm (5.7″) (113mm (4.4″) to center of pole)
  Color	Black

• Description	Downloads
  Specification Sheet	Downloads
  Installation Guide	Downloads
  Technical Drawing	Downloads
