• • B-Tech 75″ Ultra-Slim Universal Flat Screen Wall Mount

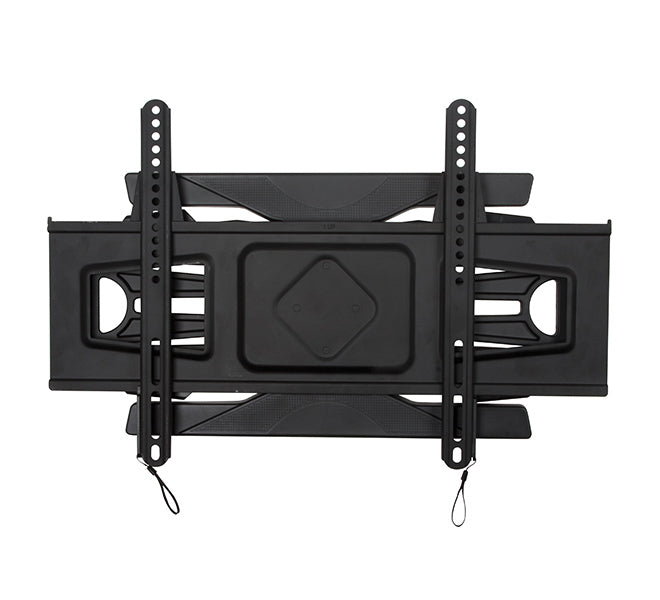

    Designed to mount medium to large sized screens, this ultra-slim twin cantilever arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required – whether folded flat to the wall at a depth of just 40mm or at maximum extension. Cover plates to hide fixings and integrated cable management help make this a neat and tidy mounting solution which is ideal for commercial applications as well as home installations.

  • Universal screen interface suitable for all screens
  • Ultra-slim design allows close to the wall installation when folded flat

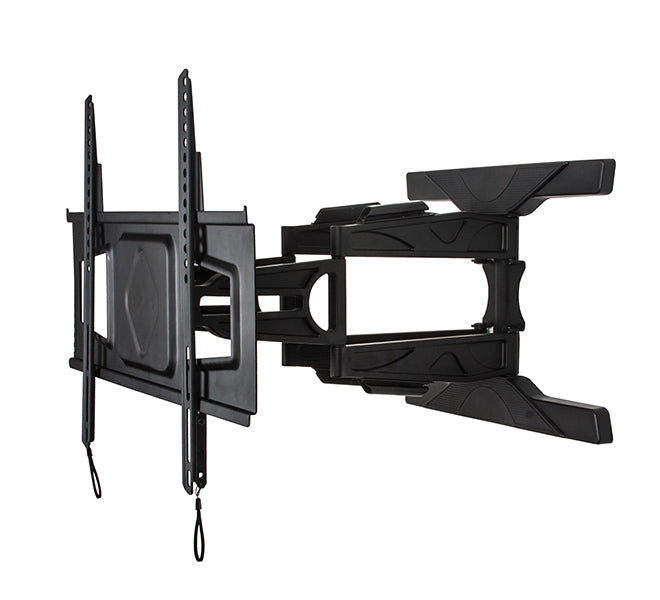

  • Double articulated arms feature three swivel points
  • Twin cantilever arm for extended reach – ideal for corner mounting
  • Easy tool-less tilt mechanism
  • Lateral adjustment of screen once mounted

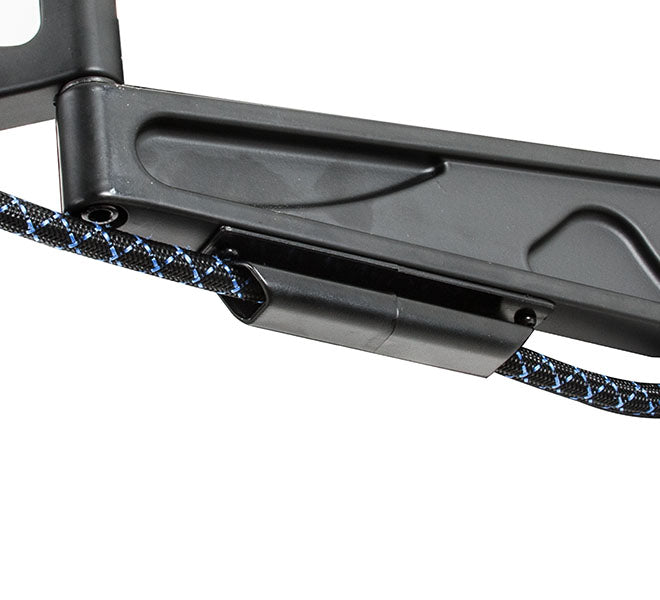

  • Integrated cable management
  • Attractive coverplates to hide fixings
  • Interface arms can be padlocked to help prevent unauthorised
    removal of screen (padlock not included)
  • Includes spirit level for easy wall plate levelling during installation
  • Suitable for concrete, brick and 16″ stud walls
  • Simple ‘hook-on’ installation
• • Recommended Screen Size: up to 75″ (190cm)
  • Max load: 45kg (99lbs)
  • VESA® compatibility: up to 600 x 400
  • Tilt: +/-15°
  • Swivel: 130°
  • Extension: Min: 40mm (1.6″) – Max: 469mm (18.5″)
  • Colour: Black or White

• Specification Sheet

  Specification Sheet (PDF)



  Installation Guide

  Installation Guide (PDF)



  Technical Drawing

  Technical Drawing (PDF)

  Technical Drawing (DXF)

• BTECH AV MOUNTS
  5 Years Manufacturer Warranty
