• • B-Tech 47″ Double Arm Tilt and Swivel Wall Mount

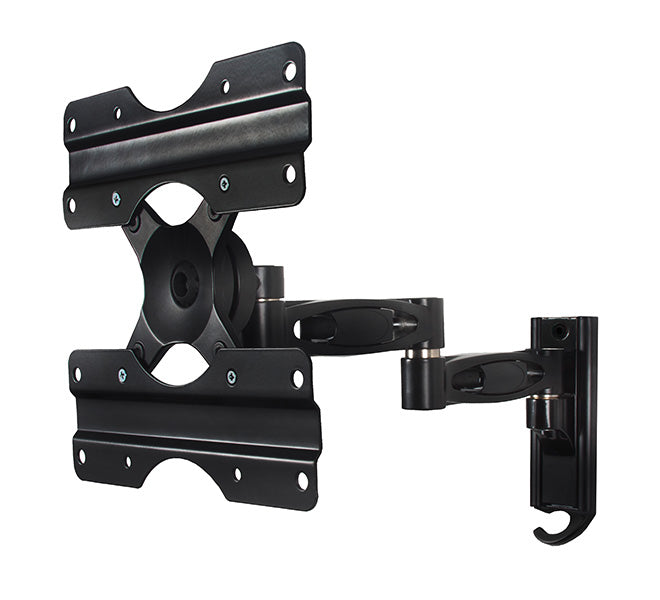

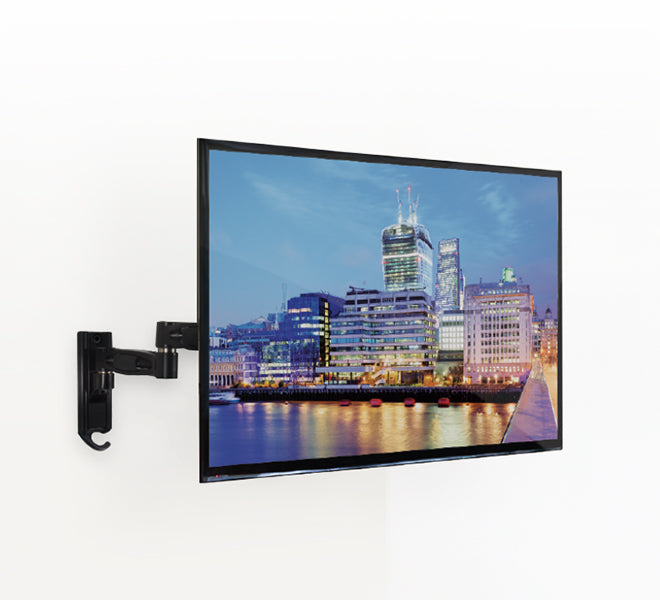

    Designed to wall mount small to medium sized screens, this double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required – whether folded flat against the wall at a depth of 79mm or at maximum extension. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.

  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Screen rotation allows screen to mounted in landscape or portrait orientation
  • Folds flat to the wall
  • Integrated cable management
  • Integrated spirit level for easy wall plate levelling during installation
  • Simple ‘hook-on’ installation with all mounting hardware included
• • Recommended screen size: up to 47” (119cm)
  • Max load: 25kg (55lbs)

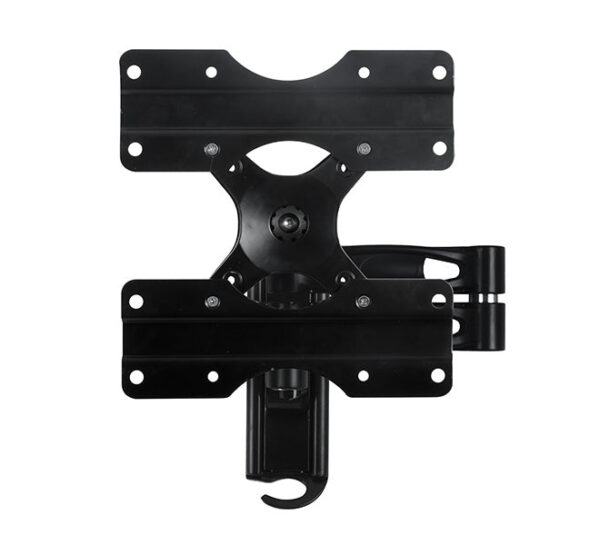

  • VESA® compatibility: up to 200 x 200
  • Tilt: +/-15°
  • Swivel: 180°
  • Screen rotation: 360°

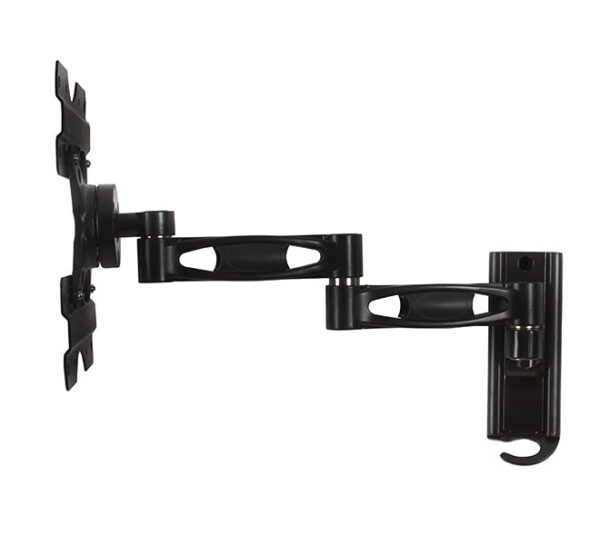

  • Distance from wall: Min: 79mm (3”) – Max: 385mm (15”)

• Specification Sheet

  Specification Sheet (PDF)

  产品规格书 — 中文（PDF)



  Installation Guide

  Installation Guide (PDF)



  Technical Drawing

  Technical Drawing (PDF)

  Technical Drawing (DXF)

• BTECH AV MOUNTS
  5 Years Manufacturer Warranty
