• • B-Tech 28″ Double Arm Tilt and Swivel Wall Mount

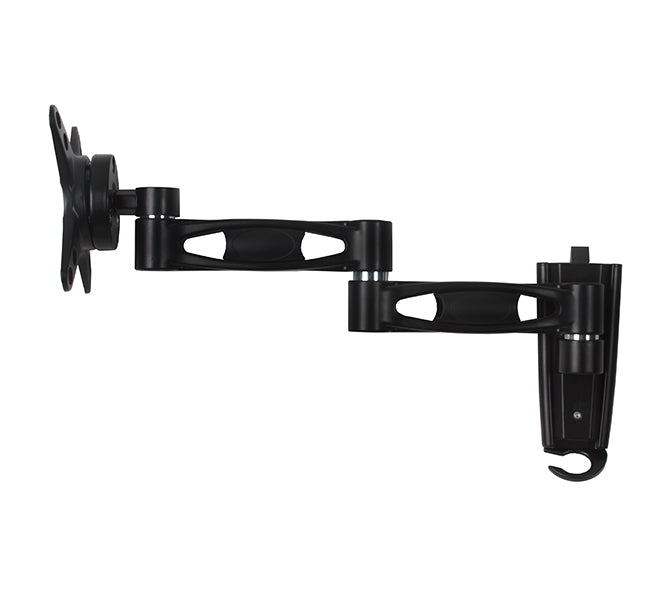

    Designed to wall mount small sized screens, this double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required – whether folded flat against the wall at a depth of 77mm or at maximum extension. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.

  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Screen rotation allows screen to be positioned in a landscape or portrait orientation

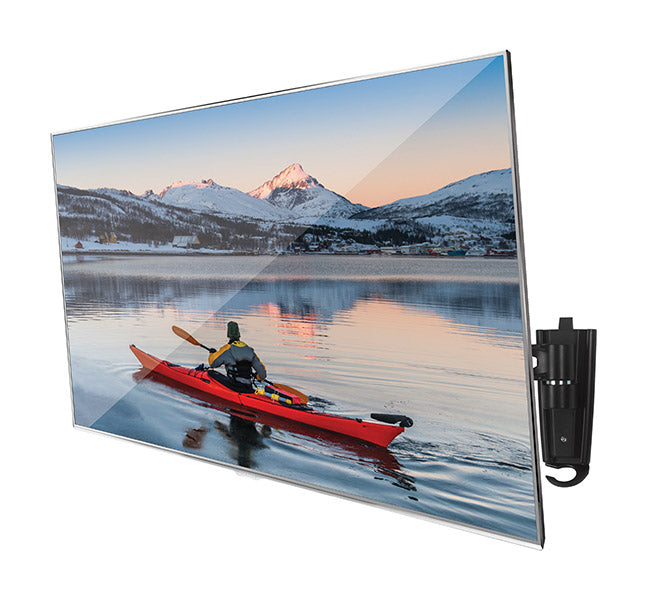

  • Folds flat to the wall
  • Integrated spirit level for easy wall plate levelling during installation
  • Integrated cable management
  • Simple ‘hook-on’ installation with all mounting hardware included
• • Recommended screen size: up to 28” (71cm)
  • Max load: 15kg (33lbs)
  • VESA® compatibility: 75 x 75mm, 100 x 100mm
  • Tilt: +/-15°
  • Swivel: 180°
  • Screen Rotation: 360°
  • Distance from wall: 77 (3″) – 385mm (15″)

• Specification Sheet

  Specification Sheet (PDF)



  Intsallation Guide

  Installation Guide (PDF)



  Technical Drawing

  Technical Drawing (PDF)

  Technical Drawing (DXF)

• BTECH AV MOUNTS
  5 Years Manufacturer Warranty
