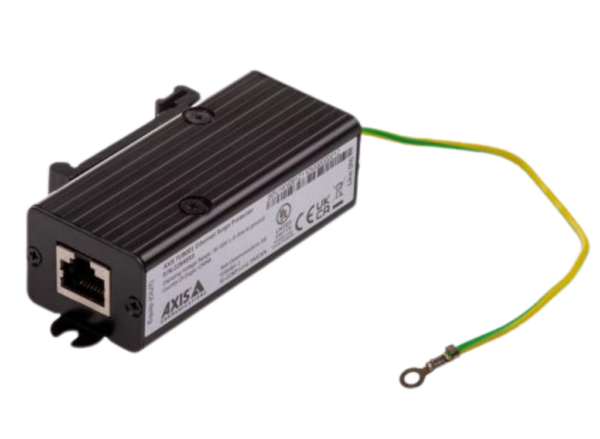

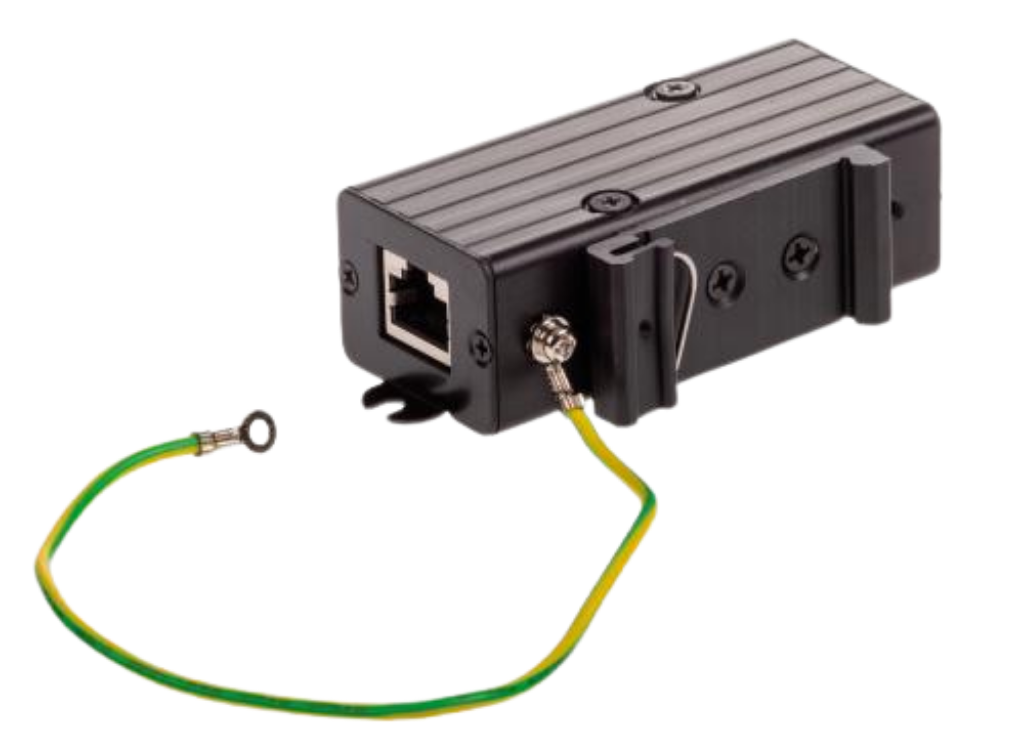

Axis TU8001 Ethernet Surge Protector | 02315-001

• Description
• Specifications

• Axis TU8001 Ethernet Surge Protector | 02315-001

  AXIS TU8001 Ethernet Surge Protector helps reduce downtime, service and maintenance of your system by shielding your PoE devices against transient voltage spikes in the Ethernet cable. It is a compact, high-quality product validated to work seamlessly with Axis devices.

  AXIS TU8001 is perfect to be installed close to a PoE switch located indoors or in an outdoor electrical enclosure cabinet adjacent to a network camera or another device. Placing it in an enclosure, you get less exposed wiring, simpler troubleshooting of the whole system and less hardware visible on the pole. The product can be easily mounted on a wall or on a DIN rail.

  With a network device and a surge protector from Axis, you get first-class support from a single point of contact.

• Category	Feature	Specification
  General	Casing	Aluminum casing
  	Color	Black
  	Mounting	Wall, shelf, or DIN rail
  	Sustainability	PVC free
  Power	Surge Immunity	IEC61643-21: 2001, multiple categories (B2, C1, C2, D1)
  	Input Power	95 W (max)
  	Input Current	2 A (max)
  Connectors	Network	RJ45, 10BASE-T/100BASE-TX/1000BASE-T PoE
  Operating Conditions	Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
  	Humidity	Max 95%, Non-condensing
  Storage Conditions	Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
  	Humidity	Max 95%, Non-condensing
  Approvals	EMC	IEC/EN 61000-4-5, IEC/EN 61643-21
  	Safety	UL 497B
  	Environmental Protection	IEC/EN 60529 IP30, NEMA TS 2 (2.2.7-2.2.9)
  Physical Dimensions	Length	94 mm (3.70 in)
  	Height	35 mm (1.38 in)
  	Width	27 mm (1.06 in)
  	Weight	80 g (1.3 lb)
  Accessories	Optional accessories	See axis.com
  Warranty	Warranty	3-year warranty
