• Axis T8415 Wireless Installation Tool


  T8415 WIRELESS INSTALLATION TOOL

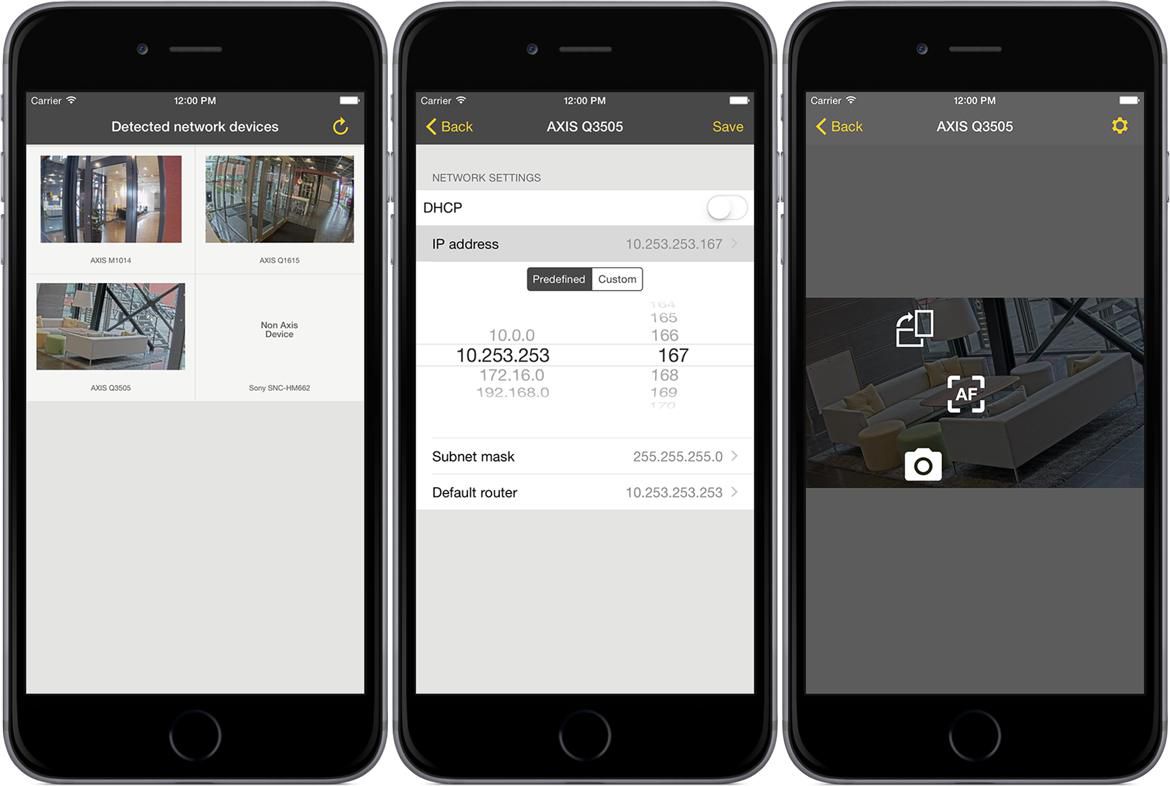

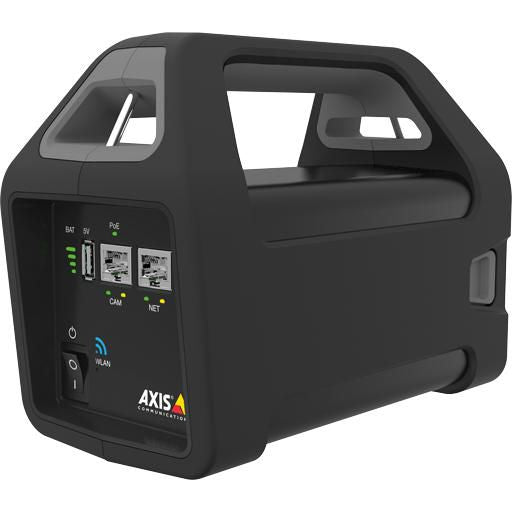

  AXIS T8415 Wireless Installation Tool is a battery-powered handheld device that connects directly to a camera and displays live video. With its powerful battery, the tool can power up an Axis PoE camera up to 30 W for hours. The built-in Wi-Fi function in AXIS T8415 connects within seconds to an installer’s smartphone or tablet so the camera’s live view can be accessed in a convenient manner. Basic camera functions, such as focus, IP address and image rotation can be adjusted via the smartphone. Free-of-charge app on the smartphone (iOS or Android) downloadable from the App Store or Google Play.

• Category	Feature	Details
  Battery	Battery Type	UN2800 – Wet, non-spillable electric storage
  	Battery Capacity	3400 mAh
  	Battery Technology	Sealed Lead Acid (VRLA)
  	Battery Voltage	12 V
  Display	Display	No
  Ethernet LAN Features	Cabling Technology	10/100-BaseT(X)
  	Ethernet LAN	Yes
  	Ethernet LAN Data Rates	10/100 Mbit/s
  Features	Housing Material	ABS (Acrylonitrile butadiene styrene)
  	Mobile OS Supported	Android 4.1 to 5.1, iOS 7.0 to 9.0
  	Product Colour	Black/Grey
  Legal Information	EU ECCN Code	N/A
  	US ECCN Code	EAR99
  Network	Security Algorithms	WPA2-PSK
  	Supported Network Protocols	WS – Discovery
  Operational Conditions	Operating Humidity	20 – 80%
  	Operating Temperature	0 – 50°C
  	Storage Humidity	20 – 80%
  	Storage Temperature	-30 – 70°C
  Package Dimensions	Depth (package)	24 cm
  	Gross Weight (package)	3.11 kg
  	Height (package)	20.5 cm
  	Width (package)	40 cm
  Packaging Content	AC Adapter Included	Yes
  	Carrying Straps	Yes
  Ports & Interfaces	DC-in Jack	Yes
  	USB Connector Type	USB Type-A
  Power	Power over Ethernet (PoE)	Yes
  	Power Source Type	Battery / PoE / USB
  Product Dimensions	Net Weight (Product)	3 kg
  	Depth	10 cm
  	Height	20.5 cm
  	Width	15 cm
  Wireless LAN Features	Bandwidth (First)	5 GHz
  	Bandwidth (Second)	2.4 GHz
  	Channels Quantity	44 Channels
  	Wi-Fi	Yes
  	Wi-Fi Standards	802.11b / 802.11g / Wi-Fi 4 (802.11n) / Wi-Fi 5 (802.11ac)
  Vendor Information	Brand Name	Axis
  	Warranty	5 Years
  Categories	Main Category	Surveillance & Security
  	Subcategory 1	Peripherals
  	Subcategory 2	Camera Testers

• Description	Downloads
  Axis T8415 Wireless Installation Tool | 5506-231 DataSheet	Downloads
  Axis T8415 Wireless Installation Tool | 5506-231 Installation Guide	Downloads
