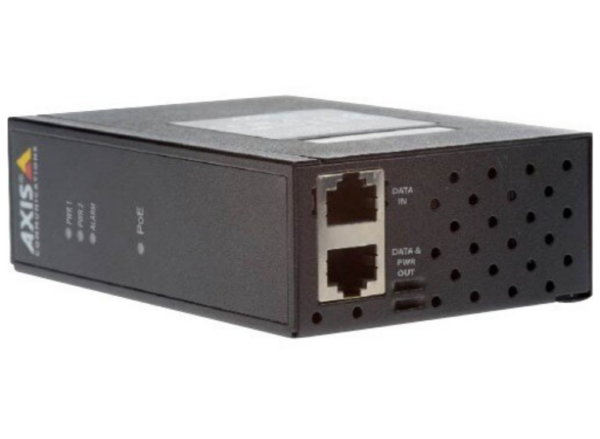

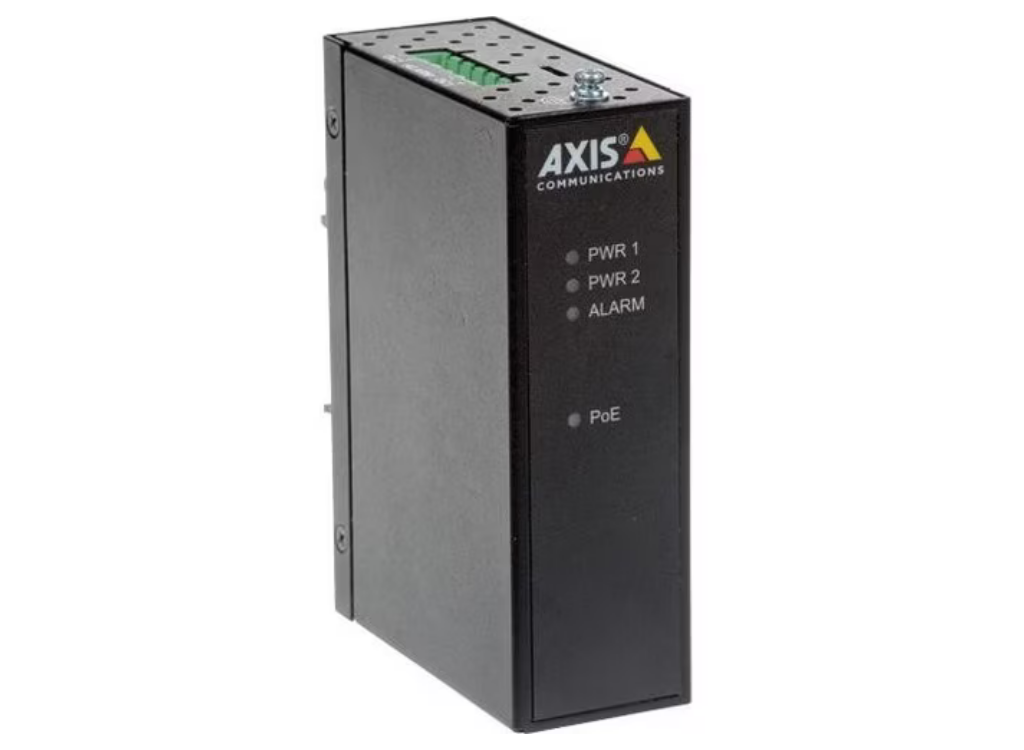

Axis T8144 PoE Injector – 20 V DC, 60 V DC Input – 55 V DC Output | 01154-001

• Description
• Specifications

• Axis T8144 PoE Injector – 20 V DC, 60 V DC Input – 55 V DC Output | 01154-001

  AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.

  AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.

• Category	Feature	Specification
  Compatibility	Axis Products	A1001, A9161, A9188-VE, C1410, D2110-VE, F34, F41, F44, I8016-LVE, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1435-LE, P1455-LE, Q1615, Q1645, Q1647, Q1659, Q1798-LE, M3015, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V
  Certifications & Standards	Compliance	EC/EN/UL 62368-1, EMC, EN 55024, EN 55032 Class A, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES-003 Class A, EAC
  Input Ports	Port 1	1 x 10/100/1000Base-T
  Input Ports	Port 2	1 x 10/100/1000Base-T
  Output Ports	Port 1	1 x 10/100/1000Base-T
  Output Ports	Port 2	1 x 10/100/1000Base-T
  Product Type		PoE Injector
  Manufacturer Part Number		01154001
  Manufacturer		Axis Communications
  Product Model		T8144
  Product Name		T8144 60 W Industrial Midspan
  Brand Name		AXIS
  Input Voltage	Range	20 V DC – 60 V DC
  Maximum Output Power		60 W
  Maximum Output Voltage		55 V DC
  Weight (Approximate)		315 g
  Form Factor		Cabinet/DIN Rail
  Height		36 mm
  Width		78 mm
  Depth		111 mm
  Product Color		Black
  Color Family		Black
