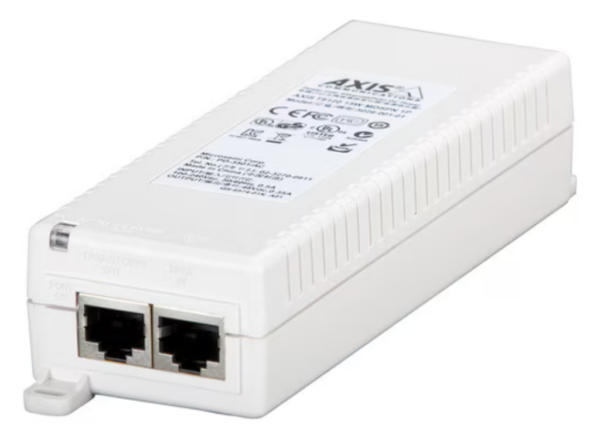

Axis T8120 PoE Injector – 110 V AC, 220 V AC Input – 48 V DC Output | 5026-203

• Description
• Specifications

• Axis T8120 PoE Injector – 110 V AC, 220 V AC Input – 48 V DC Output | 5026-203

  Easier and faster installations
  Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling.

  No need for power outlets
  With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install.

  Axis PoE midspans and PoE splitters
  Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in Power over Ethernet support.

  For network video products without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.

  Axis PoE midspans and PoE splitters are IEEE 802.3af compliant, which ensures compatibility with all Axis products that have built-in support for Power over Ethernet.

• Category	Feature	Specification
  Output Ports	Port 1	1 x 10/100/1000Base-T
  	Port 2	1 x 10/100/1000Base-T
  Compatibility	Axis Network Cameras	M1011, M1013, M1014, M1011-W, M1031-W
  Certifications & Standards	Compliance	IEEE 802.3, IEEE 802.3af
  	Certifications	FCC Part 15 Class B, EN55022 (CISPR 22) Class B, cUL/UL, TUV, CE
  Country/Region	For	United Kingdom
  Physical	Weight	450 g
  	Height	33 mm
  	Width	53 mm
  	Depth	140 mm
  Product Details	Type	PoE Injector
  	Manufacturer Part Number	5026-203
  	Manufacturer	Axis Communications
  	Model	T8120
  	Name	T8120 Midspan 15 W 1-port
  	Brand	AXIS
  Power	Input Voltage	110 V AC, 220 V AC
  	Frequency Range	47 – 63 Hz
  	Max Input Current	500 mA
  	Max Output Power	15 W
  	Max Output Voltage	48 V DC
