• Axis Q6100-E For 360° Real-Time Monitoring And Great Detail Network Camera

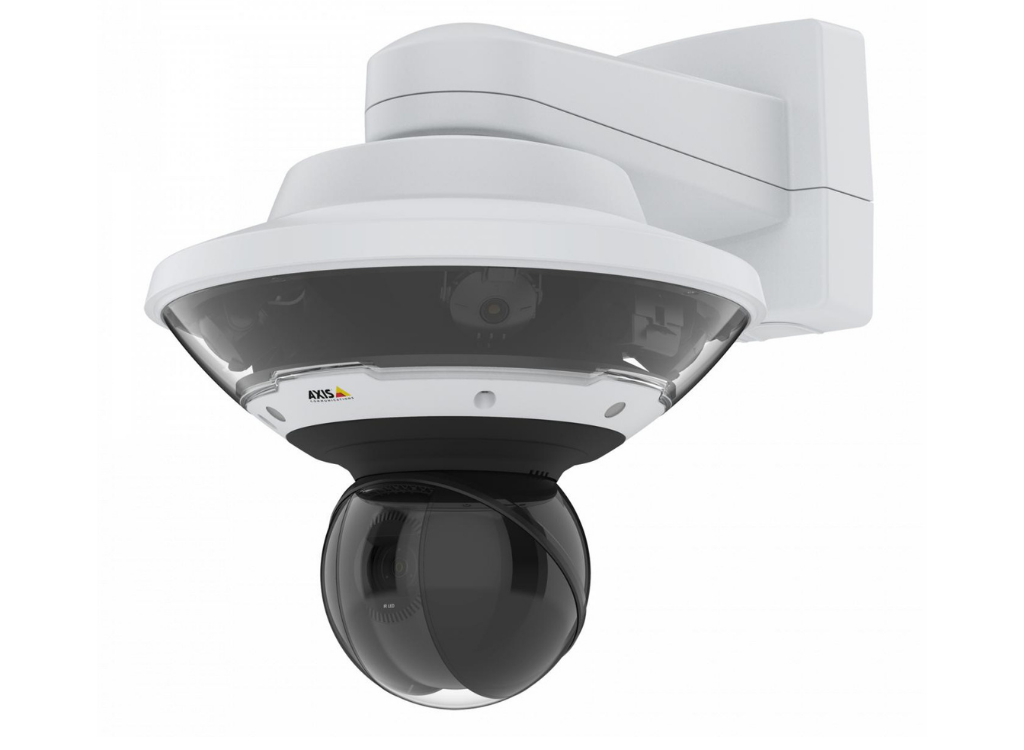

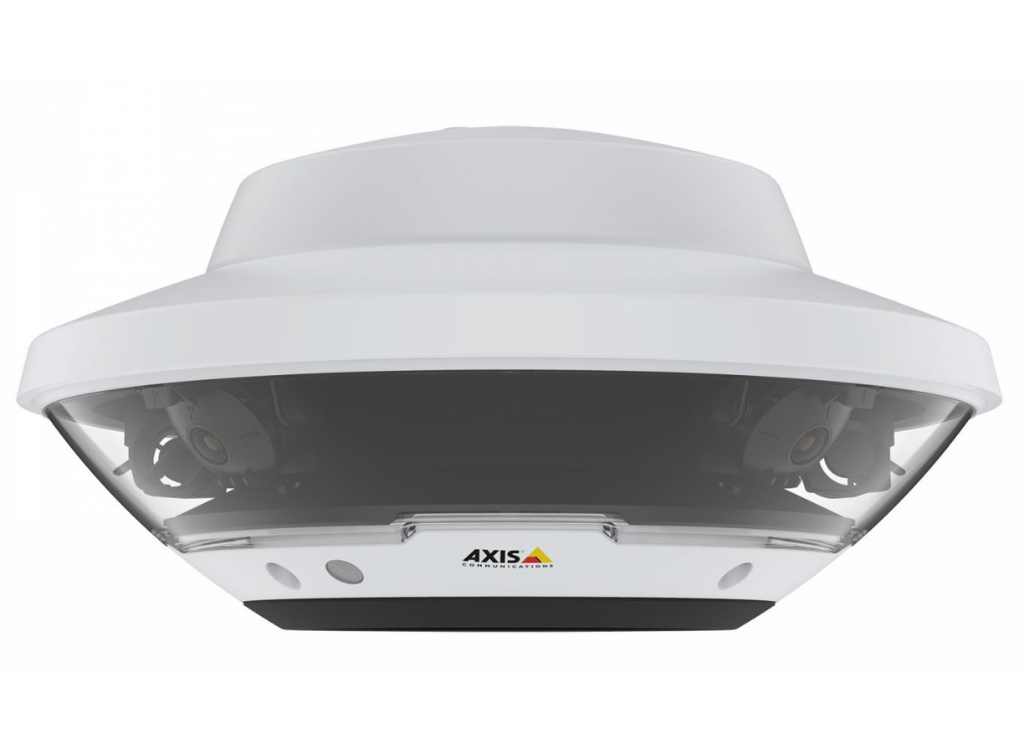

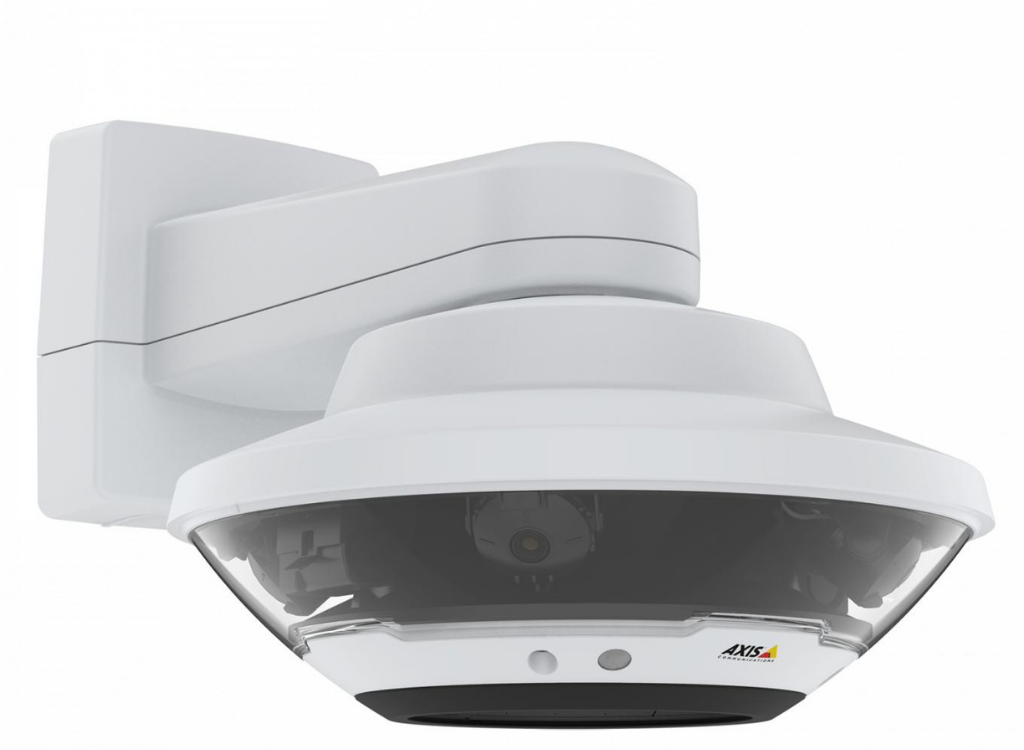

  AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360° overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It’s ideal for city surveillance applications, for instance at street crossings or squares.

  Total situational awareness- 24/7
  Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.


  Great images to cover your areas of interest
  AXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.


  Easy, cost-efficient installation
  Using the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there’s no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you’re ready to capture great overviews and details in one complete camera solution.



• Category	Property Description	Property Value
  Camera	Min illumination/light sensitivity (Color)	0.4 lux
  	Min illumination/light sensitivity (B/W)	0.03 lux
  	Image sensor	CMOS
  	Image sensor size	1/2.5″
  	Lightfinder	–
  	Wide dynamic range	WDR
  General	Built-in IR	–
  	OptimizedIR	–
  	Local storage (memory card slot)	Yes
  	Operating temperature	-50 to 50 °C
  	Outdoor Ready	Yes
  	Vandal rating	IK10
  	IP rating	IP66
  	Designed for repaint	Yes
  Analytics	Autotracking version	–
  	Orientation aid	–
  Video	Max video resolution	2592×1944
  	Max frames per second	20
  	Day and Night functionality	Yes
  	Electronic image stabilization	–
  Lens	Focal length	2.8 mm
  	Horizontal field of view	360 °
  	Vertical field of view	84 °
  Pan, Tilt, Zoom	Pan range	–
  	Tilt range	–
  	Guard tour	–
  	Optical zoom	–
  	Digital zoom	–
  Compression	Zipstream	Yes
  	H.264	High, Main
  	H.265	Yes
  	Motion JPEG	–
  Audio	Audio Support	Yes
  	Built-in microphone	–
  System Integration	Audio detection	–
  	Active tampering	Yes
  	Alarm inputs/outputs	–
  Network	PoE Class	High PoE
  Security	Signed OS	–
  	Secure boot	–
  	TPM	–
