• Axis Q1700-LE License Dedicated Plate Camera For Sharp Images At High Speeds

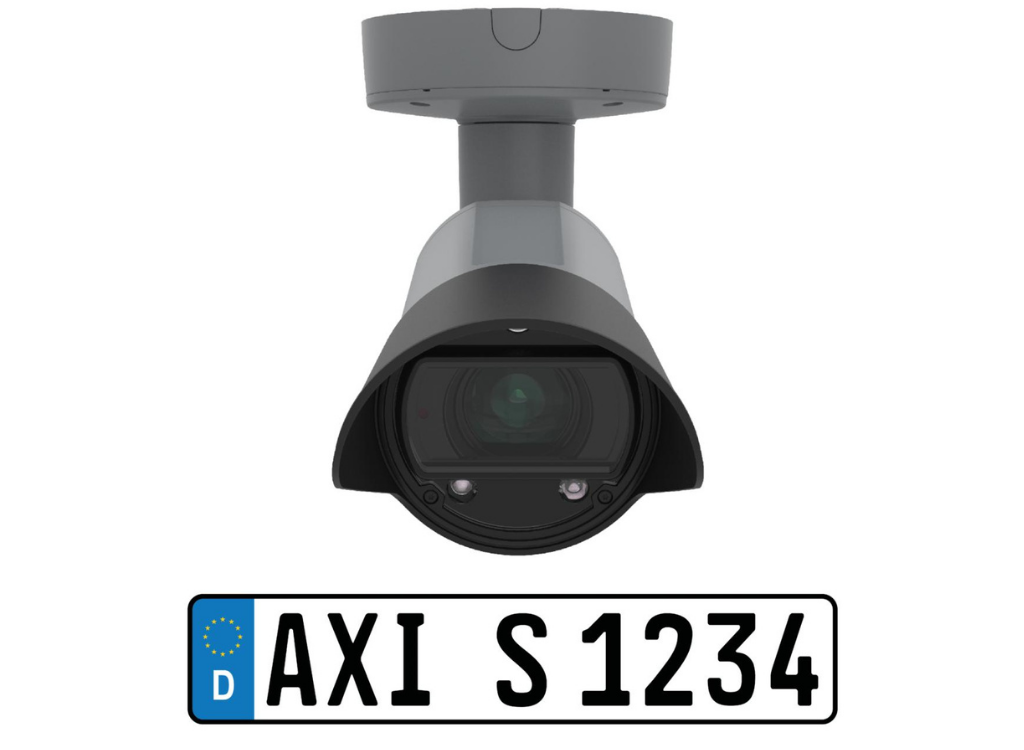

  AXIS Q1700-LE License Plate Camera is the first dedicated license plate camera from Axis enabling you to capture sharp images 24/7. And thanks to its open platform, you get flexible integration with third-party analytics. This makes AXIS Q1700-LE ideal for road and urban security, vehicle loitering such as suspicious movement, tracking cars or goods and law enforcement purposes for instance gathering forensic evidence or searching for stolen vehicles.

  Designed to capture
  AXIS Q1700-LE is specially designed to capture license plate images with exceptional clarity and sharpness. It delivers excellent HDTV 1080p and ensures the required pixel density for license plate identification as well as plate markings, such as transporting dangerous goods. Each camera captures traffic in one lane at a range of up to 100 m (328 ft) during daytime. For coverage of multiple lanes, more cameras can easily be installed. In pitch darkness the camera captures license plate images at up to 50 m (164 ft) and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator.

  AXIS Q1700-LE includes a built-in license plate capture assistant to ensure easy setup for best video performance. Simply enter the installation height, distance to the vehicle and expected speed, and the license plate capture assistant automatically adjusts the image settings to perfectly fit your specific scene.


  Tough for the road

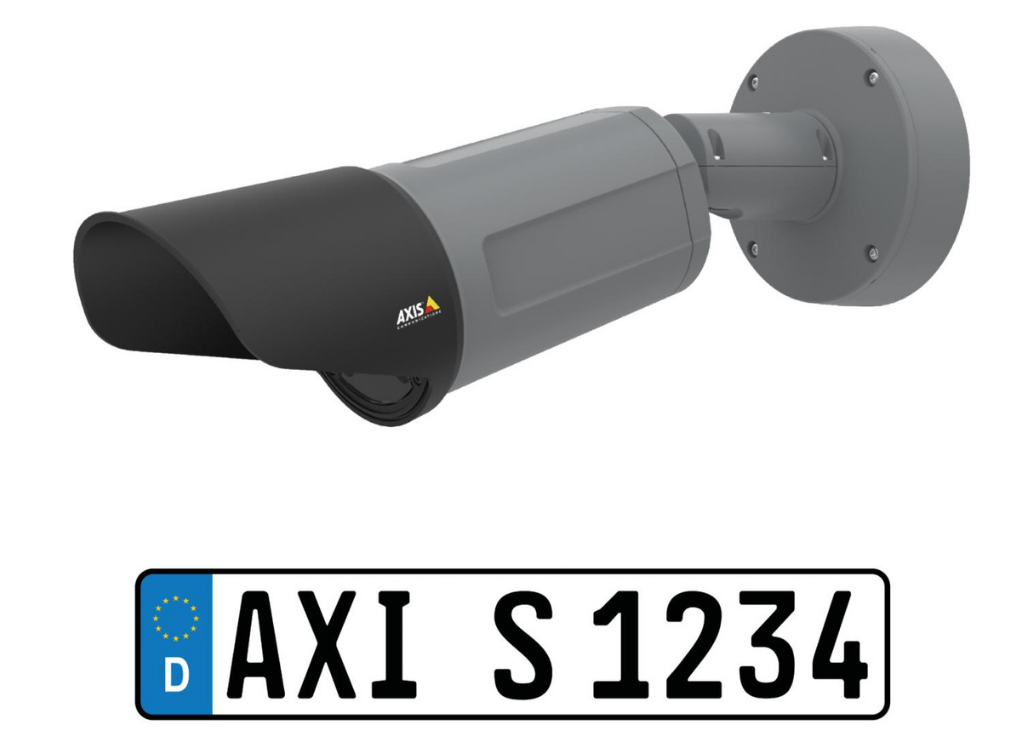

  AXIS Q1700-LE captures license plate images with high pixel density at vehicle speeds of up to 130 km/h (81 mph). This robust and weatherproof camera includes an extra-long weathershield for protection in any environment. It can withstand hurricane force winds of more than 60 m/s (134 mph) and with IP66, NEMA 4X and IK10 ratings, you can be sure that it’s resistant to both harsh weather conditions and impacts. Plus, the gray color housing and black weathershield blends right in to any traffic environment.


  Add any analytics
  AXIS Q1700-LE is compatible with AXIS Camera Station and most third-party video management systems (VMS), allowing you to use analytics or other third-party applications to meet your specific needs. You can select edge or server-based software from any third-party vendor to perform further analysis such as license plate recognition or trigger actions.



• Property Description	Property Value
  Image sensor	CMOS
  Image sensor size	1/2.8″
  Lightfinder	–
  Wide dynamic range	Forensic WDR
  Min illumination/ light sensitivity (Color)	0.16 lux
  Min illumination/ light sensitivity (B/W)	0 lux
  Max video resolution	1920×1080
  Max frames per second	50/60
  Electronic image stabilization	Yes
  Focal length	18 – 137 mm
  Optical zoom	8
  Horizontal field of view	16 – 2.3 °
  Vertical field of view	9.6 – 1.3 °
  Zipstream	Yes
  H.264	Baseline, High, Main
  H.265	–
  Motion JPEG	Yes
  Audio Support	Yes
  PoE Class	3
  Signed OS	Yes
  Secure boot	–
  Remote focus	–
  Remote zoom	Yes
  Built-in IR	Yes
  Local storage (memory card slot)	Yes
  Operating temperature	-40 to 60 °C
  Outdoor Ready	Yes
  Vandal rating	IK10
  IP rating	IP66
  Designed for repaint	Yes
  Sustainability	PVC free
  Power (max)	13.5 W
  Power (average)	7.8 W
