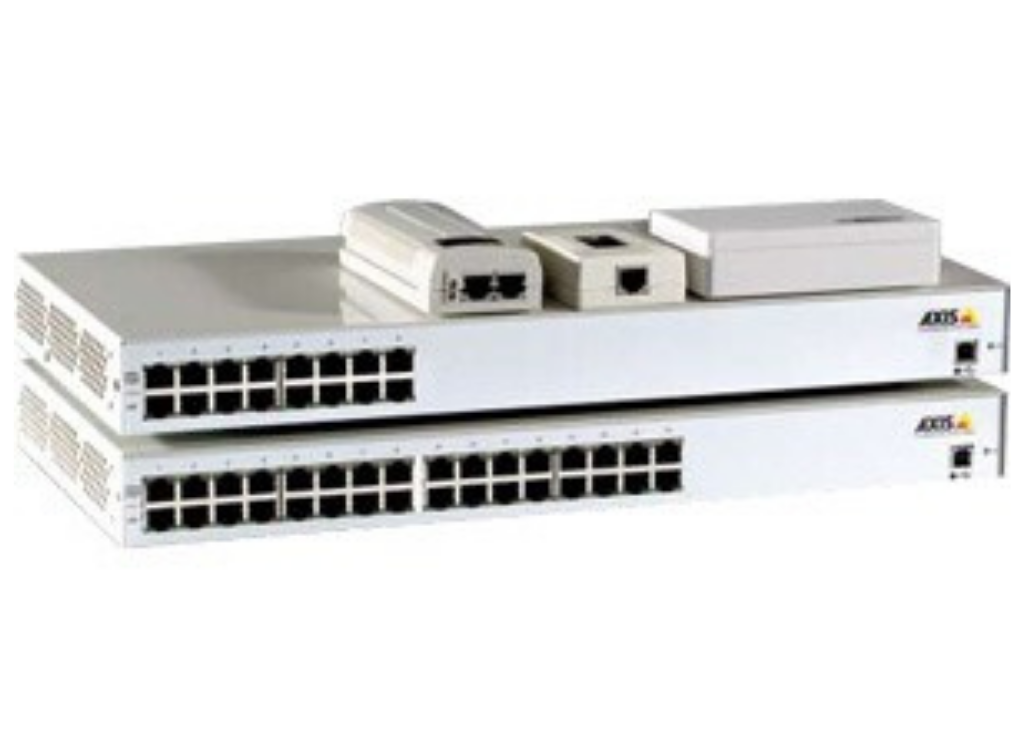

Axis PoE Injector Hub – 264 V AC Input – 48 V DC Output – 8 x 10/100/1000Base-T Input Port(s) | 5012-003

• Description
• Specifications

• Axis PoE Injector Hub – 264 V AC Input – 48 V DC Output – 8 x 10/100/1000Base-T Input Port(s) | 5012-003

  Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. Simply connect the Axis PoE midspan to the network, and the network video products are supplied with power.

• Category	Feature	Specification
  Compatibility	Axis Products	PTZ & PTZ Dome Cameras
  Certifications & Standards	IEEE Compliance	IEEE 802.3af
  	Safety Standards	TUV EN 60950, cUL/UL, CE
  	EMC Standards	FCC Class B, EN55022 Class B
  	Environment Standards	EN61000 series
  Region	Country/Region	United Kingdom
  Input Ports	Ports	8 x 10/100/1000Base-T
  Output Ports	Ports	8 x 10/100/1000Base-T
  Physical	Weight (Approximate)	4.08 kg
  	Height	44.5 mm
  	Width	228 mm
  Product Details	Type	PoE Injector Hub
  	Model	5012-003
  	Name	5012-003 Power over Ethernet Midspan
  	Brand	AXIS
  Power	Input Voltage	264 V AC
  	Frequency Range	47 – 63 Hz
  	Max Input Current	4.50 A
  	Max Output Power	15.40 W
  	Max Output Voltage	48 V DC
