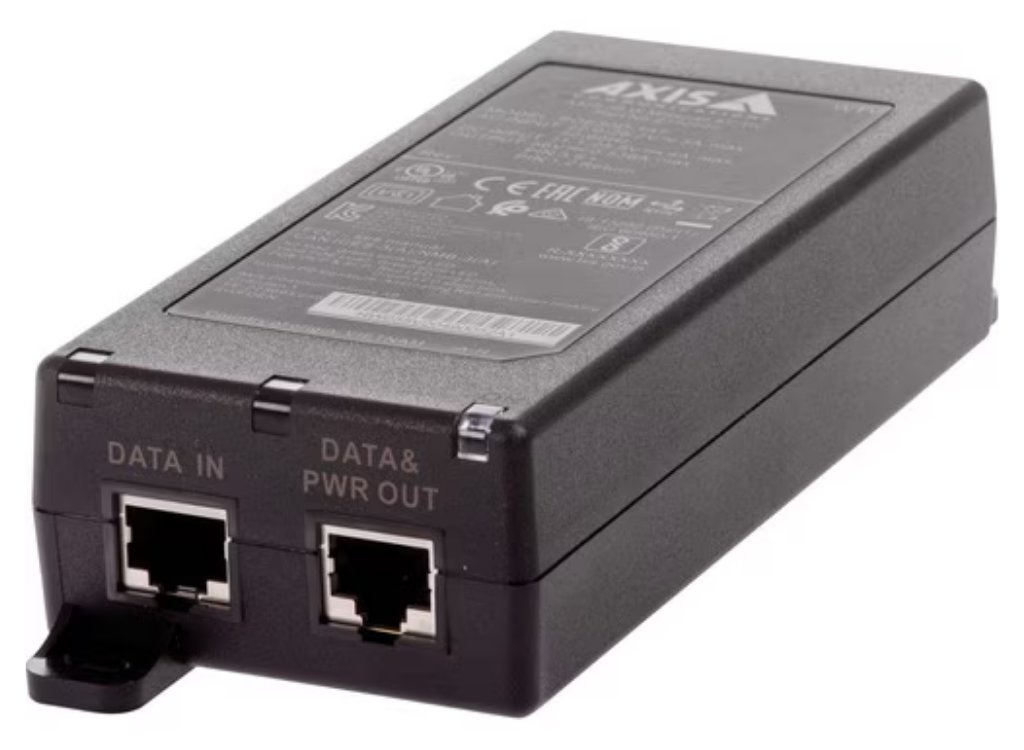

Axis PoE Injector Hub – 264 V AC Input – 48 V DC Output | 5012-013

• Description
• Specifications

• Axis PoE Injector Hub – 264 V AC Input – 48 V DC Output | 5012-013

  Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in Power over Ethernet support.

• Category	Feature	Specification
  Compatibility	Axis Cameras	PTZ and PTZ Dome Cameras
  Certifications & Standards	Compliance	IEEE 802.3af, TUV EN 60950, FCC Class B, EN55022 Class B, EN61000 series, EN61000-3-2 Class A, cUL/UL, TUV, CE
  Country/Region	Applicable Region	United Kingdom
  Input Ports	Port 1	1 x 10/100/1000Base-T
  	Port 2	1 x 10/100/1000Base-T
  Output Ports	Ports	16 x 10/100/1000Base-T
  Physical	Weight (Approximate)	4.08 kg
  	Height	44.5 mm
  	Width	228 mm
  Product Details	Type	PoE Injector Hub
  	Manufacturer Part Number	5012013
  	Manufacturer	Axis Communications
  	Model	16-port Power over Ethernet Midspan
  	Brand Name	AXIS
  Power	Input Voltage	264 V AC
  	Frequency Range	47 – 63 Hz
  	Max Input Current	4.50 A
  	Max Output Power	15.40 W
  	Max Output Voltage	48 V DC
