Avocor W-Series | AVW-5555 55″ 4K Ultra HD Interactive Touch Screen

• Description
• Specifications
• Downloads

• Avocor W-Series | AVW-5555 55″ 4K Ultra HD Interactive Touch Screen


  AVOCOR W SERIES
  The Avocor W series interactive displays have the integrated features and performance to help keep people connected. Ideal for focus and small meeting rooms, corporate and home offices, the all-in-one AVW-5555 offers an integrated, high-quality conference camera with a microphone array and audio optimized for use with UC platforms, including Microsoft Teams, RingCentral, and Zoom, the Avocor W series is the ideal platform to create the perfect video collaboration environment.

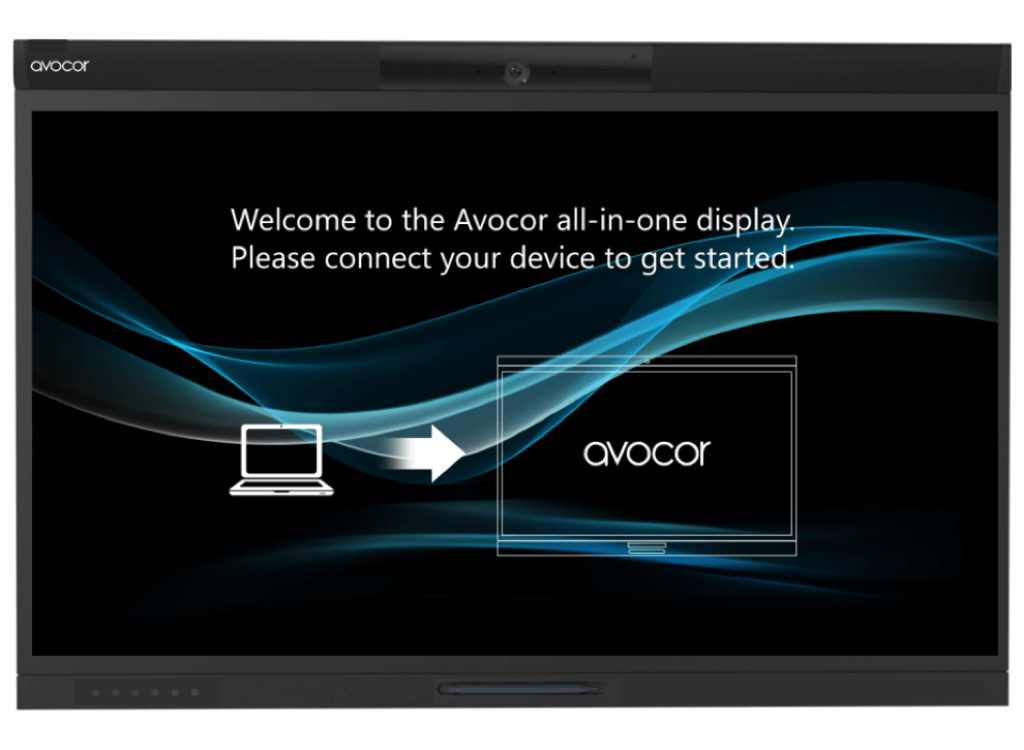

  AVW-5555
  All in one interactive touch screen

  GET MEETINGS STARTED QUICKLY
  The single Type-C cable solution delivers a frustration free-user experience to get meetings started quickly and simply. Smart switching ensures that there is no more struggling to find input sources. The cable provides hardwire ethernet connection and powers the connected device at the same time. When the device leaves the room, so does the on-screen content.

  MICROSOFT AZURE CERTIFIED
  Built-in sensors that connect to Azure loT Digital Twins platform, measuring environmental data such as room temperature and ambient light, enabling real-time adjustments and future room planning.

  THE ULTIMATE VIDEO COLLABORATION ENVIRONMENT
  Connect and engage with colleagues regardless of location through the integrated, conference-grade camera and stereo speakers. The active, far-field microphone array allows the display to connect with a variety of UC based software, delivering the ultimate video collaboration environment for the focus room.

  ENCRYPTION-LEVEL SECURITY USING AZURE SPHERE
  Azure Sphere is a secured, high-level application platform with built-in communication and security features for internet-connected devices.

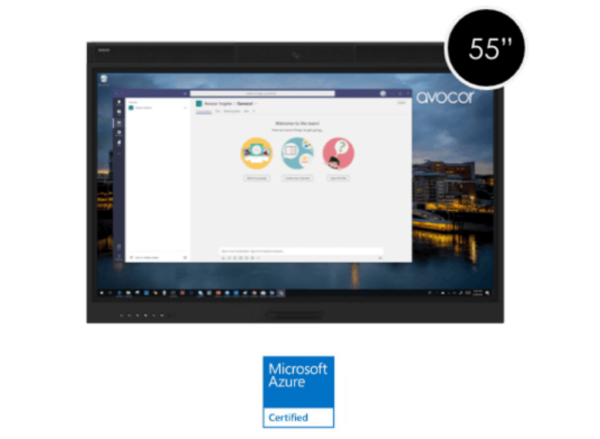

  BRAND NEW 55″ DISPLAY
  Avocor’s all-in-one 55″ display with InGlass touch technology is out-of-the-box ready for collaboration and videoconferencing in focus rooms, executive offices and home offices.


  Zero Parallax. Ultra-fast Inking.
  The native AVW-5555 utilizes the latest InGlass technology for its interactive touch screen design, developed with zero parallax glass that delivers ultra-fast inking and touch performance that supports up to 20 individual touchpoints, perfect for whiteboarding on display.

  USB Type C Connectivity
  Uniquely, the W series features USB Type-C connectivity, intelligently connecting a Windows 10 device to the display to deliver 4K video, audio, USB touch, ethernet, and power. This feature also removes the struggle to find image sources when starting a meeting, providing a frustration-free experience for meeting participants.


  Microsoft Azure Certified
  The W  series displays are also Microsoft Azure certified, with IoT sensors that connect to the Azure platform. This platform provides useful business intelligence on meeting space usage and environmental data such as presence detection, room temperature, humidity, and light conditions, all contributing to meeting room well-being.


  Cleaning your interactive display
  Our recommended way to clean and care for your Avocor displays  – Austere Clean & Protect.


  Make technology barriers a thing of the past
  Avocor is helping organizations upgrade meeting spaces so that all participants have the best collaboration experience at the workplace.

• Feature	AVW-5555
  Diagonal Size	55 inches
  Backlight	Direct-lit LED
  Aspect Ratio	16:9
  Resolution	3840 x 2160 @ 60Hz
  Response Time	8 ms
  Brightness	500 cd/m²
  Contrast Ratio	4000:1
  Viewing Angle	178° / 178°
  Supported Colors	30 bit deep color
  Display Orientation	Landscape
  Touch System Interface	1 x Type-C, 3 x USB-B 3.0
  Touch Points	Up to 20 points
  Glass	3mm optically bonded, anti-glare, anti-fingerprint
  Supported Operating System	Windows 8 / 10, Mac OSX, Linux
  Connectivity	Various ports including HDMI, DisplayPort, USB, and LAN
  Audio	1 x 3.5mm audio out, 1 x optical (SPDIF)
  Control	1 x IR input, 1 x RS-232
  OPS Slot	Yes, supports 3840 x 2160 @60Hz
  Built-in Speakers	4 x 10W – forward facing
  Microphone Array	4 x far-field, beam-forming
  Camera	Integrated extra-wide angle, 1080p/720p/480p @ 30fps
  Display & Remote Functions	Auto-source-detection, Auto-power detection, IoT data reporting
  Physical Specifications	1280 x 858.3 x 102 mm
  Shipping Dimensions	1495 x 1026 x 260 mm
  Weight	Net: 45.3 kg / Gross: 59.2 kg
  Wall Mount (VESA)	400 x 400 mm
  IPC Mount	75 x 75 mm
  Handles	Yes
  Azure Digital Twins Sensors	Proximity, ambient room temperature, room brightness
  Power Supply	AC100-240V (worldwide), 50/60Hz
  Max Power Consumption	<310W
  Standby	≤0.5W
  Environmental	Operating temperature 0°C ~ 40°C, Storage temperature -20°C ~ 60°C, Humidity 20% ~ 80%
  Box Contents	Remote control & batteries, styluses, power cords, USB-B cable, HDMI cable, Type-C cable, VESA adapter plate, quick start guide, cable clips

• Description	Downloads
  Avocor W Series Datasheet	Download
  Avocor Product Brochure	Download
