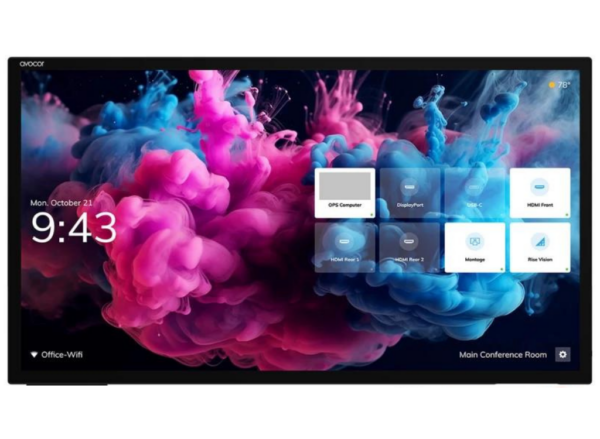

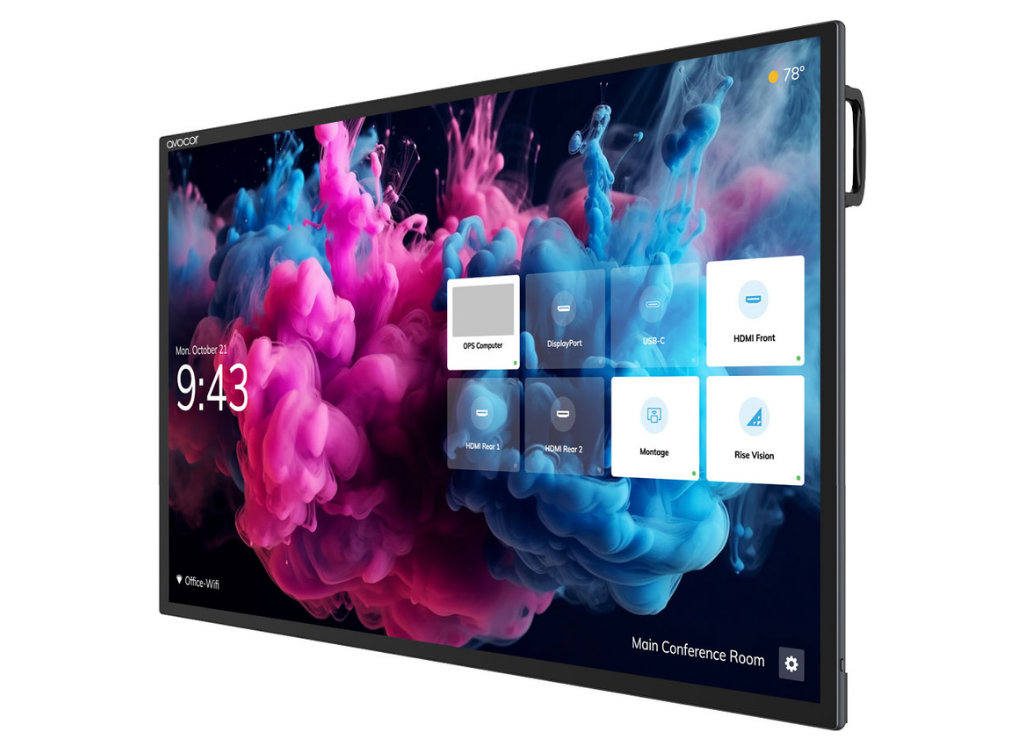

Avocor AVH-8620 H-Series 86″ 4K PCAP LED Interactive Display

• Description
• Specifications
• Downloads

• Avocor AVH-8620 H-Series 86″ 4K PCAP LED Interactive Display

  IGNITING THE FUTURE OF WORKPLACE COLLABORATION
  The H Series redefines workspace integration, merging ultra-thin bezel elegance with top-tier functionality. Perfectly suited for various collaborative settings, it offers an immersive touch experience, user-friendly interfaces, and versatile integration, including seamless compatibility with the Lenovo ThinkSmart core. Designed for dynamic interactivity, the H Series enhances both the aesthetic and functional aspects of professional environments, making it an ideal choice for businesses seeking to elevate their collaborative capabilities.


  ELEGANT DESIGN FOR
  CONTEMPORARY SPACES

  OPTIMIZED DISPLAY FOR
  IMMERSIVE EXPERIENCES


  ADVANCED TOUCH TECHNOLOGY FOR COLLABORATIVE WORK

  AVOCOR H SERIES
  THE FUTURE OF INTERACTIVE HYBRID DISPLAYS


  Seamless Integration and Versatile Connectivity
  Recognizing the importance of seamless integration in modern workspaces, the H Series is designed for easy installation and compatibility with popular CPUs, including a specific mounting system for the Lenovo ThinkSmart core. This thoughtful design choice, coupled with a range of connectivity options including a 100W Type C port and multiple HDMI inputs, ensures the H Series fits effortlessly into diverse technological environments.


  Practical Aspects for
  Installation
  The H Series prioritizes ease of installation and integration. Designed to allow installers to configure the system before mounting, it ensures a clean and efficient setup. The inclusion of an AV bar atop and a streamlined cable management system complements its sleek design, allowing for a ‘hang-and-go’ installation process. This ease of setup, combined with its advanced features, makes the H Series an indispensable asset for modern, connected workspaces.


  Dynamic Software for
  Enhanced Communication
  Equipped with Montage for wireless content sharing and Rise Vision for digital signage, the H Series goes beyond standard display functions. These integrated applications enhance team collaboration and allow the display to serve as a communication hub when idle, broadcasting essential information and updates.


  AFFORDABLE FLEXIBILITY FOR EVERY SPACE
  The H Series, available in 65”, 75”, and 86” sizes, offers a cost-effective solution for enhancing interactive experiences in various settings. Ideal for everything from high-tech boardrooms to dynamic wayfinding kiosks, its price and adaptability make it a perfect fit for diverse organizational needs. This series not only promises versatility but also delivers on efficiency, ensuring a valuable impact in any professional environment.

• Feature	AVH-8620
  Size	86”
  Backlight	Direct-lit LED
  Aspect Ratio	16:9
  Resolution	3840 x 2160 @ 60Hz
  Response Time	8 ms
  Brightness	400 (cd/m2) w/bonded glass
  Contrast Ratio	5000:1
  Viewing Angle	178° / 178°
  Supported Colors	10 Bit 1.07 Billion Color
  Display Orientation	Landscape
  TOUCH SYSTEM
  Interface	2 x USB-B 2.0, 1 x Type C
  Touch	Up to 40 points Touch + 1 stylus
  Glass	Zero parallax, 2mm optically bonded, anti-glare, anti-fingerprint
  Supported Operating Systems	Windows 8+, Mac OSX*, Linux*
  CONNECTIVITY
  Front Inputs/Guest Inputs	None
  Top Inputs	1 x USB-A 3.0 hub
  Bottom Inputs	None
  Side IO	1 x Type-C (100W PD w/o OPS), 4 x HDMI 2.0, HDCP 2.3, 3 x USB-B 2.0, 1 x DisplayPort 1.4, 2 x USB-A 3.0 hub, 1 x USB-A service port, HDMI 2.0 out
  Audio	1 x 3.5mm audio out, 1 x optical (SPDIF)
  Control	1 x RS-232, 2 x LAN Ethernet (RJ-45)
  Ops Slot	Yes
  WiFi	Yes
  AUDIO
  Built-in Speakers	2 x 16W – spatial-stereo downward facing
  Microphone Array	None
  Camera	None
  DISPLAY & REMOTE FUNCTIONS
  Auto-Source-Detection	Yes
  Source Preview	UiQ
  Image Settings	UiQ, FUSE
  PHYSICAL SPECIFICATIONS
  Product Dimensions (L x W x H)	1962 x 80 x 1141mm
  77.24” x 3.15” x 44.92”
  Bezel Dimensions	3mm all sides
  Shipping Dimensions (L x W x H)	2110×225×1270mm
  83.07” x 8.86” x 50”
  Weight
  Net: 61 kgs	134.5 lbs
  Gross: 81 kgs	178.6 lbs
  Wall Mount (VESA)	800 x 600mm included
  IPC Mount	100 x 100 mm + 80 x 80mm
  Handles	2
  SENSORS
  Type	Presence, ambient light
  Presence Sensor	Yes, max 4 range
  POWER
  Max Power Consumption	390W
  ENVIRONMENTAL
  Operating Temperature	0°C ~ 40°C
  Storage Temperature	-20°C ~ 60°C
  Humidity	20% ~ 85%
