• Avocor 8GB Ram 256GB SSD Intel® Core™ i5 11th OPC PC

  11TH GEN INTEL CORE PROCESSOR AT ITS CORE
  11th Gen Intel Core i5-1135G7 Quad Core (8 Thread) @ 2.4 GHz (4.20GHz Max Turbo), 8MB Cache delivers strong processing capabilities for multitasking and demanding tasks.

  UP TO 32GB DDR4 RAM
  It comes with 8GB (1x 8GB SODIMM) DDR4-3200 memory but has the flexibility to upgrade to 32GB* for enhanced performance and multitasking capabilities. *Please note upgrades not available via Avocor

  256GB SSD FOR FAST STORAGE
  1x M.2-2280 SATA III 256GB SSD ensures quick access to your files and smooth application performance.

  INTEGRATED INTEL IRIS XE GRAPHICS
  Boasts Intel® Iris® Xe Graphics with support for DirectX 12.1, OpenGL 4.6, providing vibrant visuals and impressive multimedia execution.

  WINDOWS 11 PRO ONBOARD
  Supported OS is Windows 11 Pro OEM 64-Bit, providing the latest features and robust security.

  MULTIPLE CONNECTION PORTS
  A variety of ports including 4x USB 3.0 Type A, 1x USB 3.2 Type C, 1x HDMI 2.0 out (3840 x 2160 @ 60Hz) 4K, and 1x LAN 1000M RJ45 make it versatile for connecting devices.

  SECURE AND COMPATIBLE OPS INTERFACE
  Features a JAE 80-pin connector for the OPS interface and comes with TPM 2.0 support for increased security measures.

• Component	Specification
  Processor	11th Gen Intel Core i5-1135G7 Quad Core (8 Thread) @ 2.4 GHz (4.20 GHz Max Turbo), 8MB Cache
  Memory	8GB (1x 8GB SODIMM) DDR4-3200, Upgradable to 32GB RAM
  Storage	1x M.2-2280 SATA III 256GB SSD
  Graphics	Intel® Iris® Xe Graphics, Supports DirectX 12.1, OpenGL 4.6
  Network	Intel® Ethernet Connection (13) I219-V
  Wireless	Intel® Dual Band Wireless-AC 3165 #2, Dual band (2.4GHz & 5GHz) Bluetooth 4.2
  Audio	Intel® HD Audio Driver for Display Audio

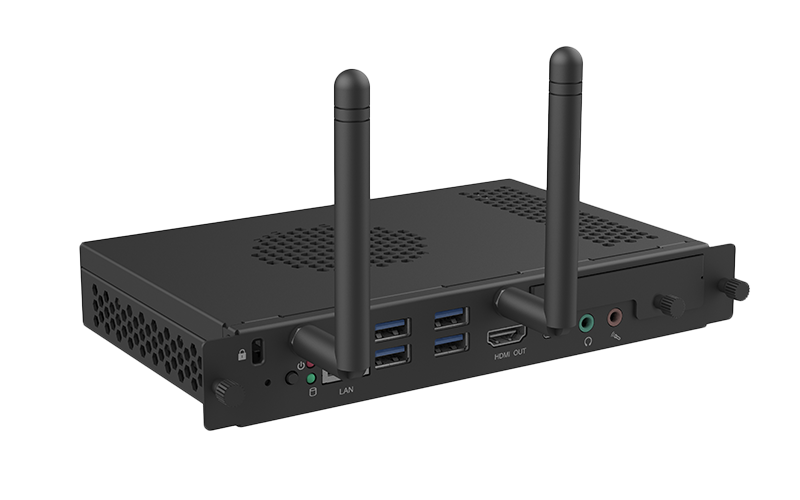

  Front I/O Ports	4x USB 3.0 Type A, 1x USB 3.2 Type C, 1x HDMI 2.0 out (3840 x 2160 @ 60Hz), 1x LAN 1000M RJ45, 1x 3.5mm Line Out, 1x 3.5mm Mic In, 2x Wi-Fi/BT Antenna
  Power Status LED	Yes
  HDD Status LED	Yes
  OPS Interface	JAE 80-pin connector
  TPM	Supports TPM 2.0
  Material	Painted EG Steel Case, Black
  Net weight	1.0 kg
  Product Dimensions	202mm x 132mm x 30mm
  Package Dimensions	267mm x 192mm x 72mm
  Power Input	12-19V DC IN
  Operating Temperature/Humidity	-10°C to 50°C, 10% – 90% RH
  Storage Temperature	-20°C to 60°C
  Supported OS	Windows 11 Pro OEM 64-Bit
  Power Type	DC-IN

• Description	Downloads
  Datasheet	Download
