AVerVision M90UHD 13MP 4K 322x Total Zoom Mechanical Arm Visualiser (Document Camera)

• Description
• Specifications
• Downloads

• AVerVision M90UHD 13MP 4K 322x Total Zoom Mechanical Arm Visualiser (Document Camera)

  AVerVision
  M90UHD
  See a World in a Grain of Sand

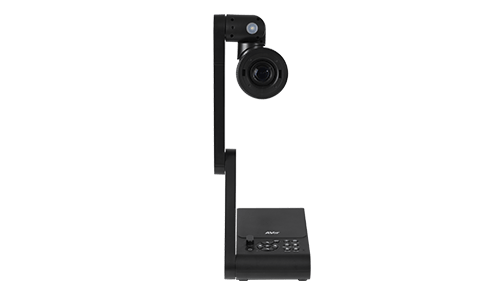

  Mechanical Arm Visualiser (Document Camera)
  The M90UHD is a visualiser with an impressive lineup of features that include a 13-megapixel camera, 4K imaging, and a transcendent 322X total zoom capacity. These characteristics help teachers demonstrate all types of materials in an extraordinarily vivid way. What’s more, instinctive function buttons, an extendable arm, and AVerTouch software allow teachers of any subject to create fantastic collaborations in next to no time.

  The Only 322X Total Zoom
  Equipped with a 14X optical and 23X digital zoom, the M90UHD’s amazing 322X total zoom buries the competition. Every student—even the ones in the back row—can enjoy a wonderful learning journey without missing a single detail.

  Splendid 4K Image Quality
  Ultra HD output resolution and 13 megapixels display every subtle detail of topographical maps, chemical experiments, stereo models, and more. This clarity improves teaching quality and enhances student comprehension.

  One-Push Recording, Capturing, and Playback
  Intuitive recording and capturing enable users to record the complete teaching process with one button. Also, the playback function lets teachers review their lessons and examine student behavior to successfully prevent any accidents.

  Massive A3 Shooting Area
  A larger than A3-size shooting area captures items as big as building models. In addition, the position indicator on the camera head helps teachers always display materials accurately.

  Multiple Ports Fit Any Device
  With HDMI, VGA, and USB jacks available, users can connect the M90UHD to any display or computer and use the devices they’re most familiar with to teach.

  Super-Efficient Mechanical Arm
  Featuring a low center of gravity and a fully adjustable, neatly foldable mechanical arm, the visualizer is easy to operate with only one hand and takes up minimal storage space.

  Rapid Autofocus Banishes Blur
  Some visualizers have a difficult time focusing on moving objects, but not this one. A single press of a button activates a premium-quality autofocus function that instantly clarifies the image and maintains students’ attention.

  Embedded Light
  The M90UHD offers an embedded light for adjusting luminance. Even in a dark presentation environment, teachers can easily provide a comfortable viewing experience.

  AVerTouch Software Take Your Ideas Anywhere
  AVerTouch is ultra-powerful software designed exclusively for AVer visualisers. One touch connects your visualiser with mobile devices for content sharing, and you can sync to the cloud to automatically save annotated, captured, and recorded files. Teaching is incredibly fun when you use AVerTouch to engage with your students.

• Specifications
  Image Sensor	1/3.06″ CMOS
  Total Pixels	13 Megapixels
  Output Resolution	4K
  	Full HD 1080p 60Hz
  	HD 720p 60Hz
  TV Lines	1,400
  Zoom	322X Total Zoom
  	(14X Optical Zoom x 23X Digital Zoom)
  Frame Rate	60fps (max.)
  Focus	Auto / Manual
  Shooting Area	A3 (420 x 315 mm max.)
  Image Rotation	Electronic: 0°, 180°
  	Mechanical: 0°, 90°, 180° (Camera Head)
  Internal Storage	200 Pictures at XGA (1024 x 768)
  External Storage	Micro SD Card & USB Thumb Drive (FAT32/32GB)
  One-touch Recording	Yes
  One-touch Capturing	Yes
  Image Effects	Color
  	B&W
  	Negative
  Image Adjustments	(White Balance / Exposure)
  	Auto / Manual
  Display Modes	Normal
  	Motion
  	High Quality
  	Microscope
  	Macro
  	Infinity
  Capture Modes	Single
  	Continuous
  User Profiles	Yes, up to 3
  Timer	Yes
  Flicker Filter Control	Yes
  ePTZ	Yes
  Light Source	Embedded LED Lamp
  HDMI I/O	1 in
  	1 out
  VGA I/O	1 in
  	1 out
  USB 2.0 Ports	Type-A x 1 (USB Thumb Drive)
  	Type Mini-B x 1 (PC)
  Audio	Line out (3.5 mm)
  	Mic in (3.5 mm)
  	Built-in Mic
  HDMI Security	Kensington Slot
  RS-232 Port	(Optional)
  Mini-DIN Jack	(Available for M90UHD with RS-232 Only)
  Dimensions (W x D x H)	Operating: 159.0 x 481.3 x 469.9 mm
  	Folded: 176.0 x 319.0 x 112.0 mm
  Net Weight	2.2 kg (4.85 lbs.)
  Power Source	DC 5V / 3A
  	AC 100 to 240V, 50 / 60Hz
  Power Consumption	10 Watts (Lamp on)
  	9 Watts (Lamp off)
  Warranty	Visualizer: 5 Years
  	Accessories: 1 Year
  Software	AVerTouch
  Windows OS	Windows 7, 10, 11
  Mac OS	Mac 10.15, 11, 12
  Chrome OS	Chrome OS 75 or Later
  	(Available via the Sphere Lite App Only)
  Optional Accessories	Microscope Adaptor
  	Connecting Plate for Microscope Adaptor
  	Anti-Glare Sheet
  	Carrying Bag
  	RS-232 Cable
  Package Contents	AVerVision M90UHD Unit
  	USB Cable
  	VGA Cable
  	Power Cable
  	Power Adapter (5V / 3A)
  	Remote Control with AAA Batteries x 2
  	Warranty Card
  	Quick Start Guide
  	CD1

• Description	Downloads
  User Manual	Download
