AVer VB350 Dual Lens PTZ Video Bar With a Hybrid 18X Zoom for Medium & Large Rooms
Dual Lens PTZ Video Bar With a Hybrid 18X Zoom for Medium & Large Rooms
With a streamlined design, dual 4K lenses, seamless lens switching, upgraded audio technology, and simple setup, the VB350 is the ultimate all-in-one solution for next-level video meetings. Level up to premium audio and video by using this powerful new video bar in your mid-to-large conference rooms.
Hybrid 18X Zoom Captures Farther and Clearer
Elevate your video meeting experience with the VB350 and its dual 4K lens technology. Boasting a 113° field of view and hybrid 18X zoom, the VB350 captures crystal-clear images of the foreground and background in meeting rooms up to 7 meters deep.
Stable Lens Switching Enables Inclusive and Engaging Hybrid Teamwork
Don’t let jarring lens transitions interrupt your meetings. The VB350’s stable lens switching captures attendees in sharp detail, even when they sit far from the camera. Enjoy seamless conversations thanks to ultra-smooth lens shiftingSmart ViewShift Reduces Movement Sensitivity
The VB350 has just become even smarter with the latest firmware upgrade! The new Smart ViewShift function is designed to enhance your video conferencing experience by reducing movement sensitivity during audio tracking. With various transition effects, the camera smoothly shifts focus to the target person, providing remote participants with a more comfortable and stress-free call experience. Say goodbye to jarring movements and hello to seamless transitions.
Audio Fence Eliminates Background Noise
Say goodbye to unwanted noise with AVer’s audio fence technology. This feature blocks out background distractions and captures only the voices within the camera’s viewing area. Now you can have uninterrupted remote collaboration even in open workspaces.14-Microphone Array Delivers Lifelike Audio
Enjoy clear and natural-sounding voices in your meetings. The VB350 is equipped with a 14-element microphone array pickup that precisely reproduces resonant sound from up to 10 meters away. Experience seamless conversations and lifelike audio that makes your remote meetings feel like in-person gatherings.
Product Overview

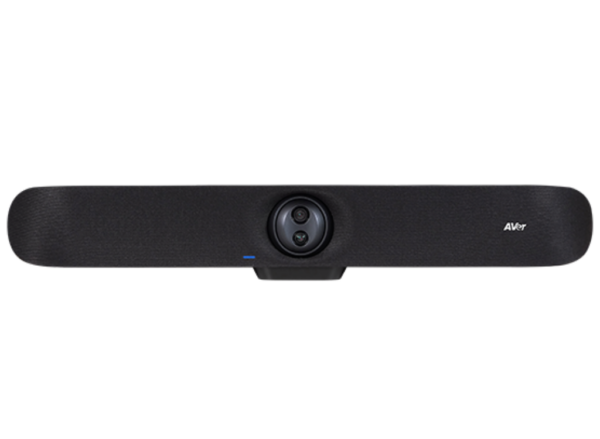

Front
1. 791 mm (L) x 128 mm (W) x 126 mm (H)

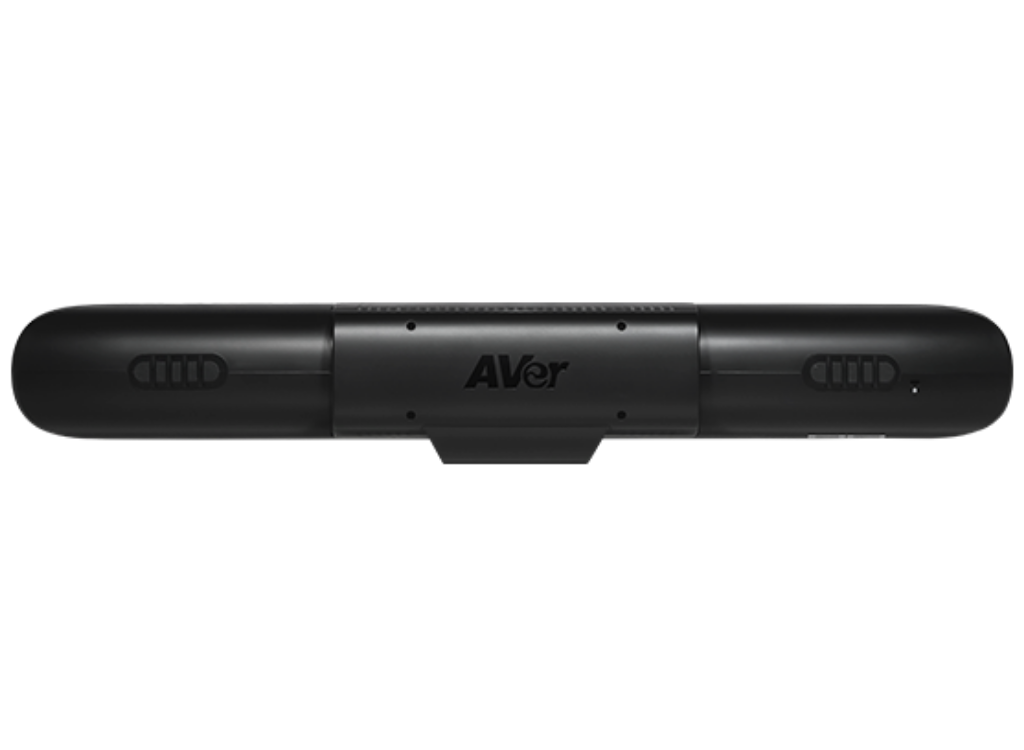

Back
1. Cable management clips
Side
1. DC 12V
2. LAN
3. USB 3.0 type B (device to PC)
4. HDMI-out (to TV)
5. USB 2.0 type A port
6. Phone-in
7. Audio expansion
8. RS-232
9. USB 2.0 type A (wireless dongle) -
Category Specification Camera 4K Dual-Lens Technology Wide 113° FOV with 18X zoom 4K 3X Varifocal Lens FOV (D/H/V) 92°/81°/50° 4K Fixed Lens FOV (D/H/V) 113°/105°/71° Sony 4K Sensor Ultra-crystal-clear image in any lighting Frame Rate Various resolutions and frame rates (16:9 and 4:3) Adjustable Audio Fence Define wide/medium/narrow view fence SmartFrame & SmartSpeaker Automatic tracking and FOV adjustment Presentation Mode Voice-triggered tracking Smart Gallery Function Enhances visibility Gesture Control Intuitive camera control WDR, White Balance Via PTZApp 2 Minimum Focus Distance 100 cm People Counting API Obtain data for better meeting space usage Motorized Pan and Tilt Movement Pan: 165° horizontal, Tilt: 101° vertical Camera Presets 10 presets Audio Beamforming Microphone Array 14 elements, 10 meters pickup range Volume Up to 96 dB SPL at 1/2 m Echo Cancellation Yes AI Noise Suppression Yes HDMI One Cable Solution Built-in USB 3.1 to HDMI adapter 4K HDMI Output to TV Requires driver installation on Windows 7 and MAC OS Connectivity Power Adapter 12V/5A RS-232 Connection Mini DIN 6 USB Ports USB 3.1 type B, USB 2.0 type A x3 HDMI Out Connection USB to HDMI adapter Phone-in / Speaker-out 3.5 mm audio jack RJ45 Ports Two: one for Ethernet, one for audio expansion Video Format Video Formats YUV, YUY2, M-JPEG Network Video Compression H.264 Network Protocols RTSP, RTMP USB USB Version 3.1 Gen 1, backward compatible with USB 2.0 USB Standards UVC 1.1 (USB Video), UAC 1.0 (USB Audio) Control Control Methods IR remote control, WebUI, VISCA/pelco P/pelco D via RS-232/VISCA over IP, UVC/UAC plug-and-play, PTZApp 2 Mount and Security Mount Options Wall-mount bracket (included), TV VESA mount kit (optional) Security Kensington security lock System Requirements Software Windows 7/10/11, Mac OS X 10.14 or later, Chromebox 3 version 94.0.4606.114 or later Hardware 3.2 GHz Intel Core i5-4460 processor, 4 GB RAM or more, USB 3.1 port Power Supply Power Specifications AC 100V–240V, 50/60 Hz, Consumption: 12V/4.5A Free Applications EZManager 2 Camera Central Management Software PTZApp 2 Camera Setting Software EZLive Broadcasting Software Environmental Data Operation Temperature 0 ~ 40°C Operation Humidity 20% ~ 80% Storage Temperature -20 ~ 60°C Storage Humidity 20% ~ 80% Package Contents Package VB350 unit, Power adapter & cable, USB 3.1 type B to type A cable (3 m), USB 3.1 type A to type C adapter, QR code card, Wall-mount bracket, Tripod screws, Remote control, Wall-mount drill paper Optional Accessories Accessories Mini DIN 6 to RS-232 adapter, TV VESA mount, 10 m/20 m expansion microphone, 10 m/20 m expansion speakerphone, 10 m/20 m/30 m USB 3.1 extender cable, 5 m USB 2.0 type B to type A cable, Wireless dongle, Audio-out converter Dimensions Package Dimensions 872 mm (L) x 197 mm (W) x 260 mm (H) Package Weight 7.4 kg Camera Dimensions 791 mm (L) x 128 mm (W) x 126 mm (H), 3.3 kg Remote Control Dimensions 150 mm (L) x 42 mm (W) x 19 mm (H), 50 g Warranty Camera Warranty 3 years Accessories Warranty 1 year Compatible Applications Zoom, Microsoft Teams, Skype for Business, Skype, Google Meet, Intel Unite, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting, TrueConf, Adobe Connect, Cisco WebEx, Fuze, GoToMeeting, Microsoft Lync, Vidyo, vMix, WebRTC, Wirecast, XSplit, V Cube -
