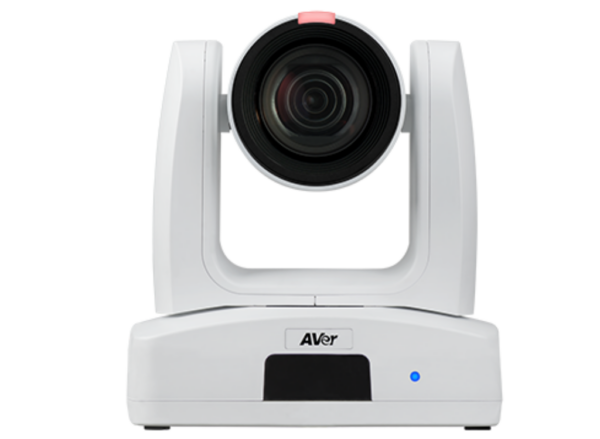

AVer PTZ330UV2 8Mp 30X Optical Zoom Professional PTZ Camera

• Description
• Specifications
• Downloads

• AVer PTZ330UV2 8Mp 30X Optical Zoom Professional PTZ Camera

  Professional PTZ Camera
  Amaze your audience with AVer’s PTZ330UV2 — the high-end PTZ camera that gives you full control of your streaming content. With 4K 60 fps HDMI/USB/IP outputs, a 30X optical zoom lens, and SmartShoot functionality, this advanced streaming solution is unmatched. Take your streams to the top and make a lasting impression with the PTZ330UV2!


  30X Optical Performance.
  Harness the Power of Zoom
  The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you’ll never miss a moment of any occasion.


  4K Ultra HD.
  A New Level of Clarity
  With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the PTZ330UV2 takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.


  HDMI/USB/IP + 4K 60 fps.
  Smoother Streams
  NDI<SUP>®</SUP> has praised the PTZ330UV2 for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.


  0.1° to 200° Per Second Precision
  Pro Camera Control
  Customizable movement speed settings, ranging from 0.1° to 200° per second, offer high-level agility and precision for ultimate motion control during streams. The resulting sensitive and smooth multi-angle movement lets you capture extraordinary footage that dazzles your audience.


  SmartShoot.
  Keep People and Content in Focus
  With embedded SmartShoot, the PTZ330UV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.


  PTZ Link.
  Bring Voice Tracking to PTZ Cameras
  PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.


  Hardware Specifications
  Front

  1. Tally Lamp
  2. IR Sensor
  3. LED Indicator

  Side

  1. IR Sensor
  2. Kensington Slot

  Back

  1. PoE+
  2. RS-232
  3. RS-422
  4. USB 3.1 Gen 1 (Type-B)
  5. Audio In
  6. HDMI
  7. 3G-SDI
  8. DC 12V

• Category	Specification
  Camera
  Image Sensor	1/2.8” 4K Exmor CMOS
  Effective Picture Elements	8 Megapixels
  Output Resolutions	4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  Minimum Illumination	0.5 lux (IRE50, F1.6, 30fps)
  S/N Ratio	≥ 50 dB
  Gain	Auto, Manual
  TV Lines	1400 (Center/Wide)
  Shutter Speed	1/1 to 1/32,000 sec
  Exposure Control	Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  White Balance	Auto, Manual, ATW, One Push
  Optical Zoom	30X
  Digital Zoom	12X
  Total Zoom	360X
  Viewing Angles	DFOV: 69.2° (Wide) to 2.8° (Tele); HFOV: 62.3° (Wide) to 2.5° (Tele); VFOV: 37.3° (Wide) to 1.4° (Tele)
  Focal Length	f = 4.5 mm (Wide) to 135 mm (Tele)
  Aperture (Iris)	F = 1.8 (Wide) to 4.7 (Tele)
  Minimum Working Distance	0.1 m (Wide); 1.2 m (Tele)
  Pan / Tilt Angles	Pan: ±170°; Tilt: +90° / -30°
  Pan / Tilt Speed (Manual)	Pan: 0.1° to 100° / sec; Tilt: 0.1° to 100° / sec
  Preset Speed	Pan: 200° / sec; Tilt: 200° / sec
  Preset Positions	10 (IR); 256 (RS-232, RS-422, IP)
  Camera Control – Interfaces	RS-232 (DIN8); RS-422 (RJ45); IP
  Camera Control – Protocols	VISCA (RS-232 / RS-422 / IP); PELCO-D & PELCO-P (RS-232 / RS-422); CGI (IP); ONVIF
  Image Processing	Noise Reduction (2D / 3D); Flip; Mirror; WDR; BLC
  Power Frequencies	50 Hz, 60 Hz
  AI Function Mode	SmartShoot
  Audio
  Channels	2ch Stereo
  Codecs	AAC-LC
  Interface
  Video Outputs	3G-SDI, HDMI, IP, USB
  Audio Outputs	3G-SDI, HDMI, IP, USB
  Audio Inputs	MIC in, Line in
  General
  Power Requirement	AC 100 – 240V to DC 12V/2A
  Power Consumption	19W
  PoE	PoE+
  Dimensions (W x H x D)	180.0 x 192.0 x 145.0 mm
  Net Weight	2.0 (±0.1) kg
  Application	Indoor
  Tally Lamp	Yes
  Security	Kensington Slot
  Remote Control	Infrared
  Operating Conditions	Temperature: 0 °C to +40 °C; Humidity: 20% to 80%
  Storage Conditions	Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
  IP Streaming
  Resolution	4K 60fps
  Network Video Compress Formats	H.264, H.265, MJPEG
  Maximum Frame Rate	4K 60fps
  Bit-Rate Control Modes	VBR, CBR (selectable)
  Range of Bit-Rate Setting	512 Kbps to 120 Mbps
  Network Interface	10 / 100 / 1000 Base-T
  Multi-Stream Capability	4
  Streaming Capabilities	4K 60fps: RTSP, HDMI & USB; 1080p 60fps: 3G-SDI
  Network Protocols	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  **NDI®	HX3**
  NDI® Genlock	N/A
  USB
  Connector	USB 3.1
  Video Formats	MJPEG, YUY2
  Maximum Video Resolution	2160p
  USB Video Class (UVC)	UVC 1.1
  USB Audio Class (UAC)	UAC 1.0
  Web UI
  Live Video Preview	Yes
  Camera PTZ Control	Pan, Tilt, Zoom, Focus, Preset Control
  Camera / Image Adjustment	Exposure, White Balance, Picture
  Network Configuration	DHCP, IP Address, Gateway, Subnet Mask, DNS
  Software Tools	IP Search and Configuration Tool
  PTZ Management	Support Windows® 7 or later
  PTZ Control Panel	Supports iOS & iPadOS® 11 or later
  PTZ Link	Supports Windows® 7 or later, macOS® 10.14 or later
  OBS Plugin for PTZ Cameras	Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  CaptureShare	Supports Windows® 7 or later, macOS® 10.14 or later
  Warranty
  Camera	5 Years
  Accessories	1 Year
  Package Contents	Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  Optional Accessories	AVer CL01 PTZ Camera Controller, L-Type Wall Mount
