AVer PTZ310UNV2 8MP 12X Optical Zoom NDI®|HX3 PTZ Camera

• Description
• Specifications
• Downloads

• AVer PTZ310UNV2 8MP 12X Optical Zoom NDI®|HX3 PTZ Camera

  NDI®|HX3 PTZ Camera
  AVer PTZ310UNV2 is a world-leading NDI®|HX3 PTZ Camera that features enhanced efficiency 4K 60 fps HDMI, USB and IP outputs. The 12X optical zoom lens moves remarkably fluidly to stream seamless video content. Embedded intelligent SmartShoot functionality offers the unprecedented flexibility to shoot anything from one presenter to numerous participants, making for a truly versatile professional streaming solution.


  NDI® is a registered trademark of Vizrt NDI AB.
  NDI® is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI® can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows.


  NDI® HX3 Compatible.
  The Newest
  Experience PTZ310UNV2’s latest NDI® HX3 technology from industry leader NewTek. NDI® HX3 reduces latency and upgrades the video, audio, and connection capabilities, offering up to lossless video for a stunning, efficient stream.


  12X Optical Zoom.
  Adapt Quickly.
  The PTZ310UNV2’s 12X optical zoom camera, combined with its agile auto-focus, gives every participant the chance to be seen with excellent clarity. Never miss a spectacular moment, no matter how small.


  4K Ultra HD Resolution.
  Breathtaking
  The 4K Ultra HD resolution of the PTZ310UNV2 makes every stream impressively clear, thanks to the industry-leading Sony sensor. This excellent image processor is able to automatically adjust video – ensuring great looking scenes no matter the situation or distance.


  4K 60 FPS.
  HDMI, USB & IP
  Recognized by Newtek, the PTZ310UNV2 features true 4K 60 fps streaming via HDMI, USB, and IP outputs. No annoying settings or messy cords, you can use multiple devices at the same time through the easier and smoother video streaming process.

  SmartShoot.
  People and Content in Focus.
  SmartShoot provides real-time Human Detection, which allows the camera to move automatically and smoothly between 4 preset zones without any manual operation. The PTZ310UNV2 quickly switches between shooting zones by focusing on a presenter, consistently delivering a clear image of people and their content.


  Hardware Specifications

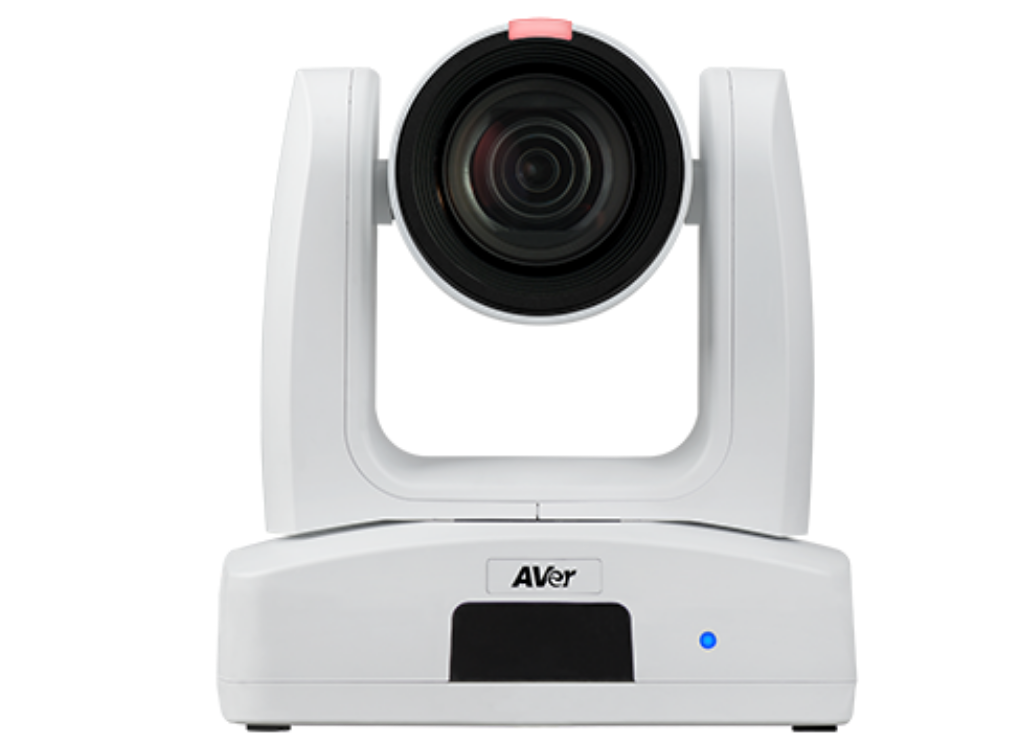

  Front

  1. Tally Lamp
  2. IR Sensor
  3. LED Indicator

  Side

  1. IR Sensor
  2. Kensington Slot

  Back

  1. PoE+
  2. RS-232
  3. RS-422
  4. USB 3.1 Gen 1 (Type-B)
  5. Line In
  6. HDMI
  7. 3G-SDI
  8. DC 12V

• Category	Specification
  Camera
  Image Sensor	1/2.8” 4K Exmor CMOS
  Effective Picture Elements	8 Megapixels
  Output Resolutions	4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  Minimum Illumination	0.46 lux (IRE50, F1.6, 30fps)
  S/N Ratio	≥ 50 dB
  Gain	Auto, Manual
  TV Lines	1600 (Center/Wide)
  Shutter Speed	1/1 to 1/32,000 sec
  Exposure Control	Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  White Balance	Auto, Manual, ATW, One Push
  Optical Zoom	12X
  Digital Zoom	12X
  Total Zoom	144X
  Viewing Angles	DFOV: 80.6° (Wide) to 7.7° (Tele); HFOV: 72.8° (Wide) to 6.7° (Tele); VFOV: 44.1° (Wide) to 3.8° (Tele)
  Focal Length	f = 3.9 mm (Wide) to 46.8 mm (Tele)
  Aperture (Iris)	F = 1.6 (Wide) to 2.8 (Tele)
  Minimum Working Distance	0.3 m (Wide); 1.5 m (Tele)
  Pan / Tilt Angles	Pan: ±170°; Tilt: +90° / -30°
  Pan / Tilt Speed (Manual)	Pan: 0.1° to 100° / sec; Tilt: 0.1° to 100° / sec
  Preset Speed	Pan: 200° / sec; Tilt: 200° / sec
  Preset Positions	10 (IR); 256 (RS-232, RS-422, IP)
  Camera Control – Interfaces	RS-232 (DIN8); RS-422 (RJ45); IP
  Camera Control – Protocols	VISCA (RS-232 / RS-422 / IP); PELCO-D & PELCO-P (RS-232 / RS-422); CGI (IP); ONVIF
  Image Processing	Noise Reduction (2D / 3D); Flip; Mirror
  Power Frequencies	50 Hz, 60 Hz
  AI Function Mode	SmartShoot
  Audio
  Channels	2ch Stereo
  Codecs	AAC-LC
  Interface
  Video Outputs	3G-SDI, HDMI, IP, USB
  Audio Outputs	3G-SDI, HDMI, IP, USB
  Audio Inputs	MIC in, Line in
  General
  Power Requirement	AC 100 – 240V to DC 12V/2A
  Power Consumption	19W
  PoE	PoE+
  Dimensions (W x H x D)	180.0 x 192.0 x 145.0 mm
  Net Weight	2.0 (±0.1) kg
  Application	Indoor
  Tally Lamp	Yes
  Security	Kensington Slot
  Remote Control	Infrared
  Operating Conditions	Temperature: 0 °C to +40 °C; Humidity: 20% to 80%
  Storage Conditions	Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
  IP Streaming
  Resolution	4K 60fps
  Network Video Compress Formats	H.264, H.265, MJPEG
  Maximum Frame Rate	4K 60fps
  Bit-Rate Control Modes	VBR, CBR (selectable)
  Range of Bit-Rate Setting	512 Kbps to 120 Mbps
  Network Interface	10 / 100 / 1000 Base-T
  Multi-Stream Capability	5
  Streaming Capabilities	4K 60fps: RTSP, HDMI, USB & NDI® HX; 1080p 60fps: 3G-SDI
  Network Protocols	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP/RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  NDI®	HX3
  NDI® Genlock	Yes (available in Q2)
  USB
  Connector	USB 3.1
  Video Formats	MJPEG, YUY2
  Maximum Video Resolution	2160p
  USB Video Class (UVC)	UVC 1.1
  USB Audio Class (UAC)	UAC 1.0
  Web UI
  Live Video Preview	Yes
  Camera PTZ Control	Pan, Tilt, Zoom, Focus, Preset Control
  Camera / Image Adjustment	Exposure, White Balance, Picture
  Network Configuration	DHCP, IP Address, Gateway, Subnet Mask, DNS
  Software Tools	IP Search and Configuration Tool
  PTZ Management	Support Windows® 7 or later
  PTZ Control Panel	Supports iOS & iPadOS® 11 or later
  PTZ Link	Supports Windows® 7 or later, macOS® 10.14 or later
  OBS Plugin for PTZ Cameras	Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  CaptureShare	Supports Windows® 7 or later, macOS® 10.14 or later
  Warranty
  Camera	5 Years
  Accessories	1 Year
  Package Contents
  Accessories	Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  Optional Accessories	AVer CL01 PTZ Camera Controller, L-Type Wall Mount
