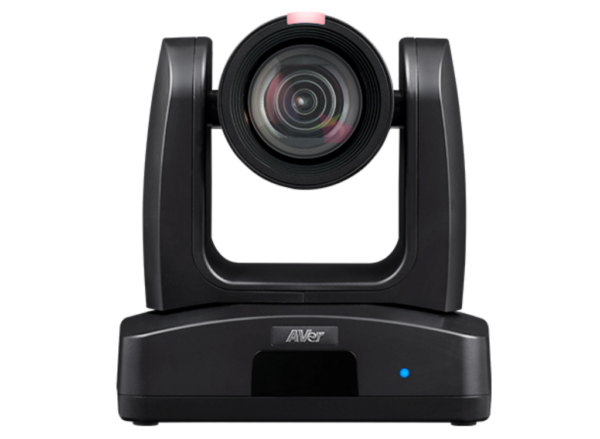

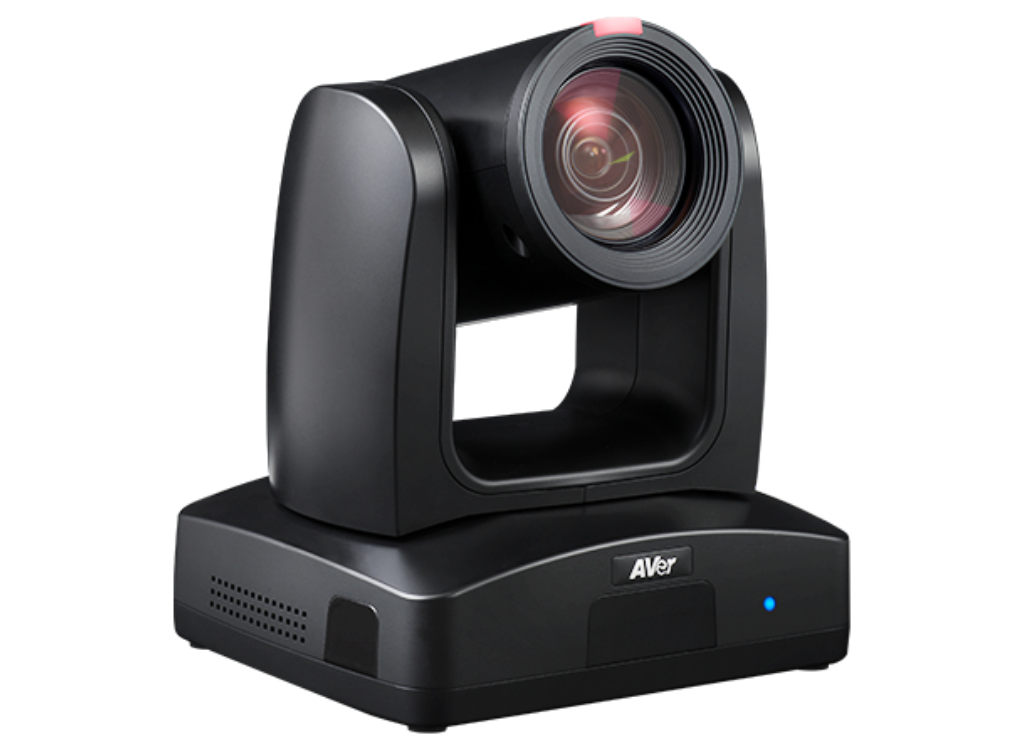

• AVer PTC310UV2 8Mp 12X Optical Zoom AI Auto Tracking PTZ Cameras

  AI Auto Tracking PTZ Camera
  The PTC310UV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310UV2 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!


  Upgrade Your Cameras to NDI®!
  Upgrade your AVer cameras with NDI®|HX. A separate NDI®|HX license key is required for each camera, and internet connection is required for initial activation.


  4K Output Resolution
  Equipped with 4K resolution, the PTC310UV2 provides ultra-precise auto tracking. The PTC310UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.


  12X Optical Zoom & 12X Digital Zoom
  The zoom power of PTC310UV2 camera reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310UV2.


  Human Detection AI
  Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables PTC310UV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.


  Click & Track
  With the PTC310HWV2, you can simply click on a target to quickly adjust the shooting angle and initiate precise tracking, ensuring you can redirect in an instant. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.

  Presenter Mode
  Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.


  Zone Mode
  Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.


  Hybrid Mode
  Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.

• Category	Specification
  Camera
  Image Sensor	1/2.8′ 4K Exmor CMOS
  Effective Picture Elements	8 Megapixels
  Output Resolutions	4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  Minimum Illumination	0.5 lux (IRE50, F1.6, 30fps)
  S/N Ratio	≥ 50dB
  Gain	Auto, Manual
  TV Lines	1400 (Center/Wide)
  Shutter Speed	1/1 to 1/32,000 sec
  Exposure Control	Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  White Balance	Auto, Manual, ATW, One Push
  Optical Zoom	12X
  Digital Zoom	12X
  Total Zoom	144X
  Viewing Angles	DFOV: 78° (Wide) to 7° (Tele); HFOV: 70° (Wide) to 6° (Tele); VFOV: 42° (Wide) to 3° (Tele)
  Focal Length	f = 3.9 mm (Wide) to 46.8 mm (Tele)
  Aperture (Iris)	F = 1.6 (Wide) to 2.8 (Tele)
  Minimum Working Distance	0.3 m (Wide), 1.5 m (Tele)
  Pan / Tilt Angles	Pan: ±170°, Tilt: +90° / -30°
  Pan / Tilt Speed (Manual)	Pan: 0.1° to 100° /sec, Tilt: 0.1° to 100° /sec
  Preset Speed	Pan: 200° /sec, Tilt: 200° /sec
  Preset Positions	10 (IR), 255 (RS-232, RS-422, IP)
  Camera Control – Interfaces	RS-232 (DIN8), RS-422 (RJ45), IP
  Camera Control – Protocols	VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
  Image Processing	Noise Reduction (2D / 3D), Flip, Mirror
  Power Frequencies	50Hz, 60Hz
  AI Auto Tracking Functions
  Tracking Modes	Presenter Mode, Zone Mode, Hybrid Mode
  Privacy Protection Mechanism	Protection Mode, Sleep Mode
  Audio
  Channels	2ch Stereo
  Codecs	AAC-LC, PCM
  Interface
  Video Outputs	3G-SDI, HDMI, IP, USB
  Audio Outputs	3G-SDI, HDMI, IP, USB
  Audio Inputs	MIC in, Line in
  General
  Power Requirement	AC 100 – 240V to DC 12V/5A
  Power Consumption	19W
  PoE	PoE+
  Dimensions (W x H x D)	180.0 x 192.0 x 145.0 mm
  Net Weight	2.0 (±0.1) kg
  Application	Indoor
  Tally Lamp	Yes
  Security	Kensington Slot
  Remote Control	Infrared
  Operating Conditions	Temperature: 0°C to +40°C ; Humidity: 20% to 80%
  Storage Conditions	Temperature: -20°C to +60°C ; Humidity: 20% to 95%
  IP Streaming
  Resolution	4K 30fps
  Network Video Compress Formats	H.264, H.265, MJPEG
  Maximum Frame Rate	4K 30fps
  Bit-rate Control Modes	VBR, CBR (selectable)
  Range of Bit-Rate Setting	512 Kbps to 32 Mbps
  Network Interface	10 / 100 / 1000 Base-T
  Multi-Stream Capability	2 (RTSP / Web Page), 4K 30fps (max.)
  Network Protocols	IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
  **NDI®	HX Capability**
  USB
  Connector	USB 3.1
  Video Formats	MJPEG, YUY2
  Maximum Video Resolution	2160p
  USB Video Class	UVC1.1
  USB Audio Class	UAC1.0
  Web UI
  Live Video Preview	Yes
  Camera PTZ Control	Pan, Tilt, Zoom, Focus, Preset Control
  Camera / Image Adjustment	Exposure, White Balance, Picture
  Network Configuration	DHCP, IP Address, Gateway, Subnet Mask, DNS
  Software Tools	IP Search & Configuration Tool
  Support Windows® 7 or later	Yes
  PTZ Management	Support Windows® 7 or later
  PTZ Control Panel	Supports iOS & iPadOS® 11 or later
  PTZ Link	Support Windows® 7 or later, macOS® 10.14 or later
  OBS Plugin for PTZ Cameras	Support Windows® 8 or later, macOS® High Sierra v10.13 or later
  CaptureShare	Support Windows® 7 or later, macOS® 10.14 or later
  Warranty
  Camera	5 Years
  Accessories	1 Year
  Package Contents
  	Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4′-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  Optional Accessories	AVer CL01 PTZ Camera Controller, L-Type Wall Mount
