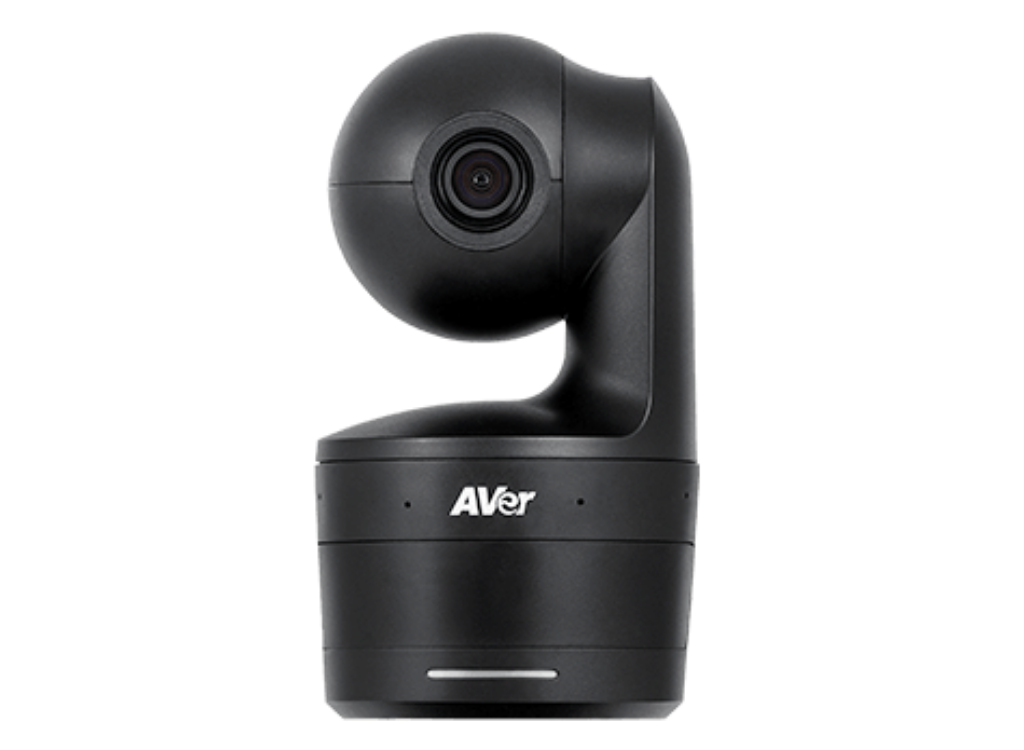

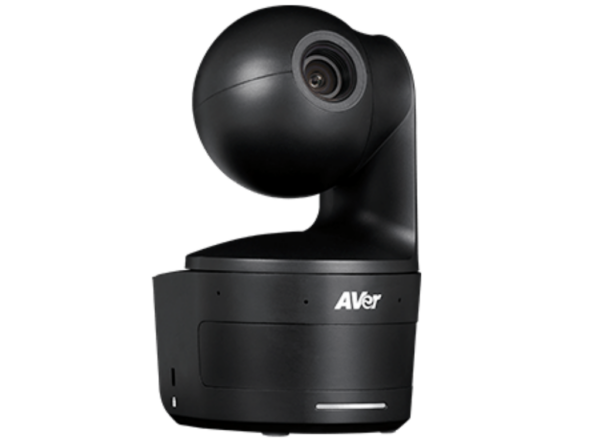

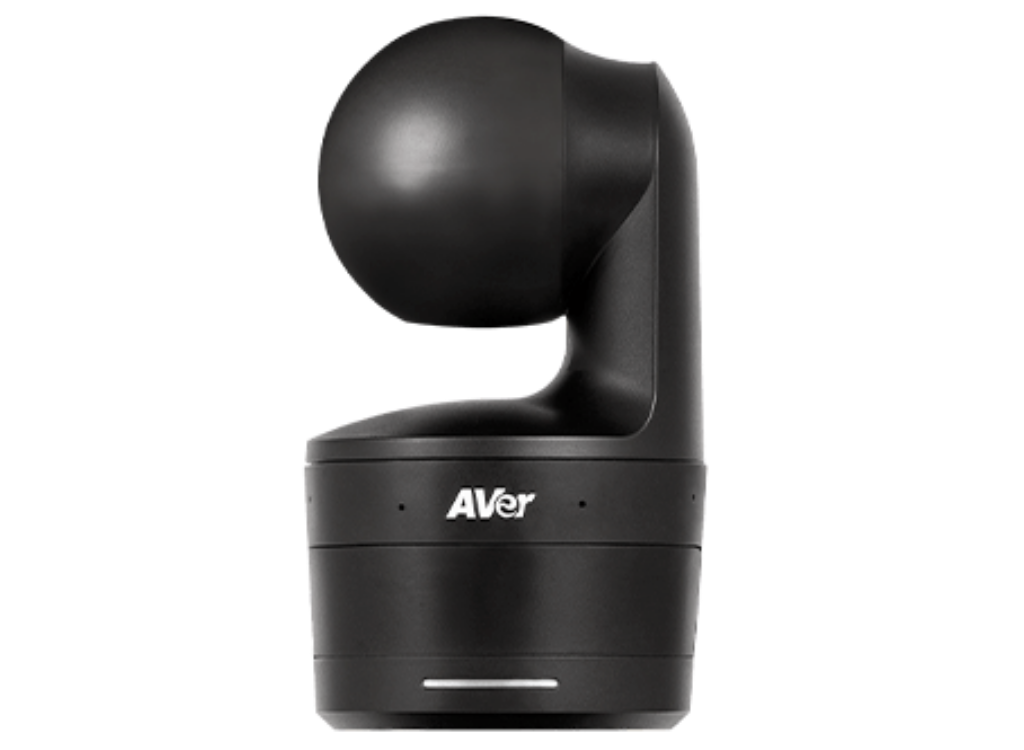

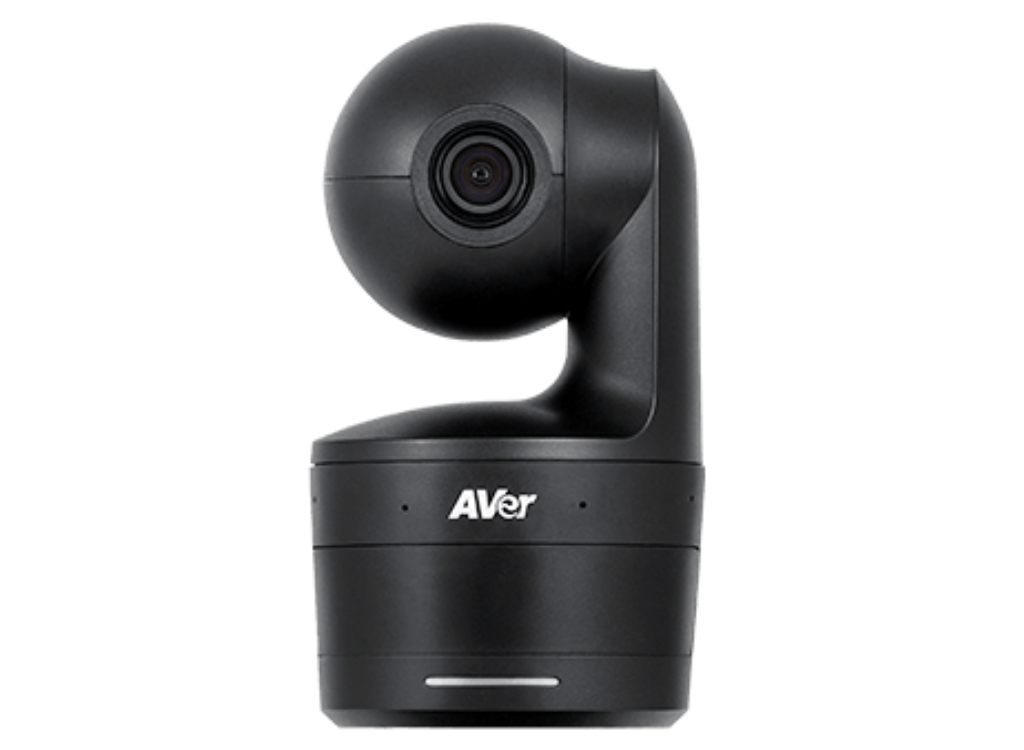

AVer DL10 2MP 1080p Distance Learning Tracking Camera | Track Further, Learn Bigger

• Description
• Specifications
• Downloads

• AVer DL10 2MP 1080p Distance Learning Tracking Camera | Track Further, Learn Bigger

  Distance Learning Tracking Camera
  Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10’s three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher’s speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.


  Light-Weight & Portable
  The DL10 weighs only 760g, giving teachers freedom to take work anywhere – just place the DL10 directly on the desk or on the included tripod. USB plug-and-play functionality allows teachers to start distance teaching anytime, anywhere.

  AI Auto Tracking
  Equipped with industry leading AI auto-tracking algorithms, the DL10 can share the teacher’s every move with the students. The DL10’s AI does all the tracking work, without requiring any annoying add-on sensors or devices. Never worry about walking out of the frame or going out of focus again, remote students can see you on the screen wherever you go.

  Balanced Zoom Ratio
  With budget in mind for schools, the DL10 is the perfect solution: 3X optical zoom delivers clear details, and 6X total zoom ratio is perfect for online or hybrid teaching in any standard K-12 classroom or at home.

  Noise Suppression Microphones
  The DL10’s built in advanced noise suppression technology detects the teacher’s speech while decreasing environmental noises such as keyboards, mouses, and books, delivers clearer sound quality for an excellent audio visual experience.


  Sleep Mode for Privacy
  Simply turn off your laptop or the software when you finish teaching, and the DL10 will go to Sleep Mode and switch off all functionality within 10 seconds. When it’s time to start teaching again, the DL10 will resume right where you left off with tracking and other settings unchanged. The DL10 makes privacy protection the way it should be: easy.

  Innovative Gesture Controls
  Gesture control allows the teacher to use intuitive gestures to turn on and off tracking, adjust shooting angles for bodies, etc. without touching the screen or using the keyboard, mouse, or remote control.

• Category	Specification
  Camera
  Image Sensor	1/2.8″ 1080p Low Lux CMOS
  Effective Picture Elements	2 Megapixels
  Output Resolutions	1080p/60 (IP Streaming & USB)
  Minimum Illumination	0.5 Lux (IRE50, F2.0, 30fps)
  S/N Ratio	≥ 50 dB
  Gain	Auto, Manual
  TV Lines	800 (Center/Wide)
  Shutter Speed	1/4 to 1/10,000 sec (60 Hz), 1/3 to 1/10,000 sec (50 Hz)
  Exposure Control	Auto, Manual, WDR
  WDR	Yes
  White Balance	Auto, Manual
  Optical Zoom	3X
  Digital Zoom	2X
  Viewing Angles	DFOV: 90° (Wide) to 35.8° (Tele) <br> HFOV: 82° (Wide) to 31.7° (Tele) <br> VFOV: 51° (Wide) to 17.9° (Tele)
  Focal Length	f = 3.3 mm (Wide) to 9.7 mm (Tele)
  Aperture (Iris)	F = 2.0 (Wide) to 3.7 (Tele)
  Minimum Working Distance	0.5 m (Wide), 1.0 m (Tele)
  Pan/Tilt Angles	Pan: ±170°, Tilt: ±90°
  Pan/Tilt Speed (Manual)	Pan: 1° to 100°/sec <br> Tilt: 10.8° to 100°/sec
  Preset Speed	Pan: 200°/sec <br> Tilt: 200°/sec
  Preset Positions	10 (IR), 256 (IP & USB)
  Camera Control – Interfaces	IP, USB
  Camera Control – Protocols	VISCA (IP), CGI (IP), USB
  Image Processing	Noise Reduction (2D/3D), Flip, Mirror, WDR
  Power Frequencies	50 Hz, 60 Hz
  AI Auto Tracking Functions	Tracking Modes: Presenter Mode, Zone Mode, Hybrid Mode <br> Gesture Control: Yes (Tracking On/Off, Full/Upper Body)
  Privacy Protection Mechanisms	Protection Modes: Privacy Mode, Sleep Mode
  Audio
  Channels	Line in: 2ch Stereo <br> Mic in: Mono
  Codecs	AAC-LC (48, 32, 16, 8K), PCM (48K)
  Sample Rates	48, 32, 16, 8 KHz
  Microphones	Built-in Microphones: 2 (Omnidirectional)
  Noise Suppression	Yes
  Pickup Range	5 m
  Sensitivity	-33 dBFS
  Frequency Response	30 Hz to 20 KHz
  Maximum SPL	129 dB SPL at 0.5 m
  Connectivity
  Video Outputs	IP, USB
  Audio Outputs	IP, USB
  Audio Inputs	Line in, Mic in
  General
  Power Requirement	AC 100 – 240V to DC 12V/2A
  Power Consumption	11W
  PoE+	N/A
  Dimensions (W x H x D)	92.4 x 164.0 x 94.4 mm
  Net Weight	0.76 kg
  Application	Indoor
  Tally Lamp	N/A
  Security	Kensington Slot
  Remote Control	Infrared
  Operating Conditions	Temperature: 0°C to 40°C <br> Humidity: 20% to 80%
  Storage Conditions	Temperature: -20°C to 60°C <br> Humidity: 20% to 95%
  IP Streaming
  Resolution	1080p 60fps
  Network Video Compress Formats	H.264, MJPEG (Web Page)
  Network Audio Compression Formats	AAC-LC
  Sample Rates	48, 32, 16, 8 KHz
  Maximum Frame Rate	1080p 60fps
  Bit-Rate Control Modes	VBR, CBR
  Bit-Rate Range Setting	512 Kbps to 32 Mbps
  Network Interface	10/100 Base-T
  Multi-Stream Capability	2 (1 for IP Streaming, 1 for Web Page), 1080p 60fps (max.) <br> 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
  Network Protocols	IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP
  NDI®	HX Capability
  USB
  Connector	USB 3.1 Gen 1 Type-B
  Video Formats	MJPEG, YUY2
  Maximum Video Resolution	1080p
  USB Video Class (UVC)	UVC 1.1
  USB Audio Class (UAC)	UAC 1.0
  Web UI	Live Video Preview: Yes <br> Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control <br> Camera/Image Adjustment: Exposure, White Balance, Picture <br> Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
  Software Tools	IP Search and Configuration Tool <br> PTZ Management <br> PTZ Control Panel <br> OBS Plugin for PTZ Cameras <br> CaptureShare
  Warranty	Camera: 3 Years <br> Accessories: 1 Year
  Package Contents	Camera, Remote Control, Power Adapter, Power Cord, USB Cable, Cable Ties (x3), Cable Fixing Plate, M2 x 4mm Screws (x2), 1/4′-20L 7.5mm Screw (x1), Quick Start Guide
  Optional Accessories	[Not Provided]
