• AVer CL01 PTZ Camera Controller For Education, Conferencing, Telemedicine, Livestreaming

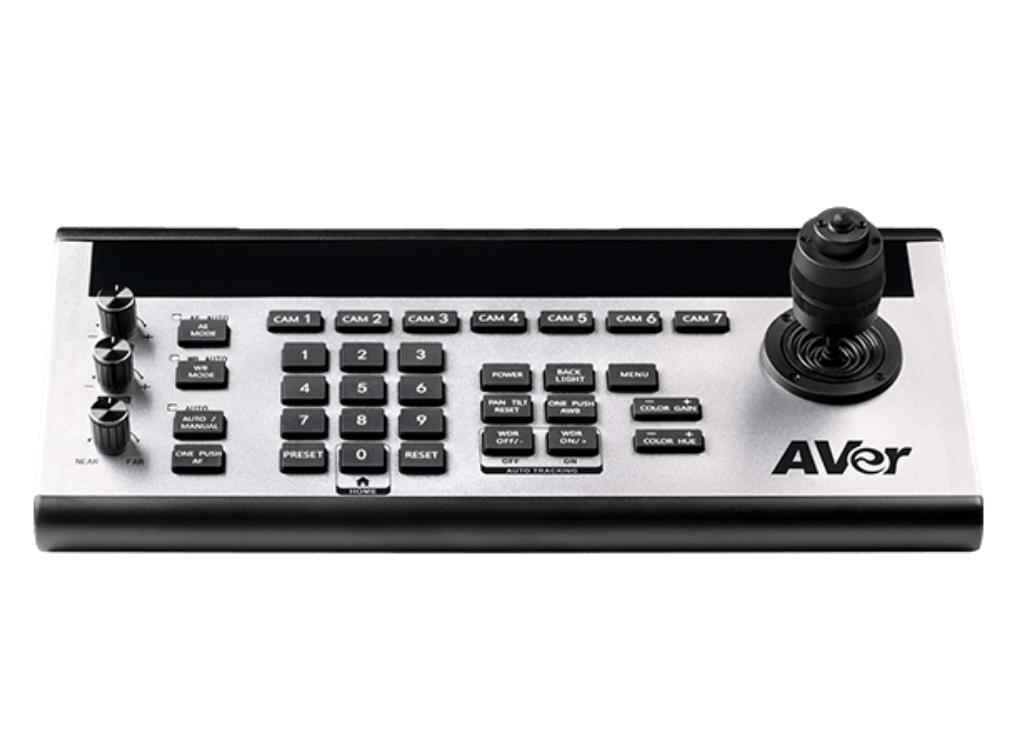

  PTZ Camera Controller
  The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.


  Hardware Appearance

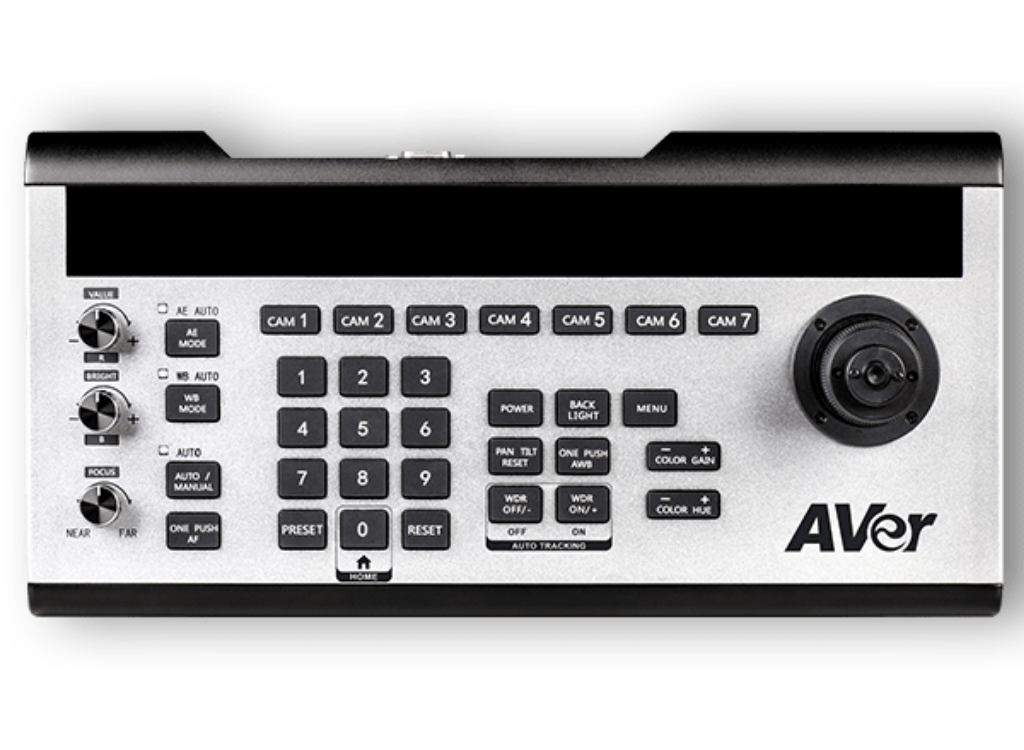

  Front Panel

  1. Rotation Button
  2. Joystick
  3. OLED display screen

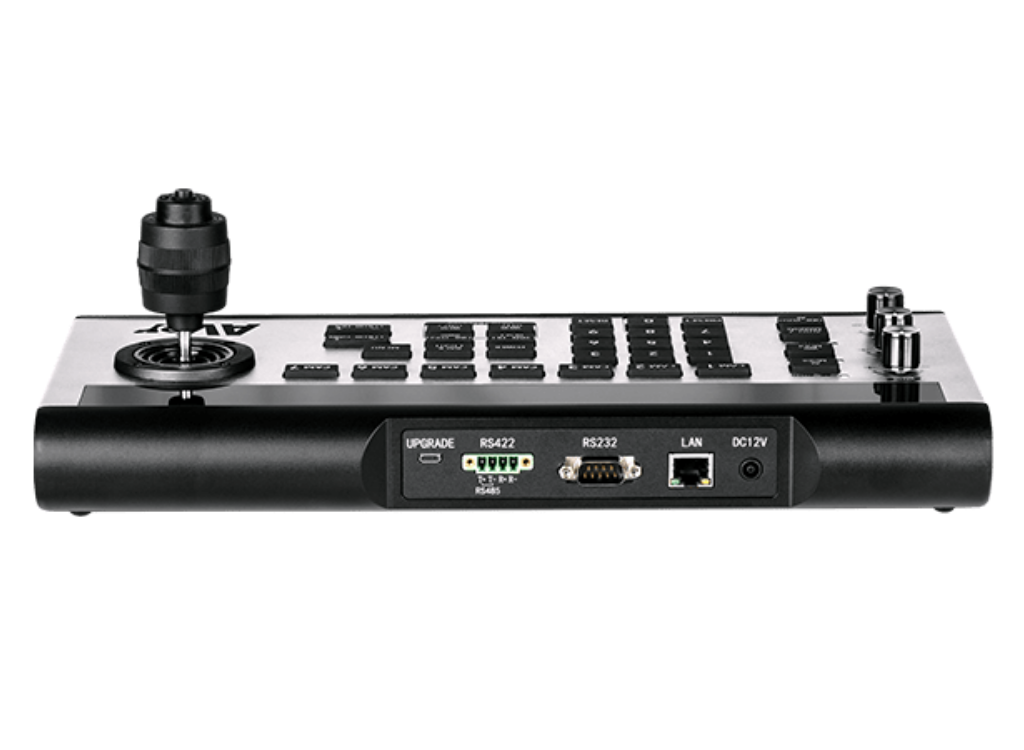

  Back Panel

  1. Micro USB
  2. RS-422
  3. RS-232
  4. RJ45
  5. DC 12V

• Category	Feature	Details
  I/O Interface	Communication	RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades
  Baud Rate		2400, 4800, 9600, 19200, 38400 bps
  User Interface	Display	OLED display screen
  	Camera Shortcut Channel	7
  	Rotation Button	3
  	Joystick	1
  Camera Control	IP Address	Default: 192.168.1.162 /163 /164 /165 /166 /167 /168 (from Cam 1 to Cam 7)
  	UDP Port	08090
  	Cam ID	1 to 7 and more (255* max.)
  	Control Protocol	VISCA, SONY VISCA, Pelco D/P, UDP, IP (VISCA over IP)
  System	Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
  	Dimensions	173 mm (W) x 99 mm (H) x 350 mm (D)
  	Net Weight	2.5 kg
  	Power Source	DC 12V/2A, AC 100 – 240V
  	Power Consumption	24 W
  	Application	Indoor
  Warranty	Duration	3 years
  Package Content		User manual, 4-pin RS485 terminal, power adapter
